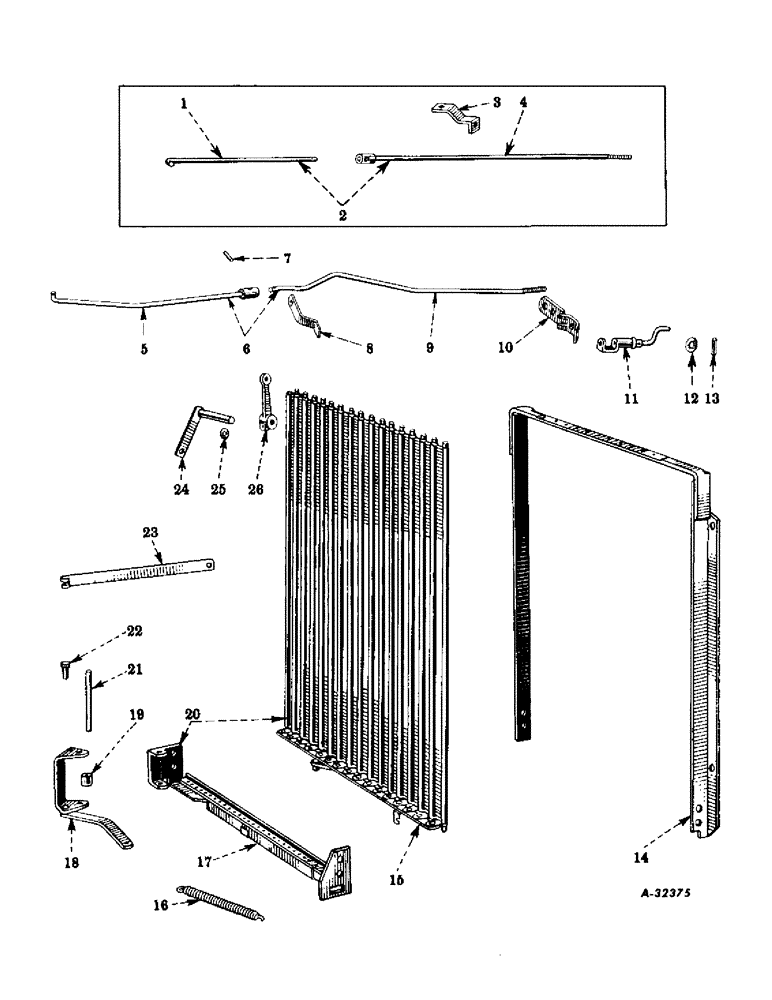

Запчасти Case IH SUPER-H (084) - CHASSIS, RADIATOR SHUTTER AND CONTROLS (12) - CHASSIS

NSS

NOT SOLD SEPARAT

ATTACHMENT, distillate or kerosene (Standard Equipment) (Gasoline - Special)

1шт.

61897DA

ATTACHMENT, radiator shutter (Gasoline) (For Tractors, Serial Range: 501-19233)

1шт.

359592R91

ATTACHMENT, radiator shutter (Gasoline) (For Tractors 19234 up)

1шт.

48820D

SHUTTER, radiator, assembly (Hardy Mfg. Corp.) (Mfr's. No. 16310) (Composed of -

1шт.

51623D

BAR

1шт.

51620D

BELLCRANK

1шт.

13000R1

NUT

4шт.

51619D

PIN

1шт.

112526

PIN

2шт.

114337

SCREW

4шт.

51621D

SHUTTER

1шт.

55328D

SPACER

1шт.

37730D

SPRING

1шт.

51618D

TIE BAR

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

56095DX

ROD, radiator shutter control, rear (Front section), w/Pin, 142485 (For Tractors, Serial Range: 501-19233)

1шт.

2

60838DR

ROD, radiator shutter control, rear, w/front Section, and rear Section, 60839DX (For Tractors, Serial Range: 501-19233)

1шт.

218437

NUT, jam, hex., 5/16-18NC

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

3

51809D

SUPPORT, radiator shutter control rear rod (For Tractors, Serial Range: 501-19233)

1шт.

13000R1

NUT, hex., 1/4-20NC

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

60839DX

ROD, radiator shutter control, rear (Rear section), w/Coupling, and Pin, 142485 (For Tractors, Serial Range: 501-19233)

1шт.

5

359643R11

ROD, radiator shutter control, rear (Front section), w/Coupling, and Pin, 142485 (For Tractors 19234 up)

1шт.

6

360227R91

ROD, radiator shutter control, rear, w/front Section, 359643R11, and rear Section, 359645R1 (For Tractors 19234 up)

1шт.

218437

NUT, jam, hex., 5/16-18NC

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

7

142485

GROOVED PIN,1/8" x 5/8", Type A

PIN, Grooved, , radiator shutter control rod, rear, coupling 1/8" x 5/8", Type A

1шт.

8

359641R1

BRACKET, front, radiator shutter control rod (For Tractors 19234 up)

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

359645R1

ROD, radiator shutter control, rear (Rear section) (For Tractors 19234 up)

1шт.

10

56682D

BRACKET, rear, radiator shutter control rod rear (Rear section) (For Tractors 19234 up)

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

11

6851DB

CRANK, radiator shutter control (Optional with 351841R21)

1шт.

11

351841R21

CRANK, radiator shutter control (Optional with 6851DB)

1шт.

12

58264D

COLLAR, radiator shutter control crank

1шт.

13

9196T

PIN, radiator shutter control crank collar

1шт.

14

51623D

FRAME AND BEARING BAR (Mfr's. No. 17252)

1шт.

15

51621D

SHUTTER, w/operating Bar (Mfr's. No. 17250)

1шт.

16

37730D

SPRING, bellcrank and operating link (Mfr's. No. 3173)

1шт.

17

51618D

TIE BAR, bottom, and bearing Bar (Mfr's. No. 17254)

1шт.

13000R1

NUT, hex., 1/4-20NC

4шт.

114337

SCREW, machine, slotted-rd-hd., 1/4-20NC x 1/2"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

18

51620D

BELLCRANK, w/Link (Mfr's. No. 16363)

1шт.

19

55328D

SPACER, bellcrank pin (Mfr's. No. 16326)

1шт.

20

51622D

UNIT, shutter, assembly (Mfr's. No. 16366) (Composed of -

1шт.

51623D

FRAME

1шт.

13000R1

NUT

4шт.

114337

SCREW

4шт.

51621D

SHUTTER

1шт.

51618D

TIE BAR

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21

51619D

PIN, bellcrank and link (Mfr's. No. 16324)

1шт.

112526

PIN, cotter, 1/16 x 3/8"

2шт.

22

53055D

CLEVIS PIN,1/4" x 1"

PIN, radiator shutter control rod, front

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16 x 1/2"

1шт.

95-11028

WASHER,1/4"

plain, 9/32" I.D. x 5/8" O.D. x No. 16 ga.

1шт.

23

48864D

ROD, radiator shutter control, front

1шт.

24

353762R91

ARM, radiator shutter control bellcrank, lower, w/Pin, W6185 and Pin, 107763

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

W6185

PIN, radiator shutter lower bellcrank arm

1шт.

25

48869D

KEY, radiator shutter control bellcrank lever arm

1шт.

26

6739D

ARM, radiator shutter control bellcrank lever, upper (Optional with 351843R2 or 350152R1)

1шт.

26

351843R2

ARM, radiator shutter control bellcrank lever, upper (Optional with 6739D or 350152R1)

1шт.

26

350152R1

ARM, radiator shutter control bellcrank lever, upper (Optional with 6739D or 351843R2)

1шт.

13000R1

NUT, hex., 1/4-20NC

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
