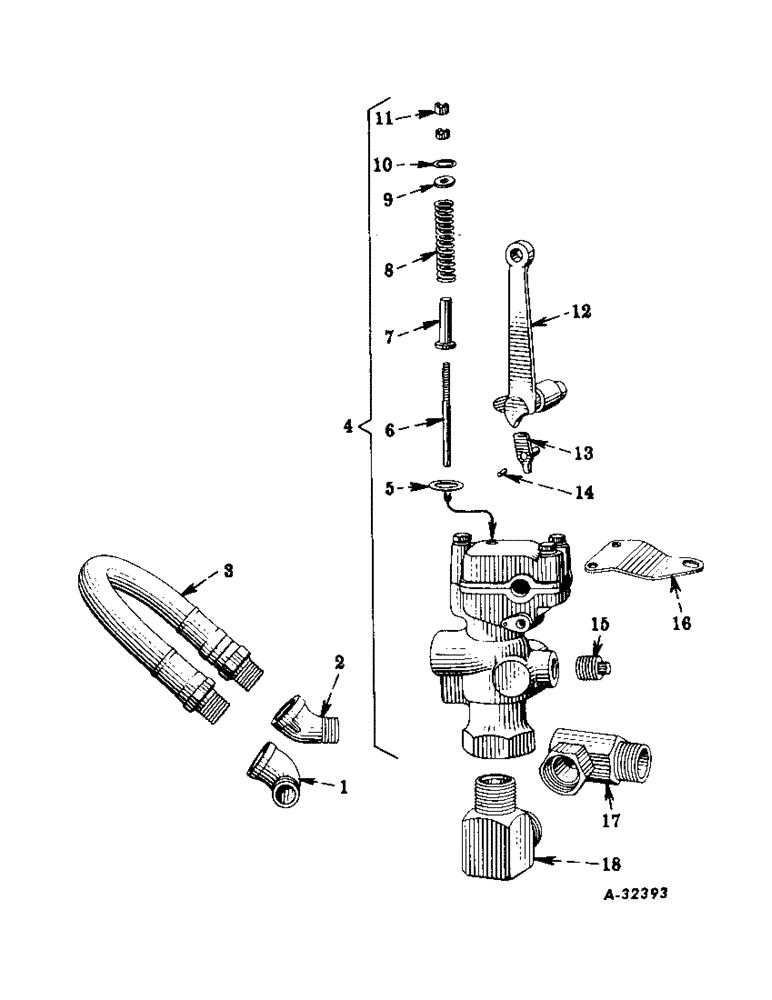

Запчасти Case IH SUPER-H (194) - HYDRAULIC SYSTEM, REMOTE CONTROL TRACTOR ATTACHMENT, SPECIAL, AUXILIARY CONTROL VALVE & CONNECTIONS (07) - HYDRAULIC SYSTEM

1

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

street, 90 degrees, 1/2" (Auxiliary control valve)

1шт.

2

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

street, 45 degrees, 1/2" (Hydraulic reservoir)

1шт.

3

360448R91

HOSE

pressure, auxiliary control valve

1шт.

4

353097R93

VALVE, auxiliary control, assembly (Composed of -

1шт.

352196R3

BODY (NSS)

1шт.

352208R3

COVER (NSS)

1шт.

352210R11

LATCH

1шт.

353098R92

LEVER

1шт.

352202R1

LOCK

1шт.

220064

NUT

1шт.

142492

PIN,5/32" x 5/8", Type A

Grooved, 5/32" x 5/8", Type A

1шт.

103874

VALVE SPRING

PLUG

1шт.

352200R12

ROD

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

3шт.

352024R1

SEAL

1шт.

352198R1

SLEEVE

1шт.

352203R1

SPACER

2шт.

352199R1

SPRING

1шт.

352197R1

VALVE (NSS)

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

352201R2

WASHER

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

352024R1

SEAL

auxiliary control valve

1шт.

6

352200R12

ROD, auxiliary control valve centering spring

1шт.

220064

NUT

hex., 1/4-20NC

1шт.

7

352198R1

SLEEVE, auxiliary control valve centering spring

1шт.

8

352199R1

SPRING

centering, auxiliary control valve

1шт.

9

352201R2

WASHER, control valve centering spring

1шт.

10

352202R1

LOCK, control valve centering spring

1шт.

11

352203R1

SPACER, control valve centering spring

2шт.

12

353098R92

LEVER, shaft and yoke, control valve

1шт.

13

352210R11

LATCH, hand lever, w/shaft

1шт.

14

142492

PIN,5/32" x 5/8", Type A

Grooved, , hand lever latch, stop 5/32" x 5/8", Type A

1шт.

15

103874

VALVE SPRING

PLUG, pipe, C.I., csk-hd., 1/2" (Optional with 116566)

1шт.

15

116566

PLUG

pipe, S., csk-hd., 1/2" (Optional with 103874)

1шт.

16

359530R1

SUPPORT, auxiliary control rod valve

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

1шт.

17

359528R91

UNION, male adapter, 1" (90 degrees)

1шт.

18

359529R1

ELBOW, male, 1"

1шт.
