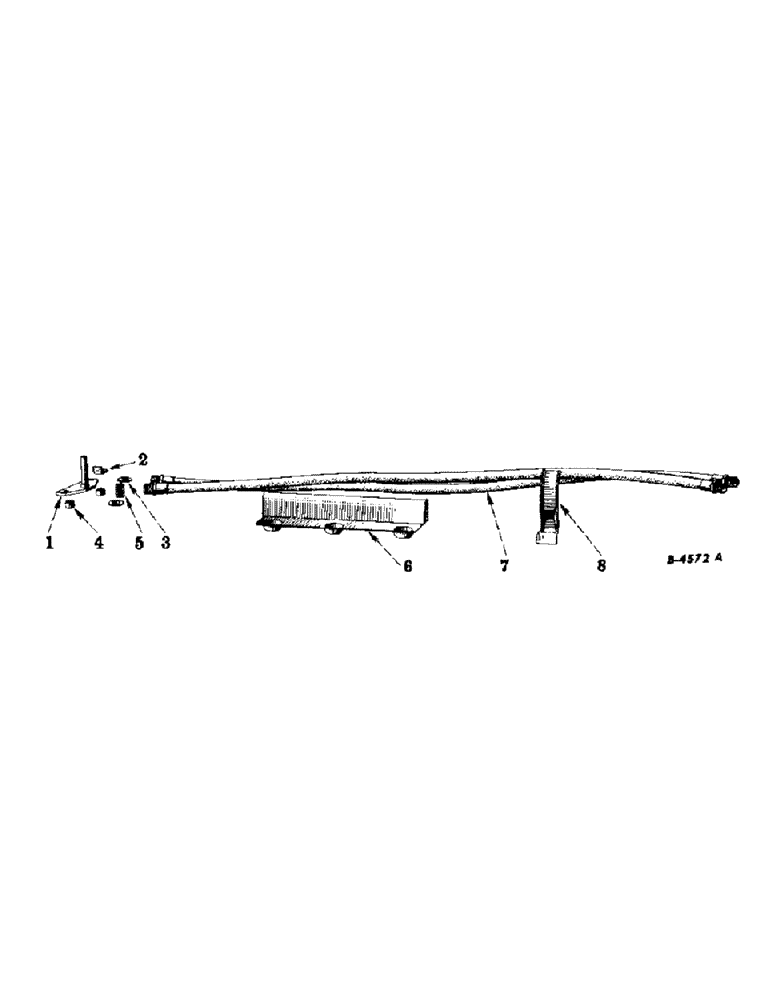

Запчасти Case IH SUPER-H (190) - HYDRAULIC SYSTEM, SPECIAL, BREAK-AWAY COUPLING BRACKET, HOSES & GUIDES, TRACTORS 501 TO 19233 (07) - HYDRAULIC SYSTEM

1

353208R91

BRACKET, break-away coupling

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

2шт.

19849H

WASHER, plain, 33/64" I.D. x 1-3/8" O.D. x no. 11 ga.

3шт.

2

353211R1

STOP, break-away coupling

1шт.

3

19849H

Follows Ref.# 1

1шт.

4

353212R1

SPACER, break-away coupling bracket

2шт.

5

353213R2

SPRING

break-away coupling bracket

1шт.

6

353113R1

SHIELD, control valve hose

1шт.

7

354039R91

HOSE, valve to coupling, 3/8" I.D. x 47" long

2шт.

8

352337R1

BRACKET, control valve hose

1шт.
