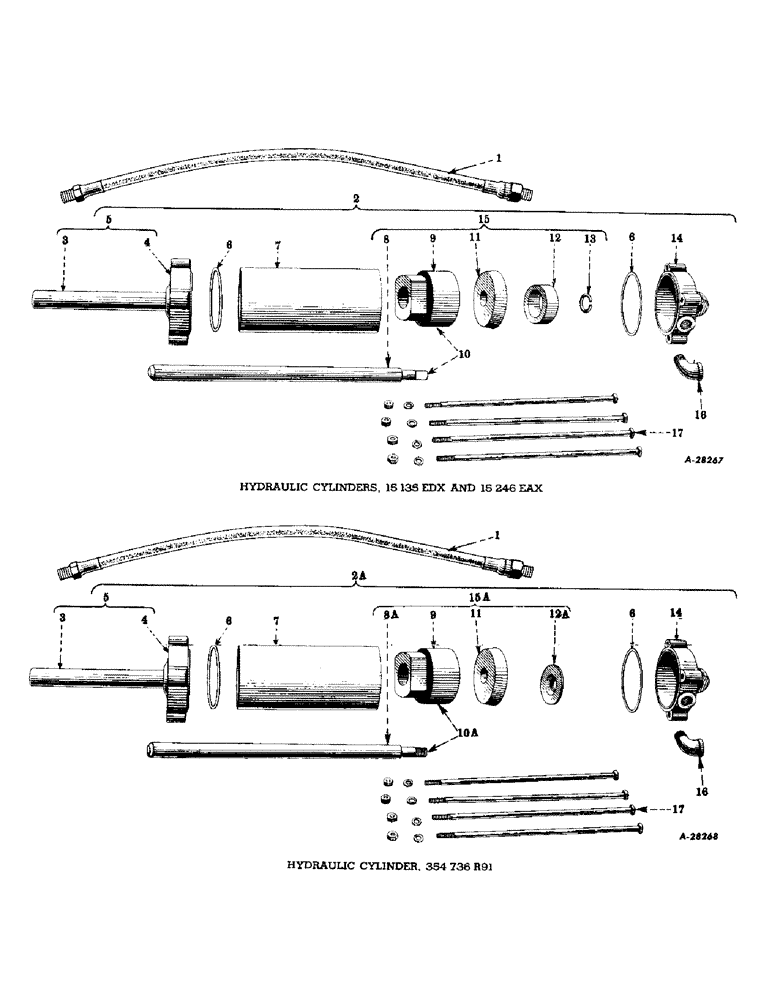

Запчасти Case IH SUPER-H (182) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

15093ECX

CYLINDER, 2-1/4 x 8", assembly

1шт.

15262EAX

CYLINDER, 1-3/4 x 8" assembly

1шт.

354735R91

CYLINDER, 3 x 8", assembly

1шт.

1

351130R92

HOSE, hydraulic (optional with 355209R91

1шт.

1

355209R91

HOSE, hydraulic (optional with 3511230R92

1шт.

2

15135EDX

CYLINDER, hydraulic, 2-1/4 x 8", assembly

1шт.

2

15246EAX

CYLINDER, hydraulic, 1-3/4 x 8", assembly

1шт.

2a

354736R91

CYLINDER, hydraulic 3 x 8", assembly

1шт.

3

15095EA

GUIDE

piston rod

1шт.

4

5035EA

HEAD, cylinder, front

1шт.

4

5039EA

HEAD, cylinder, front

1шт.

4

5066EB

HEAD, cylinder, front

1шт.

5

15139EAX

HEAD, cylinder, front, 5066EB w/guide,15095EA

1шт.

5

15140EAX

HEAD, cylinder, front, 5039EA w/guide, 15095EA

1шт.

5

15256EAX

HEAD, cylinder, front 5066EB w/guide, 15095EA

1шт.

6

15100EA

O-RING

GASKET, cylinder head

2шт.

6

15109EA

SHIM

GASKET, cylinder head

1шт.

6

15247EA

SHIM

GASKET, cylinder head

1шт.

7

15096E

SLEEVE, cylinder

1шт.

7

15107E

SLEEVE, cylinder

1шт.

7

15248E

SLEEVE

cylinder

1шт.

8

15379E

ROD, piston (order 15754EX)

1шт.

8

15379E

ROD, piston (order 15380EX)

1шт.

8a

354737R1

ROD, piston (order 354737R11)

1шт.

9

5113E

PISTON (order 15380EX)

1шт.

9

5192E

PISTON (order 15754EX)

1шт.

9

5193E

PISTON (order 354737R11

1шт.

10

15380EX

PISTON AND ROD

1шт.

10

15754EX

PISTON AND ROD

1шт.

10a

354737R11

PISTON AND ROD

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

11

15253E

CUP

piston

1шт.

11

15750E

CUP

piston

1шт.

11

15752E

CUP

piston

1шт.

12

15251E

RETAINER, Piston cup

1шт.

12

15749E

RETAINER, Piston cup

1шт.

12a

354738R1

RETAINER, Piston cup

1шт.

13

15254E

RING

snap (used with plain end piston rod)

1шт.

14

5036EA

HEAD, cylinder, rear

1шт.

14

5040E

HEAD, cylinder, rear

1шт.

14

5067E

HEAD, cylinder, rear

1шт.

15

495032R91

ROD, piston, assembly

1шт.

15

494033R91

ROD, piston, assembly

1шт.

15a

354757R91

ROD, piston, asswmbly

1шт.

16

108686

ELBOW,90 Degree, 1/2" NPT Street

street, 90 degrees, 1/2"

1шт.

17

13789R1

BOLT, machine, sq-hd., 3/8-16NC x 13-1/4"

4шт.

280136

NUT,3/8"-16, G8

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
