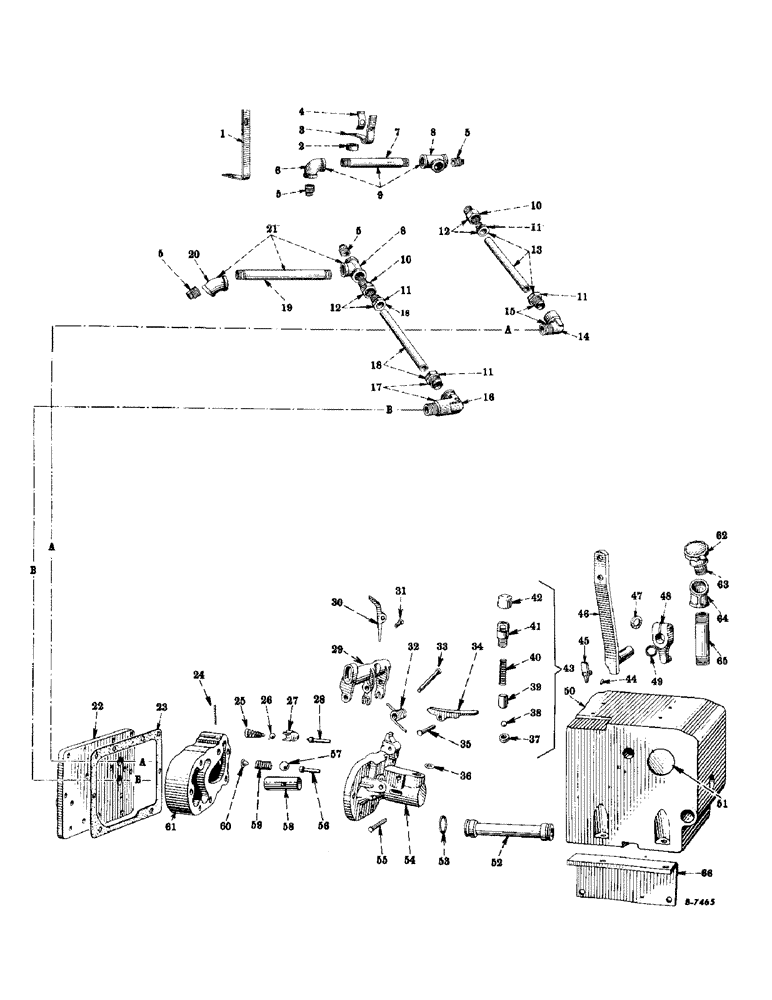

Запчасти Case IH SUPER-H (178) - HYDRAULIC LIFT-ALL ATTACHMENT, WITH ENGINE DRIVEN PUMP, SPECIAL,TRACTORS 19234 UP, RESERVOIR UNIT (07) - HYDRAULIC SYSTEM

359495R91

RESERVOIR, hydraulic-lift, assembly (Reference nos. 22 thru 61)

1шт.

1

359510R1

SUPPORT, cylinder junction (Tractors not equipped with belt pulley)

1шт.

2

41174D

SPACER, cylinder junction support (Tractors equipped with belt pulley)

1шт.

3

359509R1

SUPPORT, cylinder junction (Tractors equipped with belt pulley)

1шт.

16078R1

SCREW, cap, hex-hd., 7/16-14NC x 6-3/4"

1шт.

4

359511R1

CLAMP, cylinder junction

1шт.

220064

NUT

hex, 1/4-20NC

1шт.

443895

SCREW, slotted-hex-hd., 1/4-20NC x 1-1/4"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

4шт.

6

119098

ELBOW,90 Degree, 1/2" NPT

pipe, 1/2" (90 degrees) (Cylinder junction pipe, upper)

1шт.

7

190716

PIPE, 1/2 x 6" (Cylinder junction, upper)

1шт.

8

138105

TEE,1/2" NPT, Fem

cylinder junction pipe

2шт.

9

359512R91

PIPE, cylinder junction 190716, w/elbow, 119098 and tee, 138105, upper

1шт.

10

359519R1

CONNECTOR, back plate pressure tube

2шт.

11

360228R1

NUT

coupling, back plate pressure tube

4шт.

12

359519R11

CONNECTOR, back plate pressure tube, w/nut, 360228R1

2шт.

13

359517R11

TUBE, back plate pressure (Upper), w/two nuts, 360228R1

1шт.

14

359514R1

ELBOW, 90 degrees (Back plate pressure tube, upper)

1шт.

15

359514R11

ELBOW

90 degrees (Back plate pressure tube, w/nut, 360228R1)

1шт.

16

359515R1

ELBOW, 90 degrees (Back plate pressure tube, lower)

1шт.

17

359515R11

ELBOW, 90 degrees, back plate pressure tube, w/two nut, 360228R1

1шт.

18

359518R11

TUBE, back plate pressure (Lower), w/two nut, 360228R1

1шт.

19

443741

PIPE, 1/2" x 7-1/2" (Cylinder junction pipe, lower)

1шт.

20

119094

ELBOW, pipe, 1/2" (45 degrees) (Cylinder junction pipe, lower) 45º, 1/2" NPT

1шт.

21

359513R91

PIPE, cylinder junction, 443741, w/elbow, 119094 and tee, 138105, lower

1шт.

22

359497R1

PLATE, back, hydraulic-lift reservoir

1шт.

103874

VALVE SPRING

PLUG, pipe, sq-socket, 1/2"

1шт.

103876

PLUG, pipe, csk-hdls., 1"

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8"

7шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 2-3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

23

358448R1

GASKET

reservoir back plate

1шт.

24

15257E

SPRING

hydraulic-lift locking clip

1шт.

25

356684R1

SPRING

differential check valve

1шт.

26

16013R1

BALL

differential check valve

1шт.

27

356682R1

VALVE

differential check

1шт.

28

356683R1

PIN, lift, differential check valve

1шт.

29

5031EA

LEVER, cam and piston valve

1шт.

30

5020E

PLATE, cam

1шт.

31

15074E

PIN, slotted, cam plate, 5/16 x 1-1/2"

1шт.

32

15068EB

SPRING

cam and piston valve lever

1шт.

33

15086E

PIN, cam and piston valve lever, 3/8 x 6-3/4"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

34

5024EA

CLIP, locking

1шт.

35

PO14564

AXLE PIN

PIN, dld., 5/16 x 2-3/4"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

36

15259E

GASKET

relief valve

1шт.

37

358359R1

SEAT

ball pressure

1шт.

38

16013R1

BALL

stl., 13/32" dia.

1шт.

39

358358R1

SLEEVE

relief valve spring

1шт.

40

15258E

SPRING

relief valve

1шт.

41

358357R1

BODY, relief valve

1шт.

42

15063EB

CAP, relief valve

1шт.

43

358356R91

VALVE

relief, assembly

1шт.

44

142492

PIN,5/32" x 5/8", Type A

Grooved, , control lever latch, stop 5/32" x 5/8", Type A

1шт.

45

352210R11

LATCH, control lever

1шт.

46

359498R91

LEVER AND SHAFT, hydraulic-lift control

1шт.

47

15010E

KEY, control lever shaft

1шт.

48

5032E

LEVER, inner, control shaft

1шт.

NLS

NO LONGER SERVICED

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

49

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, control lever shaft

1шт.

50

358491R11

RESERVOIR, hydraulic lift, assembly (Composed of -

1шт.

103875

PLUG

2шт.

103876

PLUG

2шт.

172592

SUPPORT

1шт.

444860

KEY

2шт.

358491R1

RESERVOIR (NSS)

1шт.

60948D

SHAFT)

1шт.

220066

NUT, hex., 3/8-16NC

2шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd., 1/4"

1шт.

103875

PLUG, pipe, csk-hdls., 3/4"

2шт.

103876

PLUG, pipe, csk-hdls., 1"

2шт.

217-459

DRAIN PLUG,Sq Soc, 1/4" - 18 NPTF

pipe, csk-hdls., 1/4"

2шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

51

63556R1

PLUG

expansion, 2"

1шт.

52

358450R11

TUBE, high pressure passage, w/two retainers

1шт.

53

350818R1

O-RING,0.984" ID x 0.139" Width

RING, seal, high pressure passage tube retainer

2шт.

54

352429R1

COVER, hold-up ball valve body

1шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

7шт.

55

Q3533

HEADED PIN,5/16" x 3"

PIN, dld., 5/16 x 3"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q101

WASHER

plain, 5/16" I.D. x 3/4" O.D. x no. 18 ga.

2шт.

56

15066E

PIN, hold-up ball

1шт.

57

31408D

BALL

hold-up

1шт.

58

15061EA

PISTON

1шт.

59

15056E

SPRING

hold-up ball

1шт.

60

352783R1

STOP

hold-up ball

1шт.

61

358449R1

BODY, hold-up valve

1шт.

62

5047EX

CAP

breather

1шт.

63

192082

NIPPLE, pipe, cd-pltd., 3/4 x 1-1/2"

1шт.

64

144137

LEVER

ELBOW, pipe, cd-pltd., 3/4" (45 degrees)

1шт.

65

219661

BOLT

PIPE, filler 3/4 x 4"

1шт.

66

359505R1

BRACKET, reservoir support

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

57562D

FELT, clutch housing cover corner

4шт.

355382R1

FLUID, touch control, 1 qt.

1шт.

359450R1

FLUID

touch control, 1 gal.

1шт.

60948D

SHAFT, starting control hand lever

1шт.
