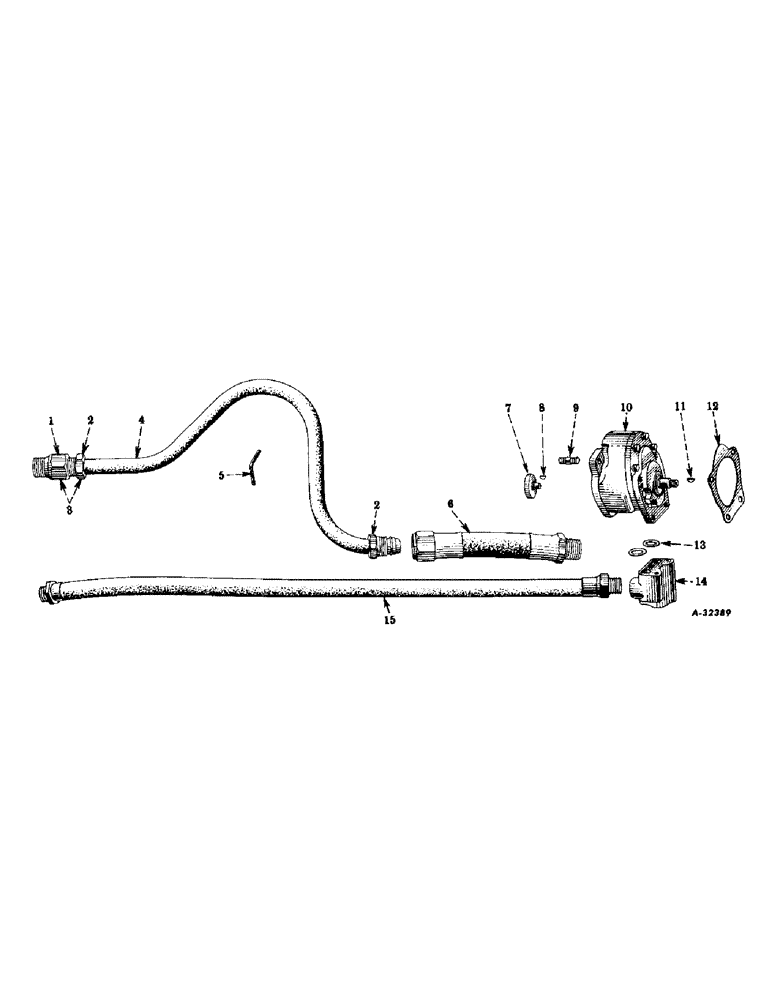

Запчасти Case IH SUPER-H (176) - HYDRAULIC SYSTEM, HYD. LIFT-ALL ATTACHMENT, W/ENGINE DRIVEN PUMP, SPECIAL, HYD. PUMP, FLANGE & HOSE (07) - HYDRAULIC SYSTEM

1

358683R1

CONNECTOR, hydraulic pump high pressure tube

1шт.

2

359492R1

NUT, coupling, hydraulic pump high pressure tube

2шт.

3

358683R11

CONNECTOR, hydraulic pump high pressure tube, w/nut, 359492R1

1шт.

4

359491R11

TUBE, hydraulic pump high pressure, w/two nuts, 359492R1

1шт.

5

359494R1

SUPPORT, hydraulic pump pressure and suction hose

1шт.

220066

NUT, hex., 3/8-16NC

1шт.

6

359490R91

HOSE ASSY.,19.05mm ID x 206.38mm L

HOSE, pressure, hydraulic pump

1шт.

7

358200R1

COUPLING, magneto, hydraulic pump (Pesco 05-995)

1шт.

7

358200R11

COUPLING, magneto, hydraulic pump, w/key, 189576, screw, 100874, and washer, 114614

1шт.

100874

ASSEMBLY

SCREW, machine, slotted-fl-hd., no. 10-32NF x 1-1/4"

1шт.

114614

WASHER

lock, external-tooth, no. 10

61шт.

8

189576

KEY, woodruff, no. 212, 3/32 x 3/8"

1шт.

9

32445D

STUD

hydraulic pump

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

120930

WASHER

lock, external-tooth, 3/8"

1шт.

10

355515R91

PUMP, hydraulic gear, w/coupling, 358200R11 (Pesco 051066-020-01)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

1шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8"

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

Hydraulic pump drive gear #3, 1/8" x 1/2", HT

1шт.

12

352439R1

GASKET

hydraulic pump

1шт.

13

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

RING, seal, hydraulic pump flange

2шт.

355508R1

FLANGE, hydraulic pump

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

359493R91

HOSE, suction, hydraulic pump (Optional with 360113R91 or 360313R91)

1шт.

360113R91

HOSE, suction, hydraulic pump (Optional with 359493R91 or 360313R91)

1шт.

360313R91

HOSE, suction, hydraulic pump (Optional with 359493R91 or 360113R91)

1шт.

356888R91

GASKET

PACKAGE, service, hydraulic pump seal ring and gasket (Consists of -

1шт.

356884R1

SEAL

GASKET

1шт.

352439R1

GASKET

1шт.

356887R91

SEAL

OIL SEAL

2шт.

356885R1

RING

2шт.

353185R1

SEAL

SEAL

1шт.

356886R1

WASHER,36.37mm ID x 42.7mm OD x 0.38mm Thk

2шт.
