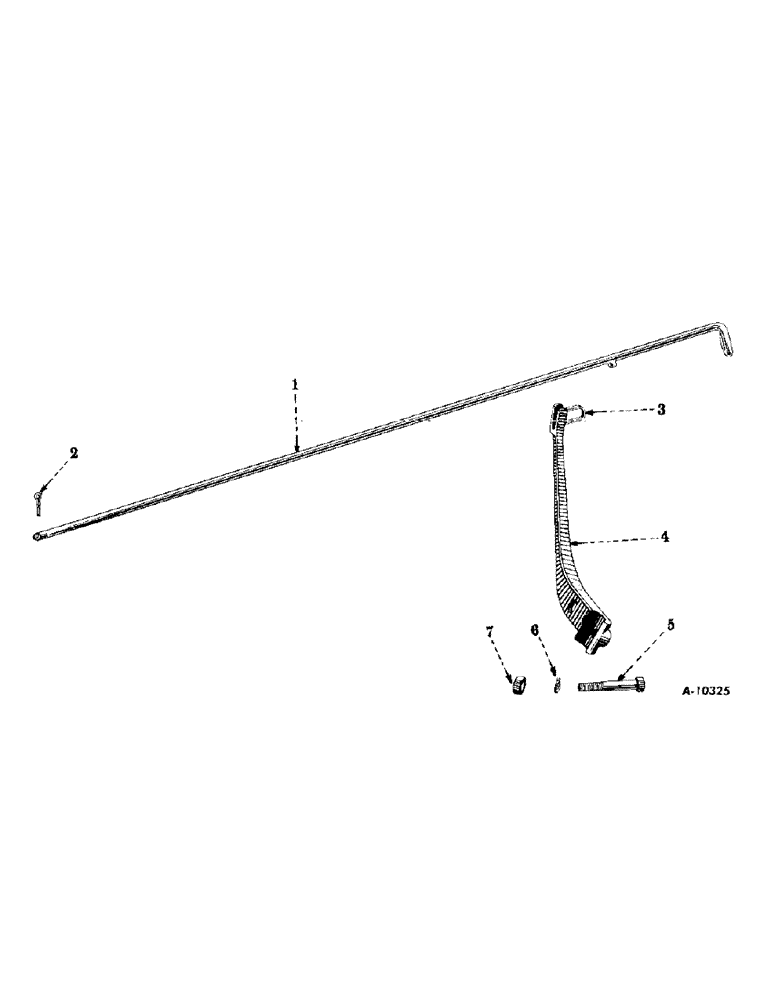

Запчасти Case IH SUPER-H (170) - HYDRAULIC SYSTEM, HYDRAULIC LIFT-ALL ATTACHMENT, SPECIAL, TRACTORS 501 TO 19233 (07) - HYDRAULIC SYSTEM

15050EGX

ATTACHMENT, hydraulic lift-all, w/countershaft driven pump

1шт.

1

15091EX

ROD, control, and bracket

1шт.

2

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), , Control rod and bracket 3/16" x 3/4"

1шт.

3

15137E

SPRING

control rod, and bracket

1шт.

4

5013EAX

BRACKET, control rod, 5013EA, w/rivet, 107162 and spring, 15137E, and bracket

1шт.

107162

WASHER

RIVET, truss-hd., 3/16 x 1-1/8", control rod and bracket

1шт.

5

12406R1

SCREW, cap, hex-hd., 7/16-14NC x 2-7/8", control rod and bracket

1шт.

6

103322

LOCK WASHER,7/16"

WASHER, LOCK, , Control rod and bracket 7/16"

1шт.

7

114773

NUT, hex., 7/16", control rod and bracket

1шт.
