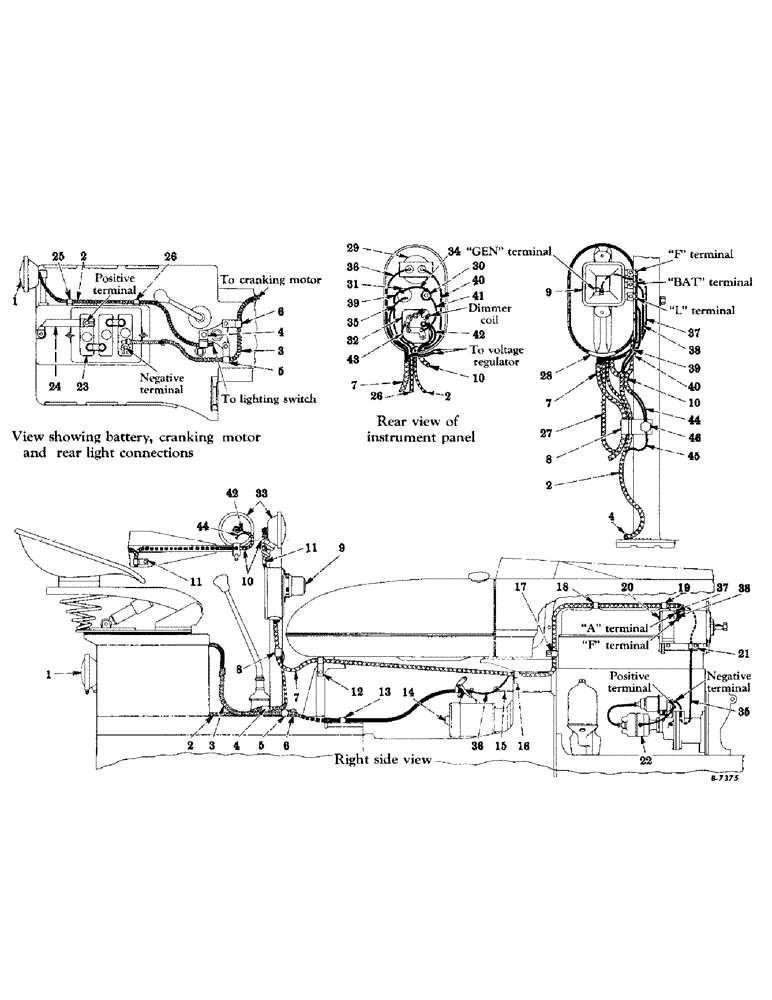

Запчасти Case IH SUPER-H (076) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, BATTERY IGNITION, TRACTORS 19234 UP (06) - ELECTRICAL SYSTEMS

1

357884R91

LIGHT, rear (Guide Lamp 926115)

1шт.

For components see list of parts under detail of "Headlights or Rear Lights" Unit

1шт.

2

358915R91

SPARE PART HARNESS, switch to rear light cable

1шт.

3

358283R91

CABLE

CABLE, battery to starting switch

1шт.

4

61271D

SPARE PART CLIP (On steering post base rear mounting bolt)

1шт.

5

62511D

SPARE PART CLIP (On steering post base front R.H. mounting bolt)

1шт.

6

62511D

SPARE PART CLIP (On steering post base front L.H. mounting bolt)

1шт.

7

359769R91

HARNESS

HARNESS, cable

1шт.

8

62511D

SPARE PART CLIP (On steering column)

1шт.

9

354234R91

REGULATOR

REGULATOR, voltage (Delco-Remy 118308)

1шт.

For components see list of parts under detail of "Voltage Regulator"

1шт.

10

358916R91

HARNESS

HARNESS, headlight cable

1шт.

11

350742R1

SPARE PART CLIP, headlight cable harness (On lower "U" bolt of headlight support bracket)

1шт.

12

56273D

SPARE PART CLIP (On rear fuel tank support) (Right side)

1шт.

13000R1

NUT, hex., 1/4-20NC

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

358986R91

CLIP

CLIP (On belt pulley drive opening cover mounting bolt L.H. side)

1шт.

14

357907R91

MOTOR, cranking (Delco-Remy 1108012)

1шт.

For Components See List of Parts Under Detail of "Cranking Motor"

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

359783R1

SPARE PART CLIP (On fuel tank support left rear mounting bolt)

1шт.

16

60937D

SPARE PART CLIP (On fuel tank front support)

1шт.

13000R1

NUT, hex., 1/4-20NC

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

350742R1

SPARE PART CLIP (On lower steering shaft support mounting bolt)

1шт.

18

355097R1

SPARE PART CLIP (On rear valve cover stud)

1шт.

19

355097R1

SPARE PART CLIP (On front valve cover stud)

1шт.

20

354237R91

SPARE PART GENERATOR (Delco-Remy 1100501)

1шт.

For components see list of parts under detail of "Generator"

1шт.

21

61387D

SPARE PART CLIP (On generator front mounting bolt)

1шт.

22

357934R91

UNIT, battery ignition

1шт.

For components see list of parts under detail of "Battery Ignition Unit"

1шт.

23

355196R92

BATTERY (Auto-Lite IMS-85R)

1шт.

23

354210R91

SPARE PART BATTERY (Globe-Union 6IP)

1шт.

24

358987R91

CABLE

STRAP, battery to ground (Ground on cranking motor mounting bolt)

1шт.

25

358431R1

SPARE PART CLIP, rear light cable harness

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

358431R1

SPARE PART CLIP, rear light cable harness

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

359770R91

SPARE PART HARNESS, regulator cable

1шт.

28

52062D

GROMMET

GROMMET (On electrical instrument mounting panel cover) (Optional with 42865D)

1шт.

28

42865D

SPARE PART GROMMET (On electrical instrument mounting panel cover) (Optional with 52062D)

1шт.

29

42383DC

AMMETER

AMMETER, w/Clamp, 250466R92 and Washer, 352265R1 (AC 1501438) (Optional with 354473R91)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

29

354473R91

AMMETER

AMMETER, w/Clamp, 352154R91 (Rochester 4010-C6) (Optional with 42383DC)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

30

354232R91

BOX

HOUSING, fuse, w/Knob, 356445R91 (Bussman Mfg. Co.)

1шт.

31

62801DC

SWITCH

SWITCH, battery ignition

1шт.

For components see list of parts under detail of "Battery Ignition Switch"

1шт.

32

NSS

NOT SOLD SEPARAT

SWITCH, lighting (Delco-Remy 1994038)

1шт.

For attaching parts see detail of "Lighting Switch"

1шт.

33

357884R91

HEADLIGHT (Guide Lamp 926115)

2шт.

For components see list of parts under detail of "Headlights or Rear Lights" Unit

1шт.

34

NSS

NOT SOLD SEPARAT

CABLE, fuse housing to ignition switch (Used with Housing, 354232R91)

1шт.

35

NSS

NOT SOLD SEPARAT

CABLE, ignition switch to coil (Black) (Order 359769R91)

1шт.

36

NSS

NOT SOLD SEPARAT

CABLE, ammeter to starting switch (Order 359769R91)

1шт.

37

NSS

NOT SOLD SEPARAT

CABLE, regulator "Gen" terminal to generator "A" terminal (Natural with red cross tracers) (Order 359769R91)

1шт.

38

NSS

NOT SOLD SEPARAT

CABLE, regulator "F" terminal to generator "F" terminal (Natural with black tracers) (Order 359769R91)

1шт.

39

NSS

NOT SOLD SEPARAT

CABLE, regulator "L" terminal to ignition switch (Natural with green cross tracers) (Order 359770R91)

1шт.

40

NSS

NOT SOLD SEPARAT

CABLE, regulator "Bat" terminal to ammeter (Natural with black and red cross tracers) (Order 359770R91)

1шт.

41

NSS

NOT SOLD SEPARAT

CABLE, fuse housing to lighting switch (Used with Housing, 354232R91)

1шт.

42

NSS

NOT SOLD SEPARAT

CABLE, lighting switch to headlight (Black) (Order 358916R91)

1шт.

43

NSS

NOT SOLD SEPARAT

CABLE, lighting switch to rear light (Black) (Order 358915R91)

1шт.

44

NSS

NOT SOLD SEPARAT

CABLE, headlight to ground (Natural) (Order 358916R91)

1шт.

45

NSS

NOT SOLD SEPARAT

CABLE, rear light to ground (Natural) (Order 358915R91)

1шт.

46

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4" (Light ground thru steering column)

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

356062R91

BOLT

BOLT AND NUT, battery cable

2шт.

359767R11

SPARE PART COVER, electrical instrument mounting panel

1шт.

425-115

NUT,5/16"-24, G5

NUT, hex., 5/16-24NF

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

250466R92

SPARE PART CLAMP, ammeter (AC-857408)

1шт.

352154R91

SPARE PART CLAMP, ammeter (Rochester R.M. 4000-3)

1шт.

106653

FUSE

FUSE (Cartridge Type, SFE-20) (6 volt, 20 Amps.)

1шт.

356445R91

KNOB

KNOB, fuse housing

1шт.

357891R1

SPARE PART PANEL, mounting, electrical instrument

1шт.

51063DA

SCREW

SCREW, electrical instrument mounting panel

2шт.

225-10108

NUT,#8-32

NUT, #8-32

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

358285R1

SPACER,3/8" Pipe x 1 3/8"

SPACER, battery to ground strap

1шт.

16247R1

SCREW, cap, hex-hd., 7/16-14NC x 4-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

59109D

SPARE PART SPACER, ignition switch

1шт.

359768R1

SPACER, voltage regulator

2шт.

352265R1

SPARE PART WASHER, mounting, ammeter clamp (Rochester 4000-28-C)

2шт.
