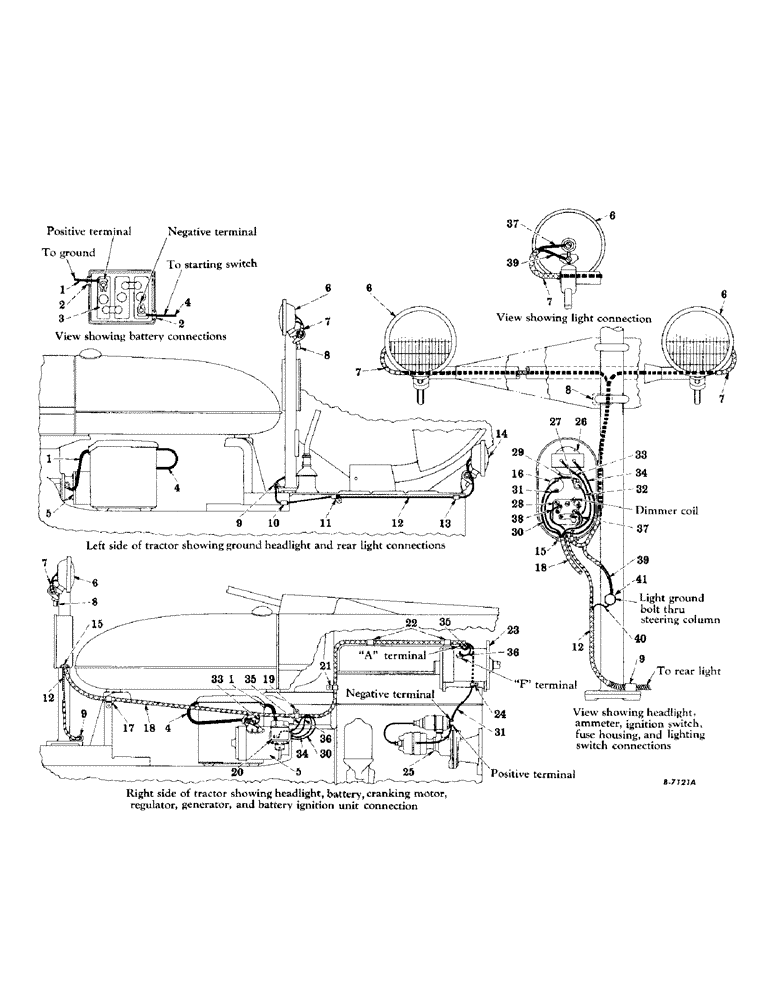

Запчасти Case IH SUPER-H (072) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, BATTERY IGNITION, TRACTORS 501 TO 19233 (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
358990R91
CABLE
CABLE, battery to ground (Ground on cranking motor mounting bolt)
1шт.
2
24179D
GROMMET,5/8" ID x 7/8" Groove Dia
GROMMET (On battery box)
2шт.
3
355196R92
BATTERY (Auto-Lite IMS-85R)
1шт.
3
354210R91
SPARE PART BATTERY (Globe-Union 6IP)
1шт.
4
358163R91
CABLE
CABLE, battery to starting switch
1шт.
For Components See List of Parts Under Detail of "Cranking Motor"
1шт.
5
358160R91
MOTOR, cranking (Delco-Remy 1108016)
1шт.
179883
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
BOLT, hex-hd., 1/2-13 NC x 1-1/4"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
6
357884R91
HEADLIGHT (Guide Lamp 926115)
2шт.
For components see list of parts under detail of "Headlights or Rear Lights" Unit
1шт.
7
358916R91
HARNESS
HARNESS, headlight cable
1шт.
8
350742R1
SPARE PART CLIP, headlight cable harness (On lower "U" bolt of headlight support bracket)
1шт.
9
355098R1
SPARE PART CLIP (On steering post base)
1шт.
10
355098R1
SPARE PART CLIP (On rear frame cover mounting bolt - second bolt from front)
1шт.
11
351794R1
SPARE PART CLIP (On rear frame cover)
1шт.
179835
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
12
358991R91
SPARE PART HARNESS, switch to rear light cable
1шт.
13
355097R1
SPARE PART CLIP (On rear frame cover)
1шт.
280136
NUT,3/8"-16, G8
NUT, 3/8"-16, G8
1шт.
NLS
NO LONGER SERVICED
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
14
357884R91
LIGHT, rear (Guide Lamp 926115)
1шт.
For components see list of parts under detail of "Headlights or Rear Lights" Unit
1шт.
15
52062D
GROMMET
GROMMET (On electrical instrument mounting panel cover) (Optional with 42865D)
1шт.
15
42865D
SPARE PART GROMMET (On electrical instrument mounting panel cover) (Optional with 52062D)
1шт.
16
62801DC
SWITCH
SWITCH, battery ignition
1шт.
For components see list of parts under detail of "Battery Ignition Switch"
1шт.
17
60937D
SPARE PART CLIP (On rear fuel tank support) (Right side) (Will work for 56278D)
1шт.
13000R1
NUT, hex., 1/4-20NC
1шт.
179793
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
18
358161R91
HARNESS
HARNESS, cable
1шт.
19
60937D
SPARE PART CLIP (On fuel tank support) (Will work for 56278D)
1шт.
13000R1
NUT, hex., 1/4-20NC
1шт.
179793
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
20
354234R91
REGULATOR
REGULATOR, voltage (Delco-Remy 118308)
1шт.
For components see list of parts under detail of "Voltage Regulator"
1шт.
21
56275D
SPARE PART CLIP (On steering shaft support)
1шт.
22
355097R1
SPARE PART CLIP (On valve cover stud)
2шт.
23
354237R91
SPARE PART GENERATOR (Delco-Remy 1100501)
1шт.
For components see list of parts under detail of "Generator"
1шт.
24
61387D
SPARE PART CLIP (On generator front mounting bolt)
1шт.
25
357934R91
UNIT, battery ignition
1шт.
For components see list of parts under detail of "Battery Ignition Unit"
1шт.
26
42383DC
AMMETER
AMMETER, w/Clamp, 250466R92 and Washer, 352265R1 (AC 1501438) (Optional with 354473R91)
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
4шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
26
354473R91
AMMETER
AMMETER, w/Clamp, 352154R91 (Rochester 4010-C6) (Optional with 42383DC)
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
4шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
27
354232R91
BOX
HOUSING, fuse, w/Knob, 356445R91 (Bussman Mfg. Co.)
1шт.
28
NSS
NOT SOLD SEPARAT
SWITCH, lighting (Delco-Remy 1994038)
1шт.
For attaching parts see detail of "Lighting Switch"
1шт.
29
NSS
NOT SOLD SEPARAT
CABLE, fuse housing to ignition switch (Part of Housing, 354232R91)
1шт.
30
NSS
NOT SOLD SEPARAT
CABLE, regulator "L" terminal to ignition switch (Natural with green cross tracers) (Order 358161R91)
1шт.
31
NSS
NOT SOLD SEPARAT
CABLE, ignition switch to coil (Black) (Order 358161R91)
1шт.
32
NSS
NOT SOLD SEPARAT
CABLE, fuse housing to lighting switch (Part of Housing, 354232R91)
1шт.
33
NSS
NOT SOLD SEPARAT
CABLE, ammeter to starting switch (Order 358161R91)
1шт.
34
NSS
NOT SOLD SEPARAT
CABLE, regulator "Bat" terminal to ammeter (Natural with black and red cross tracers) (Order 358161R91)
1шт.
35
NSS
NOT SOLD SEPARAT
CABLE, regulator "Gen" terminal to generator "A" terminal (Natural with red cross tracers) (Order 358161R91)
1шт.
36
NSS
NOT SOLD SEPARAT
CABLE, regulator "F" terminal to generator "F" terminal (Natural with black tracers) (Order 358161R91)
1шт.
37
NSS
NOT SOLD SEPARAT
CABLE, lighting switch to headlight (Black) (Order 358916R91)
1шт.
38
NSS
NOT SOLD SEPARAT
CABLE, lighting switch to rear light (Black) (Order 358991R91)
1шт.
39
NSS
NOT SOLD SEPARAT
CABLE, headlight to ground (Natural) (Order 358916R91)
1шт.
40
NSS
NOT SOLD SEPARAT
CABLE, rear light to ground (Natural) (Order 358991R91)
1шт.
41
179867
BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5
SCREW, cap, hex-hd., 7/16-14NC x 2-1/4" (Light ground thru steering column)
1шт.
114773
NUT, hex., 7/16-14NC
1шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
1шт.
359165R91
SPARE PART COVER, electrical instrument mounting panel
1шт.
250466R92
SPARE PART CLAMP, ammeter (AC-857408)
1шт.
352154R91
SPARE PART CLAMP, ammeter (Rochester R.M. 4000-3)
1шт.
106653
FUSE
FUSE (Cartridge type, SFE-20) (6 volt, 20 Amps.)
1шт.
356445R91
KNOB
KNOB, fuse housing
1шт.
357891R1
SPARE PART PANEL, mounting, electrical instrument
1шт.
51063DA
SCREW
SCREW, electrical instrument mounting panel
2шт.
225-10108
NUT,#8-32
NUT, #8-32
2шт.
492-11008
LOCK WASHER,#8
Washer, Lock, #8
2шт.
59109D
SPARE PART SPACER, ignition switch
1шт.
352265R1
SPARE PART WASHER, mounting, ammeter clamp (Rochester 4000-28-C)
2шт.
356062R91
BOLT
BOLT AND NUT, battery cable
2шт.
