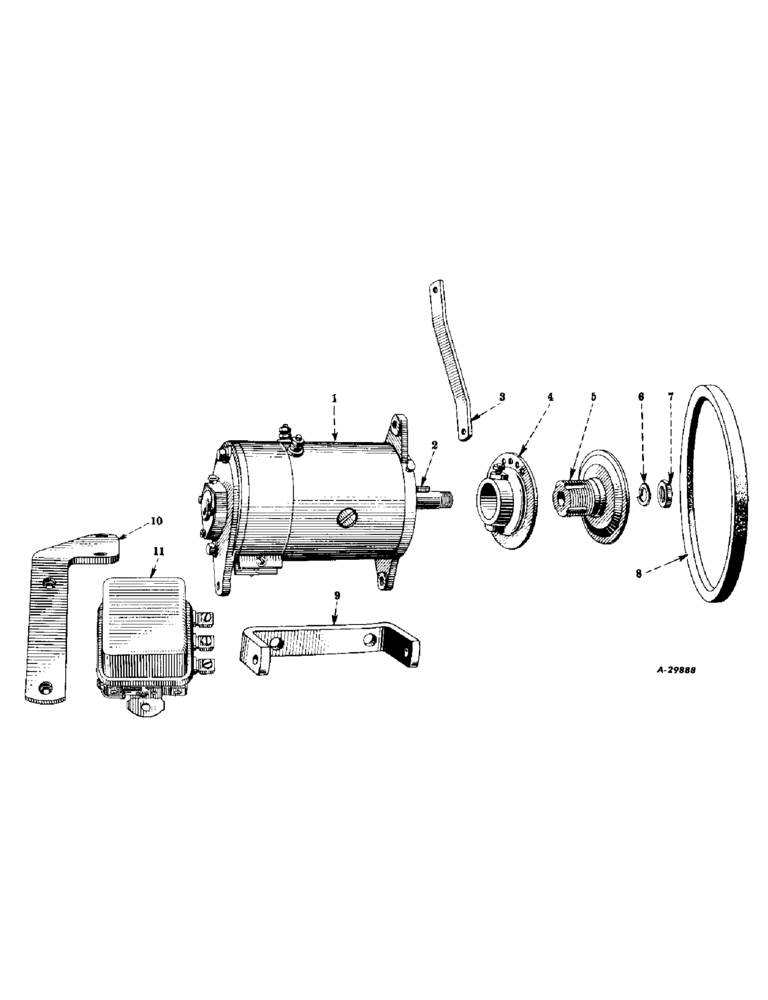

Запчасти Case IH SUPER-H (060) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

354237R91

GENERATOR, w/o Pulley, assembly (Delco-Remy 1100501)

1шт.

For components see list of parts under detail of "Generator"

1шт.

220065

NUT, hex., 5/16-18NC

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Drive end #5, 1/8" x 5/8", HT

1шт.

3

48877D

BRACE, generator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

6746DX

HUB

FLANGE, generator pulley, w/Nut, 218436 and Screw, 102820

1шт.

218436

SEAL

NUT, jam hex., 1/4-20NC

1шт.

NLS

NO LONGER SERVICED

SCREW, set, hdls., dog-pt., 1/4-20NC x 7/8"

1шт.

5

6745DA

HUB

generator pulley

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER, lock, drive end shaft nut (Delco-Remy 804000)

1шт.

7

NSS

NOT SOLD SEPARAT

NUT, drive end shaft (Delco-Remy 1914308)

1шт.

8

48878D

V-BELT,0.50" W

Generator 0.50" W

1шт.

8

48878DGV

BELT

Value, V-Belt

1шт.

9

50384D

BRACKET, generator

1шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

10

358162R1

BRACKET, voltage regulator mounting

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

11

354234R91

REGULATOR

voltage (Delco-Remy 1118308)

1шт.

For components see list of parts under detail of "Voltage Regulator"

1шт.

13000R1

NUT, hex., 1/4-20NC

2шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20NC x 9/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

359768R1

SPACER, voltage regulator (19234 up)

2шт.
