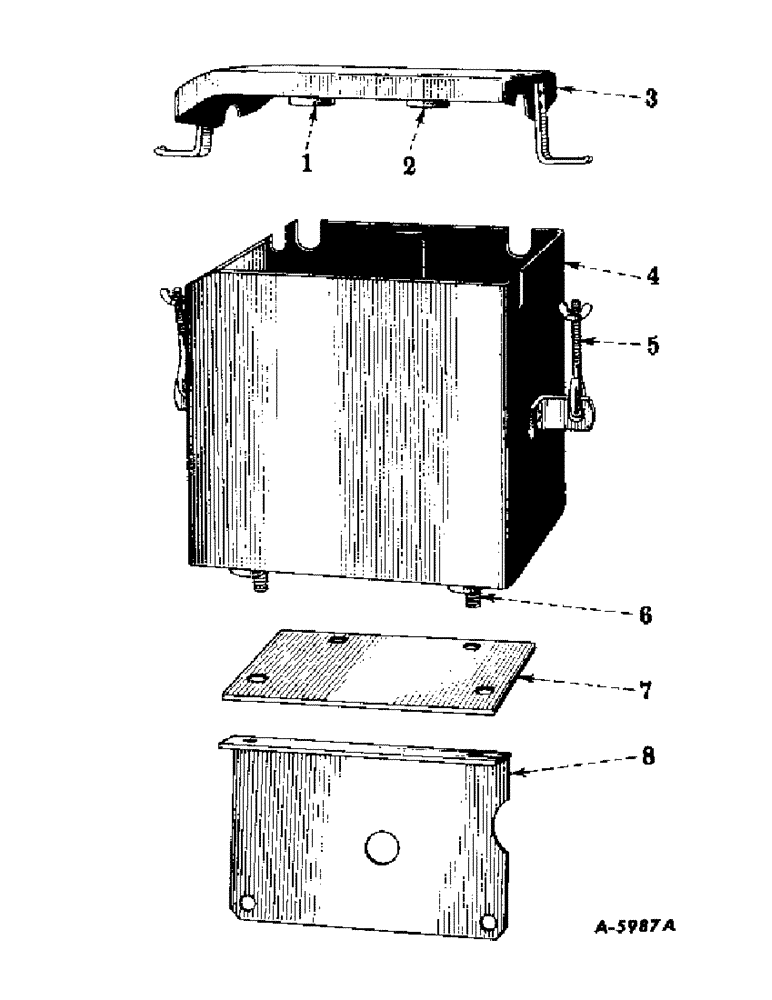

Запчасти Case IH SUPER-H (055) - ELECTRICAL SYSTEM, BATTERY BOX, TRACTORS 501 TO 19233 (06) - ELECTRICAL SYSTEMS

1

51690D

RUBBER, battery hold-down, short

2шт.

2

51689D

RUBBER, battery hold-down, long

2шт.

3

51686DBX

COVER ASSY

COVER, battery box, w/two Rubbers, 51690D and two Rubbers, 51689D

1шт.

4

51680DB

HOUSING

BOX, battery, w/two Eyebolts, 51684DX (Less cover)

1шт.

5

51684DX

EYEBOLT, battery box, w/Nut, 103127

2шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

6

52898D

BOLT,7/16" - 20 x 7/8", Full Thd

lock, battery support

2шт.

103027

NUT, hex., light, 7/16-20NF

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

7

51685D

PLATE, battery box support

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

48882DA

BRACKET, battery box support

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

359500R91

BOX, battery (Illustrated with Seat and Battery Box Unit) (19234 up)

1шт.

24179D

GROMMET,5/8" ID x 7/8" Groove Dia

battery box

2шт.
