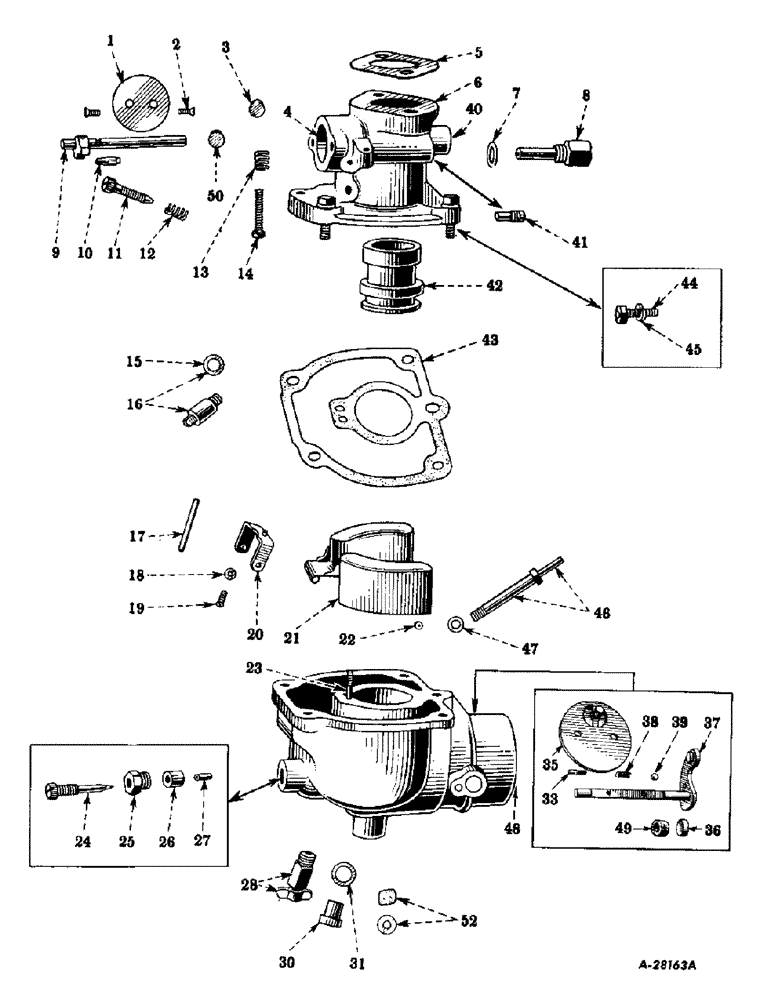

Запчасти Case IH SUPER-H (039) - ENGINE, CARBURETOR, INTERNATIONAL, 1-1/4 INCHES UPDRAFT (01) - ENGINE

358554R92

CARBURETOR, assembly (Less Ref.# 5) (Distillate or kerosene)

1шт.

358065R92

CARBURETOR, assembly (Less Ref.# 5) (Gasoline)

1шт.

1

47391D

VALVE

PLATE, throttle valve

1шт.

2

47392D

SCREW

throttle valve plate

2шт.

3

24805D

PLUG

expansion, 3/8" (Throttle body)

1шт.

4

49223DA

BUSHING, throttle shaft (Economizer)

1шт.

5

31336D

GASKET

carburetor

1шт.

6

8867DAX

BODY, throttle, assembly (Composed of -

1шт.

8867DA

BODY

1шт.

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

1шт.

49223DA

BUSHING

1шт.

45110D

PIN

1шт.

24805D

PLUG

1шт.

32611D

PLUG

2шт.

47393D

PLUG

2шт.

57956D

PLUG

1шт.

109371

SCREW)

1шт.

7

18377D

GASKET

strainer screen retainer

1шт.

8

29902DX

SCREEN

RETAINER, strainer screen, w/Screen

1шт.

9

54488DAX

SHAFT

throttle, w/Pin and Stop

1шт.

10

45110D

PIN

throttle stop

1шт.

11

24689D

ADJUSTMENT SCREW

VALVE, needle, idle adjusting

1шт.

12

24685D

SPRING

idle adjusting needle valve

1шт.

13

25484D

SPRING

throttle stop screw

1шт.

14

186566

SCREW,Sltd Fil Hd, #10-32 x 1 1/8"

fil-hd., cd-pltd., No. 10-32 x 1-1/8"

1шт.

15

25948D

GASKET

fuel valve seat

1шт.

16

47396DX45

JET

VALVE, fuel, w/Gasket, 25948D and Seat

1шт.

17

47395D

PIVOT

AXLE, float

1шт.

18

131043

LOCK WASHER,#4

Washer, Lock, , Follows Ref #20 #4

1шт.

19

86982776

SCREW,Rd, #4 - 40 x 5/16"

Follows Ref.#20

1шт.

20

47394D

SUPPORT

float axle

1шт.

86982776

SCREW,Rd, #4 - 40 x 5/16"

rd-hd., cd-pltd., No. 4 - 40 x 5/16"

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

21

47398DX

FLOAT

1шт.

22

35606D57

AIR BLEED, main (Gasoline)

1шт.

22

359250R1

AIR BLEED, main (Distillate or kerosene)

1шт.

23

49798D72

JET

idle metering

1шт.

24

47404DA

ADJUSTMENT SCREW,Pan HD, 1/4" - 32 x 1-13/32", SST

VALVE, needle, main metering

1шт.

25

24687DA

NUT,7/16" - 32 NPT

NUT, packing, main metering needle valve

1шт.

26

24703DA

PACKING

main metering needle valve (Optional with 67266DX)

1шт.

26

67266DX

PACKING

main metering needle valve (Optional with 24703DA)

1шт.

27

359784R1

SEAT, main metering needle valve (Distillate or kerosene)

1шт.

27

358085R1

SEAT, main metering needle valve (Gasoline)

1шт.

28

134519

VALVE

COCK, drain (Distillate or kerosene) (Optional with 26407D)

1шт.

28

26407D

VALVE

COCK, drain (Distillate or kerosene) (Optional with 134519)

1шт.

30

47402D

NUT

clamp, main discharge jet

1шт.

31

32615D

GASKET

main discharge jet clamp nut

1шт.

33

142484

HANDLE

PIN (Groove No. 1, 1/8 x 1/2") (In fuel bowl) (Optional with 351588R1)

1шт.

33

351588R1

PIN

(Groove No. 1, 1/8 x 1/2") (In fuel bowl) (Optional with 142484)

1шт.

35

357002R12

SHUTTER

PLATE, choke valve

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

rd-hd., No. 6-32 x 1/4"

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

36

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, dust seal choke valve

1шт.

37

357000R91

SHAFT

choke valve, w/Lever

1шт.

38

46059D

SPRING

friction, choke valve lever

1шт.

39

52791R1

BALL,3/16" Dia, Stainless

choke valve lever friction spring, 3/16"

1шт.

40

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

1шт.

41

24693D

PLUG, idle outlet

1шт.

42

47407D23

VENTURI (Optional with 64987D23)

1шт.

42

64987D23

VENTURI (Optional with 47407D23)

1шт.

43

47388DA

GASKET

fuel bowl

1шт.

44

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

Follows Ref#. 48

1шт.

45

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Follows ref #48 1/4"

1шт.

46

56645DX

NOZZLE INJECTION

JET, main discharge

1шт.

47

47401D

GASKET

main discharge jet

1шт.

48

358084R91

BOWL, fuel, assembly (Gasoline) (Composed of -

1шт.

35606D57

AIR BLEED

1шт.

356996R1

BOWL

1шт.

27445DB

FILLER

1шт.

351588R1

PIN

1шт.

32611D

PLUG

1шт.

57957D

PLUG,Exp, 7/16"

1шт.

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER

1шт.

45149DA

SEAL

1шт.

358085R1

SEAT

1шт.

117243

BOTTOM

PLUG, pipe, sq-hd., cd-pltd., 1/8"

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, cap, hex-hd., cd-pltd., 1/4-20NC x 7/8"

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

48

359252R91

BOWL, fuel, assembly (Distillate or kerosene) (Composed of -

1шт.

359250R1

AIR BLEED

1шт.

359251R1

BOWL

1шт.

27445DB

FILLER

1шт.

351588R1

PIN

1шт.

32611D

PLUG

1шт.

57957D

PLUG,Exp, 7/16"

1шт.

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER

1шт.

45149DA

SEAL

1шт.

359784R1

SEAT

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, cap, hex-hd., cd-pltd., 1/4-20NC x 7/8"

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

49

45149DA

SEAL

dust, choke valve

1шт.

50

57956D

PLUG

expansion, throttle shaft, 7/16"

1шт.

52

60947D

PLUG

FILLER AND PLUG, drip hole

1шт.

425913

PIN, excutcheon, brass, rd-hd., No. 11 ga. x 3/8" (Number plate) (Optional with 16955R1)

4шт.

16955R1

PIN, excutcheon, steel, rd-hd., No. 11 ga. x 3/8" (Number plate) (Optional with 425913)

4шт.

ROD, choke (See Engine Controls and Instruments)

1шт.

354453R91

KIT

PACKAGE, carburetor over-haul (Composed of -

1шт.

52791R1

BALL,3/16" Dia, Stainless

1шт.

60947D

PLUG

FILLER AND PLUG

1шт.

60311D

GASKET

1шт.

47388DA

GASKET

1шт.

47401D

GASKET

1шт.

32615D

GASKET

1шт.

31366D

GASKET

1шт.

18377D

GASKET

1шт.

66272D

GASKET

1шт.

24703DA

PACKING

1шт.

47395D

PIVOT

1шт.

25484D

SPRING

RETAINER

1шт.

29902DX

SCREEN

RETAINER

1шт.

24685D

SPRING

RETAINER

1шт.

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER

1шт.

27404DA

SCREW

1шт.

131894

YOKE

2шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

2шт.

47392D

SCREW

2шт.

24689D

ADJUSTMENT SCREW

1шт.

45149DA

SEAL

1шт.

54488DAX

SHAFT

1шт.

46059D

SPRING

1шт.

47396DX45

JET

VALVE

1шт.

131044

LOCK WASHER

Lock, #6

2шт.
