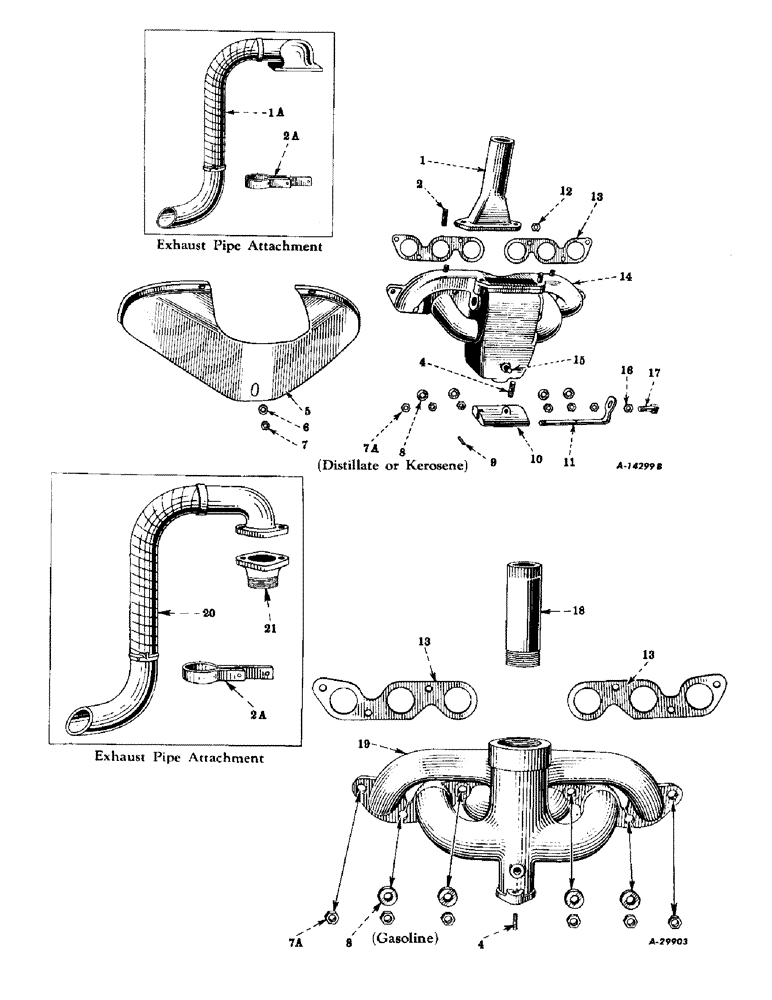

Запчасти Case IH SUPER-H (036) - ENGINE, MANIFOLD AND EXHAUST PIPE (01) - ENGINE

1

6713D

PIPE

exhaust (Distillate or kerosene)

1шт.

1a

54569D

PIPE AND FLANGE, exhaust (Special) (Distillate or kerosene)

1шт.

A complete Orchard Type Exhaust Pipe Field Attachment may be obtained by ordering cover, 656830R92, reference Nos. 1A, 2A and attaching parts from parts stock.

1шт.

2

46202D

STUD

exhaust pipe (Distillate or kerosene)

2шт.

2a

54568D

CLAMP, exhaust pipe (Special)

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

12215D

STUD

carburetor

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

48677DX

SHIELD, manifold head (Distillate or kerosene)

1шт.

6

95-11041

WASHER,3/8"

Follows Ref # 7 3/8"

1шт.

7

93082H

NUT

manifold shield stud (Distillate or kerosene)

3шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

3шт.

7a

43715D

NUT

manifold to cylinder head stud

6шт.

8

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

manifold to cylinder head stud

4шт.

9

38-31014

PIN,5/32" x 7/8", Coiled

- Grooved, 5/32" x 7/8", Type A (manifold heat control valve) (distillate or kerosene)

1шт.

10

6714DA

VALVE, manifold heat control (Distillate or kerosene)

1шт.

11

48673DA

SHAFT, manifold heat control valve (Distillate or kerosene)

1шт.

218438

NUT, jam, hex., 3/8-16NC

1шт.

102952

SCREW, set, sq-hd., cone-pt., 3/8-16NC x 1-1/4"

1шт.

12

220067

PIPE

NUT, exhaust pipe stud (Distillate or kerosene)

2шт.

13

45197DD

MANIFOLD GASKET

manifold

2шт.

14

358644R11

MANIFOLD, exhaust and intake (Distillate or kerosene) (Composed of -

1шт.

358644R1

MANIFOLD

1шт.

12215D

STUD

2шт.

46102D

STUD

3шт.

46202D

STUD

)

2шт.

14

358643R91

MANIFOLD, exhaust and intake, w/heat Valve, assembly (Distillate or kerosene) (Composed of -

1шт.

358644R11

MANIFOLD

1шт.

218438

NUT

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

Grooved, 5/32" x 7/8", Type A

1шт.

102952

SCREW

1шт.

48673DA

SHAFT

1шт.

6714DA

VALVE)

1шт.

15

46102D

STUD, manifold shield (Distillate or kerosene)

3шт.

16

218438

Follows Ref.#11

1шт.

17

102952

Follows Ref.#11

1шт.

18

62476D

PIPE

exhaust (Gasoline)

1шт.

19

358064R11

MANIFOLD, exhaust and intake, w/Plug, 103865 (Gasoline)

1шт.

103865

PLUG, pipe, sq-hd., 1/8" (Optional with 103877)

1шт.

103877

PLUG

pipe, sq-hd., 1/8" (Optional with 103865)

1шт.

20

57992D

PIPE AND FLANGE, exhaust (Special) (Gasoline)

1шт.

A complete orchard type Exhaust Pipe Field attachment may be obtained by ordering cover, 656830R92, Ref.#s 2A, 20, 21 and attaching parts from parts stock.

1шт.

114773

NUT, hex., 7/16-14NC

2шт.

179862

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

21

9117D

FLANGE, exhaust pipe adapter (Special) (Gasoline)

1шт.

656830R91

COVER, exhaust pipe opening (Special)

1шт.

53556D

PARTS ACCESSORY, exhaust pipe extension (Illustrated in attachment section)

1шт.
