Запчасти Case IH SUPER-H (028) - ENGINE, FAN, THERMOSTAT AND WATER PUMP (01) - ENGINE

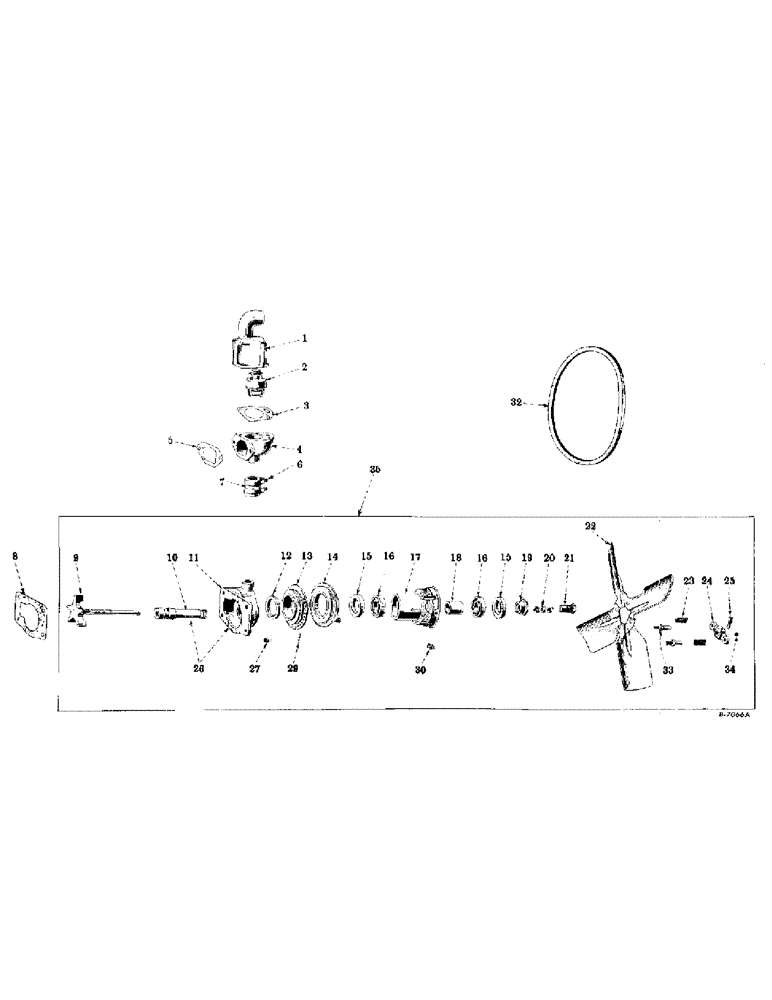

Схема запчастей Case IH SUPER-H - (028) - ENGINE, FAN, THERMOSTAT AND WATER PUMP (01) - ENGINE
29
6
7
33
3
4
12
18
15
17
16
8
1
24
25
16
32
34
13
23
19
9
30
28
2
15
20
22
10
14
11
21
35
5
27

Артикул

Название

Примечание

Количество

1

6675DD

HOUSING, thermostat

1шт.

179397

SCREW, cap, hex-hd., 3/8-16NC x 3-3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

33814DB

THERMOSTAT

(165 degrees - 190 degrees) (Optional with 37634DA)

1шт.

2

37634DA

THERMOSTAT

(165 degrees - 190 degrees) (Optional with 33814DB)

1шт.

3

45102D

GASKET

thermostat housing

1шт.

4

6233D

ELBOW, water outlet

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

45103D

GASKET

water outlet elbow

1шт.

6

357870R91

CLAMP

water pump by-pass hose

2шт.

7

45607DA

HOSE, by-pass, water pump (1-1/4" I.D. x 1-3/4" long, I ply)

1шт.

8

45091D

GASKET

water pump body

1шт.

9

9165DX

IMPELLER

water pump, w/Shaft and thrust Washer

1шт.

10

48031DCX

FITTING

SLEEVE, water pump, w/two Bushings

1шт.

11

6600D

BODY, water pump (Order 48026DC)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

48025D

WASHER

felt, water pump

1шт.

13

6747D

PULLEY

FLANGE, fan and generator pulley

1шт.

14

6598DX

RETAINER

FLANGE, fan and water pump pulley, w/Nut, 218437 and Screw, 102723

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

NLS

NO LONGER SERVICED

SCREW, set, hdls., slotted-cup-pt., 5/16-18NC x 1-1/4"

1шт.

15

51492D

SEAL

OIL SEAL, water pump

2шт.

16

ST225B

BALL BEARING,25 mm ID x 52 mm OD x 13 mm

BEARING, water pump (IH-C-225)

2шт.

17

6599DA

HUB, fan and water pump

1шт.

17

54159DA

HUB

fan and generator pulley, assembly (Composed of -

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6598DX

RETAINER

FLANGE

1шт.

6747D

PULLEY

FLANGE

1шт.

6599DA

HUB

1шт.

51492D

SEAL

OIL SEAL

2шт.

142488

GROOVED PIN,1/8" x 1", Type A

PIN, Grooved, 1/8" x 1", Type A

1шт.

18

48027D

SPACER, water pump bearing

1шт.

19

48028DB

NUT

clamp, water pump bearing

1шт.

20

45925DA

SEAL

PACKING, water pump

1шт.

21

48030DA

NUT

water pump packing

1шт.

22

52631DB

FAN

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

52631DBX

FAN, w/Nut, 48028DB

1шт.

23

G3792

SPRING

water pump drive

2шт.

24

52995D

DRIVE

R, water pump

1шт.

25

42739DA

STUD

PIN, water pump drive

1шт.

25-114

NUT,1/4"-28, G5

hex., light, 1/4-28NF

1шт.

26

48026DC

SLEEVE

BODY, water pump, w/Sleeve, 48031DCX

1шт.

27

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (In water pump body) (Optional with 138222H) 1/8"-27 x .66 lg

1шт.

27

138222H

FITTING, lubrication, straight, 1/8" (In water pump body) (Optional with 109461)

1шт.

29

142488

GROOVED PIN,1/8" x 1", Type A

PIN, pulley flange, 1/8 x 1"

1шт.

30

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , w/Cap, 126095 (Water pump bearing) (Optional with 138222H) 1/8"-27 x .66 lg

1шт.

30

138222H

FITTING, lubrication, straight, 1/8" (Water pump bearing) (Optional with 109461)

1шт.

32

48032DA

V-BELT,0.75" W

Fan (Regular duty type) 0.75" W

1шт.

32

368085R1

BELT

fan (Heavy duty COG type)

1шт.

33

48029DA

STUD

driving, water pump

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

34

114604

LOCK WASHER,Ext Tooth, 1/4"

WASHER, lock, external tooth, 1/4"

1шт.

35

54148DA

PUMP, water, w/Fan, assembly

1шт.

355139R91

KIT

PACKAGE, service, water pump (Consists of -

1шт.

ST225B

BALL BEARING,25 mm ID x 52 mm OD x 13 mm

BEARING

2шт.

45091D

GASKET

1шт.

9165DX

IMPELLER

1шт.

48028DB

NUT

1шт.

48030DA

NUT

1шт.

51492D

SEAL

OIL SEAL

2шт.

48024D

PACKING

1шт.

42739DA

STUD

PIN

1шт.

48031DCX

FITTING

SLEEVE

1шт.

G3792

SPRING

2шт.

48029DA

STUD

2шт.

48025D

WASHER

)

1шт.

Выбрано товаров: 71
