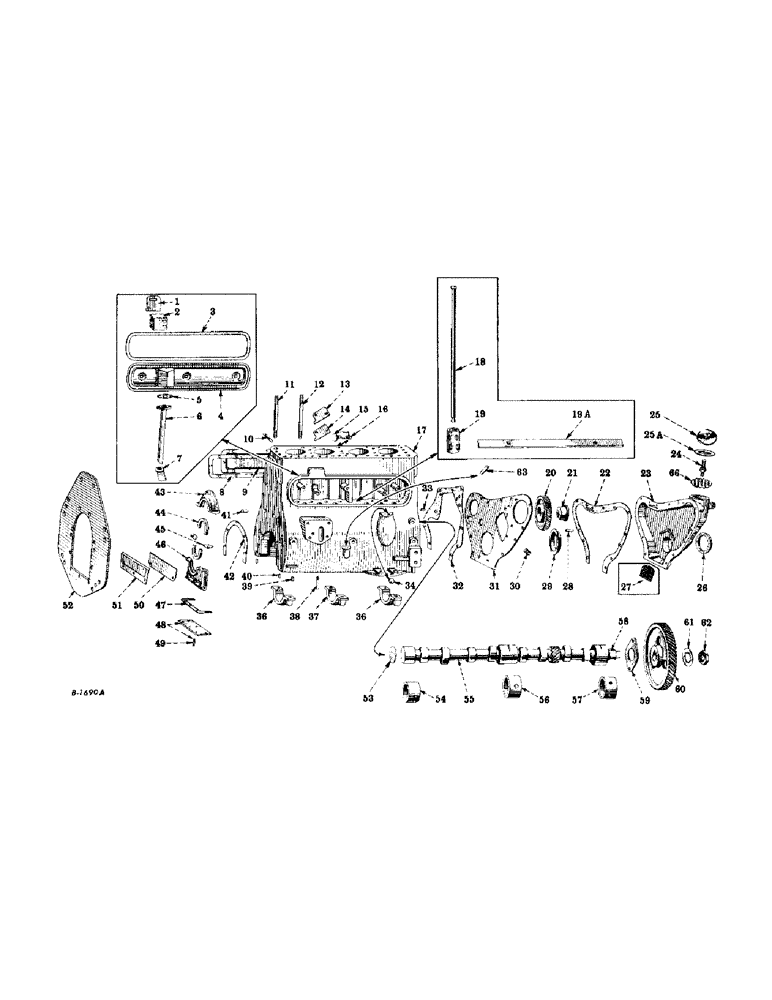

Запчасти Case IH SUPER-H (005) - ENGINE, CRANKSHAFT OIL SEALS, CAMSHAFT, CRANKCASE AND RELATED PARTS (01) - ENGINE

1

48708DX

BAFFLE, breather, w/Plate

1шт.

100750

FITTING

SCREW, machine, slotted-rd-hd., No. 8-32NC x 3/8" Slotted Rd Hd, #8-32 x 3/8"

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

2

52111D

ELEMENT

breather

1шт.

3

45018DB

GASKET

push rod chamber side plate

1шт.

4

48625DX

PLATE, side, push rod chamber

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

3шт.

62866D

WASHER,5/64" Thk x 13/32" ID

push rod chamber side plate bolt (Optional with 357374R1)

3шт.

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, push rod chamber side plate bolt (Optional with 62866D)

3шт.

5

46700D

GASKET

breather pipe flange

1шт.

6

48710DAX

PIPE, breather, w/Flange

1шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

49792D

CLIP, breather pipe (On oil pan attaching screw)

1шт.

8

45266DA

CYLINDER HEAD GASKET

water header

1шт.

9

48461DA

CHANNEL

HEADER, water, w/cover

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

4шт.

179814

SPACER

10шт.

28950D

WASHER

water header stud and cap screw

14шт.

10

29070D

STUD

water header

4шт.

11

45009D

STUD, cylinder head, short (5-15/16")

15шт.

12

48939DA

STUD

cylinder head, long (6-1/8")

1шт.

1763Y

NUT

CYLINDER, head stud, nut

16шт.

13

29710D

COVER

fuel pump opening

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/16-18NC x 1/2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

85069R1

GASKET, fuel pump opening cover

1шт.

15

45314DC

PLUG

crankcase water drain

1шт.

16

363793R1

ELBOW

crankcase water drain (Will work for 120702) (Optional with 364531R1)

1шт.

16

364531R1

ELBOW

crankcase water drain (Will work for 120702) (Optional with 363793R1)

1шт.

17

364266R92

CRANKCASE, assembly (Will work for 358068R93) (Composed of -

1шт.

For service replacement, 374297R91 Fire Creter Package (Gas), 374856R91 Pist Change Kit, 366375R91 Sleeve Set Pist., 366382R91 Sleeve Set Kero

1шт.

53419DB

CAMSHAFT BEARING,1.3125" OD x 2.0625"

BEARING

1шт.

53420DA

CAMSHAFT BEARING,1.9415" OD x 1.9375"

1шт.

53421DA

CAMSHAFT BEARING,1.504" OD

1шт.

366096R1

BOLT

6шт.

6177D

CAP (NSS)

2шт.

6171D

CAP (NSS)

1шт.

NLS

NO LONGER SERVICED

CORK

2шт.

29710D

COVER

1шт.

364265R1

CRANKCASE (NSS)

1шт.

363793R1

ELBOW

1шт.

85069R1

GASKET

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

4шт.

41052D

PIN

2шт.

45391D

PIN

2шт.

45314DC

PLUG

1шт.

50410DA

PLUG

3шт.

143997

PLUG

2шт.

172548

PLUG,Exp, 1 1/8"

1шт.

172576

PLUG,Exp, 1 5/8"

1шт.

179812

GEAR

SCREW

2шт.

363744R1

SLEEVE

1шт.

29070D

STUD

4шт.

45009D

STUD

15шт.

58516E

STUD

1шт.

43947D

WASHER

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

143997

PLUG

pipe sq-socket, stl., 1/4"

2шт.

50410DA

PLUG

oil header (1/8")

3шт.

18

48366D

ROD

valve push (Optional with 355073R91)

8шт.

18

355073R91

ROD, valve push (Optional with 48366D)

8шт.

19

35645H

TAPPET, valve (Optional with 353233R1)

8шт.

19

353233R1

TAPPET, valve (Optional with 35645H)

8шт.

19a

49671D

STOP, valve tappet

1шт.

113860

SCREW, machine, slotted-rd-hd., 5/16-18NC x 5/8" Slotted Rd Hd, 5/16"-18 x 5/8"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

6238DX

GEAR

idler, w/Bushing (35 Teeth)

1шт.

21

6239DX

SHAFT, idler gear, w/Pin

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

22

352169R2

GASKET

crankcase front cover

1шт.

23

352168R21

COVER, crankcase, front, assembly (Composed of -

1шт.

352168R2

COVER

1шт.

45010D

DEFLECTOR

1шт.

53888D

OIL SEAL

OIL SEAL

1шт.

48587D

POINTER

1шт.

363232R1

SCREEN

1шт.

363231R1

STUD)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

24

363231R1

STUD, oil filler cap (Will work for 45400D)

1шт.

25

4819DX

CAP

oil filler, w/Gasket, 364420R1

1шт.

25a

364420R1

GASKET, oil filler cap

1шт.

26

53888D

OIL SEAL

OIL SEAL, crankshaft, front

1шт.

27

SCREEN, oil filler (Used with Cover, 354950R1) (NSS) (Order Screen, 363232R1 and Stud, 363231R1)

1шт.

20000D

BOLT, oil filler screen

2шт.

354029R1

WIRE, lkg., oil filler screen bolt

1шт.

28

48587D

POINTER, timing

1шт.

29

45010D

DEFLECTOR, oil, crankshaft, front

1шт.

30

354489R1

LOCK

crankcase front plate screw

2шт.

31

352167R21

PLATE, crankcase, front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

32

45394DB

GASKET

crankcase front plate

1шт.

33

45391D

PIN, dowel, crankcase front plate

2шт.

34

172548

PLUG,Exp, 1 1/8"

expansion, 1-1/8" (Distributor hole)

1шт.

36

NSS

NOT SOLD SEPARAT

CAP, crankshaft bearing, front and rear (order crankcase assembly)

2шт.

366096R1

BOLT, crankshaft bearing cap (Will work for 43948D)

4шт.

58516E

WASHER, crankshaft bearing cap bolt (Will work for 43947D)

4шт.

1740Y

LOCKING DEVICE

WIRE, lkg., crankshaft bearing cap bolt (Used to retain bolt, w/dld. head)

2шт.

37

NSS

NOT SOLD SEPARAT

CAP, crankshaft bearing, center (order crankcase assembly)

1шт.

366096R1

BOLT, crankshaft bearing cap (Will work for 43948D)

2шт.

58516E

WASHER, crankshaft bearing cap bolt (Will work for 43947D)

2шт.

1740Y

LOCKING DEVICE

WIRE, lkg., crankshaft bearing cap bolt (Used to retain bolt, w/dld. head)

1шт.

38

45397D

TUBE

oil filler drain (Inside of crankcase)

1шт.

39

104942

DISC

CORK, No. 6 standard, 9/16 x 3/4 x 15/16" long (Crankcase locating hole plug)

2шт.

40

25093DA

PLUG

felt, crankshaft rear oil seal retainer plate

2шт.

41

41052D

PIN, dowel, rear engine support

2шт.

42

45012DA

GASKET

crankshaft rear oil seal retainer

1шт.

43

6190DA

PLATE

RETAINER, crankshaft rear oil seal, upper

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

44

45014D

OIL SEAL

FELT, crankshaft rear oil seal

2шт.

45

45013D

GASKET

crankshaft rear oil seal retainer, center

2шт.

46

6508DA

RING, SNAP

RETAINER, crankshaft rear oil seal, lower

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

47

46959D

GASKET

crankshaft rear oil seal retainer plate

1шт.

48

46958DX

PLATE

crankshaft rear oil seal retainer, w/Stud, 50809DA

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

49

50809DA

STUD, crankshaft rear oil seal retainer plate

1шт.

50

45398D

DUST SEAL, crankcase rear

1шт.

181333

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

51

45399D

GASKET

GASKET, crankcase rear dust seal

1шт.

52

48623D

SUPPORT, rear engine

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

53

172576

PLUG,Exp, 1 5/8"

expansion, 1-5/8" (Camshaft rear bearing)

1шт.

54

53421DA

CAMSHAFT BEARING,1.504" OD

camshaft, rear (Will work for 45022DA) (NSS)

1шт.

55

49900DDX

CAMSHAFT, w/Key, 127559, and Nut, 318598R1

1шт.

56

53420DA

CAMSHAFT BEARING,1.9415" OD x 1.9375"

camshaft, center (Will work for 45021DA) (NSS)

1шт.

57

53419DB

CAMSHAFT BEARING,1.3125" OD x 2.0625"

BEARING, camshaft, front (Will work for 45020DB) (NSS)

1шт.

58

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

Woodruff, No. 91

1шт.

59

43249D

PLATE

thrust, camshaft

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

60

6664DB

GEAR

camshaft (48 teeth)

1шт.

61

16025D

SHIM

LOCK, camshaft gear nut

1шт.

62

V84199

NUT,1"-14, Thin

camshaft gear (RH thread)

1шт.

63

363744R1

SLEEVE, oil level gage

1шт.

For tractors equipped with oil level gauge

1шт.
