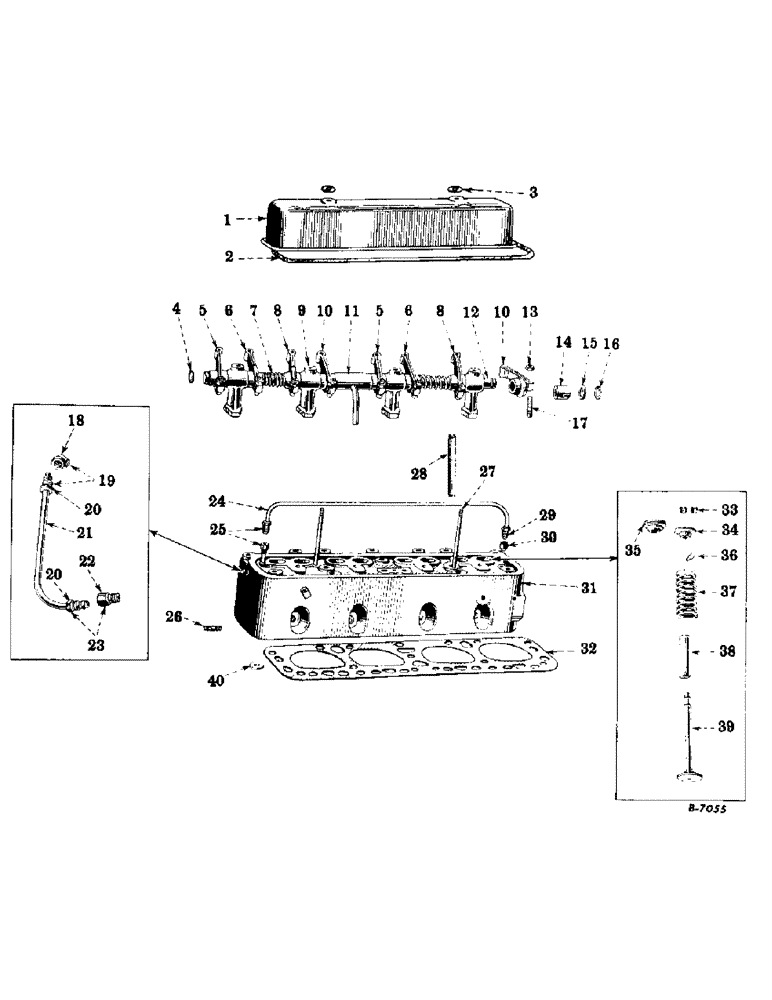

Запчасти Case IH SUPER-H (004) - ENGINE, CYLINDER HEAD, VALVE COVER, VALVES AND VALVE LEVERS (01) - ENGINE

1

363356R91

COVER, valve, w/flange and plug

1шт.

2

43976DB

GASKET

valve cover

1шт.

3

62866D

WASHER,5/64" Thk x 13/32" ID

valve cover stud nut (Optional with 354374R1)

2шт.

3

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, valve cover stud nut (Optional with 62866D)

2шт.

4

172528

PLUG,Exp, 9/16"

expansion, 9/16" (Valve lever shaft end)

2шт.

5

355455R91

LEVER

exhaust valve, LH (Welded type) w/insert (Will work for 43917DAX)

2шт.

5

355671R92

ROCKER

LEVER, Exhaust Valve, LH 355455R91, w/Nut 133093R1 and Screw, 16067DA (Will work for 43917DAYA)

2шт.

6

355456R91

LEVER

intake valve, RH (Welded type) w/insert (Will work for 43916DAX)

2шт.

6

355672R92

LEVER

Intake Valve, RH 355456R91, w/Nut, 133093R1 and Screw, 16067DA (Will work for 43916DAYA)

2шт.

7

24541D

SPRING

valve lever

2шт.

8

355455R91

LEVER

intake valve, LH (Welded type) w/insert (Will work for 43915DAX)

2шт.

8

355671R92

ROCKER

LEVER, Intake Valve, LH 355455R91, w/Nut, 133093R1 and Screw, 16067DA (Will work for 43915DAYA)

2шт.

9

45036DB

BRACKET, valve lever

4шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-1/4"

4шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8"

4шт.

10

355456R91

LEVER

exhaust valve, RH (Welded type) w/insert (Will work for 43918DAX)

2шт.

10

355672R92

LEVER

Exhaust Valve, RH 355456R91, w/Nut, 133093R1 and Screw, 16067DA (Will work for 43918DAYA)

2шт.

11

43977DAX

SLEEVE, valve lever shaft oil, w/tube

1шт.

12

43914DBX

SHAFT, valve lever, w/Plug, 172528

2шт.

12

64888D

SHAFT, valve lever (Includes two Shafts, 43914DBX and Sleeve, 43977DAX)

1шт.

13

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

8шт.

14

24564DA

BUSHING

valve lever (Used with forged type valve lever arms)

8шт.

15

43374D

SPRING WASHER

valve lever shaft spring

2шт.

16

43375D

RING

snap, valve lever shaft

2шт.

17

16067DA

ADJUSTMENT SCREW,3/8" - 24

adjusting, valve lever

8шт.

18

51434D

ELBOW

cylinder head breather pipe (Air cleaner end)

1шт.

19

51434DX

ELBOW

cylinder head to air cleaner breather pipe, w/Nut, 278953R91 (Air cleaner end)

1шт.

20

278953R91

NUT

cylinder head to air cleaner breather pipe elbow (Air cleaner end)

1шт.

20

278953R91

NUT

cylinder head breather pipe connector (Cylinder head end)

1шт.

21

51436DX

PIPE, breather, cylinder head to air cleaner, w/two Nuts, 278953R91

1шт.

22

57942D

CONNECTOR, ELEC

CONNECTOR, cylinder head to air cleaner breather pipe (Cylinder head end)

1шт.

23

57942DX

CONNECTOR, ELEC

CONNECTOR, cylinder head to air cleaner breather pipe, w/Nut, 278953R91 (Cylinder head end)

1шт.

24

51206DAX

TUBE, cylinder head breather, w/two Nuts, 369989R1

1шт.

25

32252DX

CONNECTOR, Cylinder Head Breather Tube, 35252D, w/Nut, 369989R1

2шт.

26

63459D

STUD

manifold to cylinder head

6шт.

27

45566D

STUD, valve cover

2шт.

103026

NUT,3/8"-24, G5

2шт.

28

351972R1

SLEEVE,12.74mm ID x 18.83mm OD x 107.95mm L

SLEEVE, cylinder head stud

1шт.

29

369989R1

NUT

cylinder head breather tube connector

2шт.

30

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, cylinder head breather tube (Body only)

2шт.

31

362533R11

HEAD, cylinder assembly (Gasoline) (Composed of -

1шт.

8049DR

GUIDE

8шт.

362533R1

HEAD (NSS)

1шт.

362532R1

INSERT

4шт.

143997

PLUG

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW

4шт.

351972R1

SLEEVE,12.74mm ID x 18.83mm OD x 107.95mm L

SLEEVE

1шт.

45566D

STUD

2шт.

63459D

STUD

6шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

31

364439R91

HEAD, cylinder, w/Valves, assembly (Gasoline) (Composed of -

1шт.

362533R11

HEAD

1шт.

43026D

KEY

16шт.

358198R91

ROTATOR

ROTOCAP

4шт.

42040D

CUP

SEAT

4шт.

358197R1

SPRING

8шт.

362534R1

VALVE

4шт.

362535R1

VALVE

)

4шт.

31

363257R21

HEAD, cylinder, w/Studs and valve Guides, assembly (Distillate) (Composed of -

1шт.

358638R1

GUIDE

8шт.

363257R2

HEAD (NSS)

1шт.

357898R1

INSERT

4шт.

143997

PLUG

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW

4шт.

43979D

SLEEVE (NSS)

1шт.

45566D

STUD

2шт.

63459D

STUD

6шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER)

4шт.

31

358635R93

HEAD, cylinder, w/Valves, assembly (Distillate) (Composed of -

1шт.

363257R21

HEAD

1шт.

42026D

KEY

16шт.

42098D

RETAINER

8шт.

42040D

CUP

SEAT

8шт.

358197R1

SPRING

8шт.

43912D

VALVE

4шт.

43913DA

VALVE

)

4шт.

31

363258R21

HEAD, cylinder, w/Studs and valve Guides, assembly (Kerosene) (Composed of -

1шт.

358638R1

GUIDE

8шт.

363258R2

HEAD (NSS)

1шт.

357898R1

INSERT

4шт.

143997

PLUG

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW

4шт.

43979D

SLEEVE (NSS)

1шт.

45566D

STUD

2шт.

63459D

STUD

6шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER)

4шт.

31

358639R93

HEAD, cylinder w/Valves, assembly (Kerosene) (Composed of -

1шт.

363258R21

HEAD

1шт.

42026D

KEY

16шт.

42098D

RETAINER

8шт.

42040D

CUP

SEAT

8шт.

358197R1

SPRING

8шт.

358641R1

VALVE

4шт.

358642R1

VALVE)

4шт.

32

43988DF

GASKET

cylinder head (Used only with "Thickwall Sleeve Sets")

1шт.

32

362746R2

GASKET

cylinder head (Used only with "Thinwall Sleeve Sets" or "Fire Crater Increased Power Improvement Packages")

1шт.

33

42026D

KEY

valve spring seat

16шт.

34

42040D

CUP

SEAT, valve spring, upper (Intake) (Gasoline)

4шт.

34

42040D

CUP

SEAT, valve spring, upper (Distillate or Kerosene)

8шт.

35

358198R91

ROTATOR

ROTOCAP, exhaust valve (Gasoline)

4шт.

36

42098D

RETAINER

valve stem (Distillate or Kerosene)

8шт.

37

358197R1

SPRING

valve

8шт.

38

358638R1

GUIDE, valve (Distillate or Kerosene)

8шт.

38

8049DR

GUIDE

valve (Gasoline)

8шт.

39

43912D

VALVE

intake (Distillate)

4шт.

39

43913DA

VALVE

exhaust (Distillate)

4шт.

39

362534R1

VALVE

intake (Gasoline)

4шт.

39

362535R1

VALVE

exhaust (Gasoline)

4шт.

39

358641R1

VALVE, intake (Kerosene)

4шт.

39

358642R1

VALVE, exhaust (Kerosene)

4шт.

40

362532R1

INSERT, exhaust valve seat (Gasoline)

4шт.

40

357898R1

INSERT, exhaust valve seat (Distillate or Kerosene)

4шт.

354475R94

GASKET KIT

SET, valve grinding (For components see "Package Assorted Gaskets")

1шт.

55620DD

GASKET

SET, engine (For components see "Package Assorted Gaskets")

1шт.
