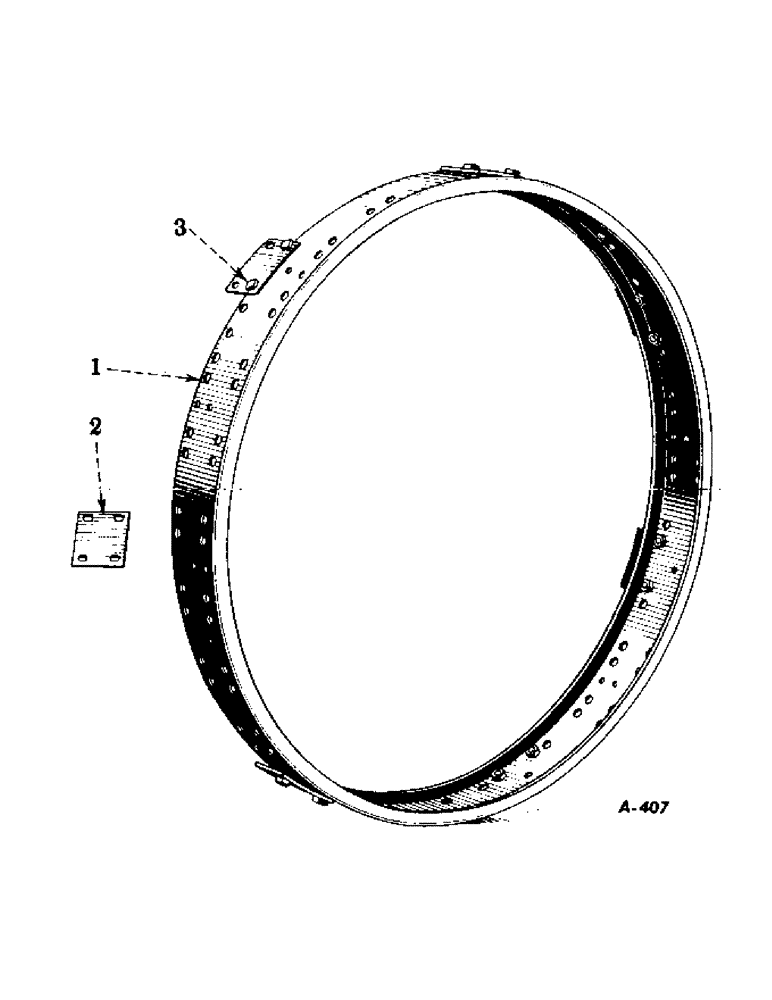

Запчасти Case IH SUPER-H (231) - ATTACHMENTS, REAR WHEEL EXTENSION TIRE, SPECIAL, SUPER "H" Attachments

49214D

ATTACHMENT, rear wheel extension tire

1шт.

For tractors equipped with standard steel rear wheels

1шт.

49236DB

ATTACHMENT, rear wheel extension tire (For tractors equipped with heavy duty steel rear wheels)

1шт.

For tractors equipped with standard steel rear wheels

1шт.

1

49212DB

TIRE, extension, rear wheel

2шт.

2

49213D

PLATE, fastening, rear wheel extension tire (Standard steel wheel)

14шт.

2

57172D

PLATE, fastening, rear wheel extension tire (Heavy duty steel wheel)

14шт.

3

63136D

BOLT, spade lug (Standard steel wheel)

56шт.

114820

NUT, hex., 5/8"-11NC

56шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

56шт.

3

13319R1

BOLT, machine, sq-hd., 5/8-11NC x 1-3/4" (Heavy duty steel wheel)

28шт.

114820

NUT, hex., 5/8-11NC

28шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

28шт.
