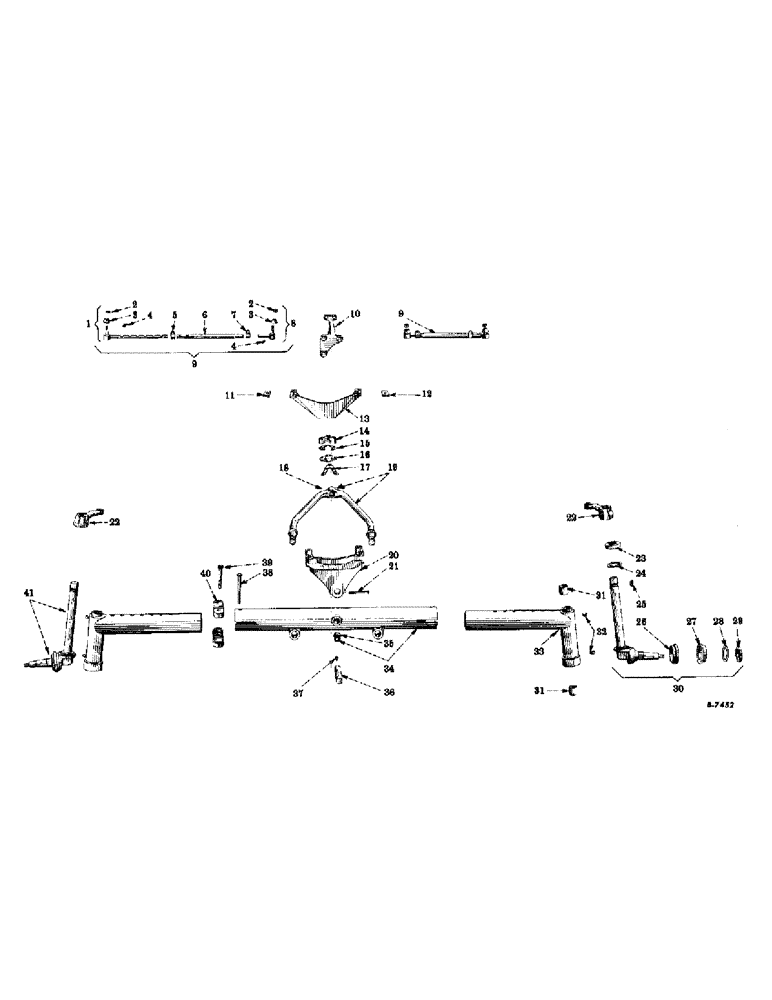

Запчасти Case IH SUPER-H (222) - ADJUSTMENTS, ADJUSTABLE WIDE TREAD FRONT AXLE, SUPER "H" TRACTORS 19234 UP Attachments
№
Артикул
Название
Примечание
Количество
360398R91
ATTACHMENT, adjustable wide tread front axle
1шт.
1
358983R91
TIE-ROD
TIE ROD, L.H., assembly (Thompson Products X-195-VN-11) (Composed of -
2шт.
358900R1
SEAL
COVER
1шт.
NSS
NOT SOLD SEPARAT
END
1шт.
358901R1
SLOTTED NUT
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
359984R91
ROD
TIE ROD, L.H., assembly (Columbus Auto Parts H-X-2770) (Composed of -
2шт.
359982R1
COVER
1шт.
NSS
NOT SOLD SEPARAT
END
1шт.
359983R1
NUT
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
2
358901R1
SLOTTED NUT
tie rod end (Thompson Products 10-MN-38)
4шт.
2
359983R1
NUT
tie rod end (Columbus Auto Parts S-X-2379)
4шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), , Tie rod end 1/8" x 1 1/4"
4шт.
3
358900R1
SEAL
COVER, dust, tie rod end (Thompson Products 14-DC-58)
4шт.
3
359982R1
COVER
dust, tie rod end (Columbus Auto Parts S-X-2766)
4шт.
4
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, (Tie rod) (Optional with 119512j) 1/8"-27 x .66 lg
4шт.
4
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING, lubrication, straight, 1/8" (Tie rod) (Optional with 109461)
4шт.
5
358982R1
CLAMP, tie rod (Adjustable end) (Thompson Products X-232-AD-1)
2шт.
25-118
NUT,1/2"-20, G5
hex., 1/2-20NF
2шт.
181434
BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5
SCREW, cap, hex-hd., 1/2-20NF x 1-7/8"
2шт.
5
359986R1
CLAMP
tie rod (Adjustable end) (Columbus Auto Parts S-X-2768)
2шт.
25-118
NUT,1/2"-20, G5
hex., 1/2-20NF
2шт.
181435
BOLT,Hex, 1/2" - 20 x 2", Gr 5
SCREW, cap, hex-hd., 1/2-20NF x 2"
2шт.
6
358980R1
TUBE, tie rod (Thompson Products X-232-VN-1)
2шт.
6
359980R1
TUBE
tie rod (Columbus Auto Parts D-X-2774)
2шт.
7
358981R1
CLAMP, tie rod (Threaded end) (Thompson Products X-232-AD)
2шт.
25-118
NUT,1/2"-20, G5
hex., 1/2-20NF
2шт.
181434
BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5
SCREW, cap, hex-hd., 1/2-20NF x 1-7/8"
2шт.
7
359985R1
CLAMP
tie rod (Threaded end) (Columbus Auto Parts S-X-2767)
2шт.
25-118
NUT,1/2"-20, G5
hex., 1/2-20NF
2шт.
181435
BOLT,Hex, 1/2" - 20 x 2", Gr 5
SCREW, cap, hex-hd., 1/2-20NF x 2"
2шт.
8
358353R92
END, tie rod, assembly (R.H. thread) (Thompson Products X-195-VN-13) (Composed of -
2шт.
358900R1
SEAL
COVER
1шт.
NSS
NOT SOLD SEPARAT
END
1шт.
358901R1
SLOTTED NUT
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
8
359981R91
END
tie rod, assembly (R.H. thread) (Columbus Auto Parts D-X-2759) (Composed of -
2шт.
359982R1
COVER
1шт.
NSS
NOT SOLD SEPARAT
END
1шт.
359983R1
NUT
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
9
358979R91
TIE ROD, assembly (Thompson Products X-195-VN) (Optional with 359569R91) (Composed of -
2шт.
358981R1
CLAMP
1шт.
358982R1
CLAMP
1шт.
358353R92
END
1шт.
25-118
NUT,1/2"-20, G5
1шт.
181434
BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5
SCREW
2шт.
358983R91
TIE-ROD
TIE ROD
1шт.
358980R1
TUBE
1шт.
9
359569R91
TIE ROD, assembly (Columbus Auto Parts H-X-2770) (Optional with 358979R91) (Composed of -
2шт.
359985R1
CLAMP
1шт.
359986R1
CLAMP
1шт.
359981R91
END
1шт.
25-118
NUT,1/2"-20, G5
2шт.
181435
BOLT,Hex, 1/2" - 20 x 2", Gr 5
SCREW
2шт.
359984R91
ROD
TIE ROD
1шт.
359980R1
TUBE
1шт.
10
360365R1
ARM, steering gear
1шт.
425-1110
NUT,5/8"-18, G5
3шт.
181485
LEVER
SCREW, cap, hex-hd., 5/8-11NF x 2-1/4"
3шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
3шт.
11
51693D
BAR
WASHER, front frame channel bevel
2шт.
12
51811D
WASHER
front frame channel bevel
2шт.
13
360418R1
SUPPORT, stay rod ball socket
1шт.
25-118
NUT,1/2"-20, G5
hex., 1/2-20NF
2шт.
425-1110
NUT,5/8"-18, G5
2шт.
181435
BOLT,Hex, 1/2" - 20 x 2", Gr 5
SCREW, cap, hex-hd., 1/2-20NF x 2"
2шт.
181484
SCREW, cap, hex-hd., 5/8-18NF x 2"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
14
9020D
SOCKET
ball, stay rod
1шт.
179886
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
SCREW, cap, hex-hd., 1/2-13NC x 1-5/8"
1шт.
15
60762D
SHIM
stay rod ball socket cap
4шт.
16
60763DB
CYLINDER END CAP
CAP, stay rod ball socket
1шт.
179893
BOLT,Hex, 1/2" - 13 x 3", Gr 5
SCREW, cap, hex-hd., 1/2-13NC x 3"
2шт.
17
60566D
PLATE
lock, stay rod ball socket and cap
1шт.
18
10546D
BALL
stay rod
1шт.
19
360405R11
ROD
STAY ROD, w/ball, 10546D
1шт.
427392
NUT, jam, hex., 1-3/8"-12NF
2шт.
118028
WASHER, lock, light, 1-3/8"
2шт.
20
358969R1
BOLSTER, lower
1шт.
21
Q3537
HEADED PIN,3/8" x 4 1/8"
PIN, headed, locking, 3/8 x 4-1/8" (Front axle pivot)
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
179959
SCREW, cap, hex-hd., 3/4-10NC x 3-3/4"
2шт.
179955
SCREW, cap, hex-hd., 3/4-10NC x 2-3/4"
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
22
358971R1
ARM, steering knuckle
2шт.
425-1110
NUT,5/8"-18, G5
2шт.
181488
SCREW, cap, hex-hd., 5/8-18NF x 3"
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
23
357349R91
THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W
thrust, steering knuckle pivot
2шт.
24
55412D
WASHER
WASHER, felt, steering knuckle pivot
2шт.
25
40093D
WOODRUFF KEY,#127, 1/4" x 2 1/8", HT
KEY, steering knuckle arm
2шт.
26
48541D
SHIELD
dust, front wheel
2шт.
27
50270D
SPACER
bearing, front wheel
2шт.
28
50259D
WASHER
WASHER, felt, front wheel
2шт.
29
48539D
OIL SEAL, front wheel (Optional with 358778R91 or 358817R91)
2шт.
29
358778R91
OIL SEAL
front wheel (Optional with 48539D or 358817R91)
2шт.
29
358817R91
OIL SEAL
front wheel (Optional with 48539D or 358778R91)
2шт.
30
360420R91
KNUCKLE, steering (R.H.), assembly (Composed of -
1шт.
360421R1
KNUCKLE
1шт.
358778R91
OIL SEAL
1шт.
360409R1
PIN
1шт.
48541D
SHIELD
1шт.
50270D
SPACER
1шт.
50259D
WASHER
WASHER
1шт.
108643
COTTER PIN,5/32" x 1 3/8"
Pin, Split (Cotter), 5/32" x 1 3/8"
1шт.
31
358958R1
BUSHING
steering knuckle pivot
4шт.
32
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
FITTING, lubrication, 90 degree elbow, 1/8" (Steering knuckle pivot pin) (Optional with 109354)
4шт.
32
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
FITTING, lubrication, 90 degree elbow, 1/8" (Steering knuckle pivot pin) (Optional with 109462)
4шт.
33
360403R91
EXTENSION, front axle
2шт.
34
358976R11
FRONT AXLE
AXLE, front, w/two bushings, 48841D
1шт.
35
48841D
BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L
front axle pivot pin
2шт.
36
358978R1
PIN
pivot, front axle
1шт.
193-12
LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 1/2"
2шт.
37
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, (Front axle pivot pin) (Optional with 110347) 1/4"-28 NPT x .54" lg
1шт.
193-12
LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 1/2"
2шт.
37
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
FITTING, lubrication, straight, 1/4" (Front axle pivot pin) (Optional with 109454)
1шт.
193-12
LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 1/2"
2шт.
38
350557R1
PIN
front axle clamp
2шт.
193-12
LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 1/2"
2шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
2шт.
193-12
LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 1/2"
2шт.
39
350558R1
BOLT
front axle clamp
4шт.
193-12
LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 1/2"
2шт.
103031
TROUGH
NUT, hex., 3/4-16NF
4шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
40
350556R1
CLAMP
front axle
4шт.
41
360419R91
KNUCKLE, steering (L.H.), assembly (Composed of -
1шт.
360421R1
KNUCKLE (NSS)
1шт.
358778R91
OIL SEAL
1шт.
360409R1
PIN (NSS)
1шт.
48541D
SHIELD
1шт.
50270D
SPACER
1шт.
50259D
WASHER
WASHER
1шт.
108643
COTTER PIN,5/32" x 1 3/8"
Pin, Split (Cotter), 5/32" x 1 3/8"
1шт.
10880K
BEARING
cone, front wheel inner (Optional with 352389R1 or 353523R92) (Illustrated with front wheel)
2шт.
