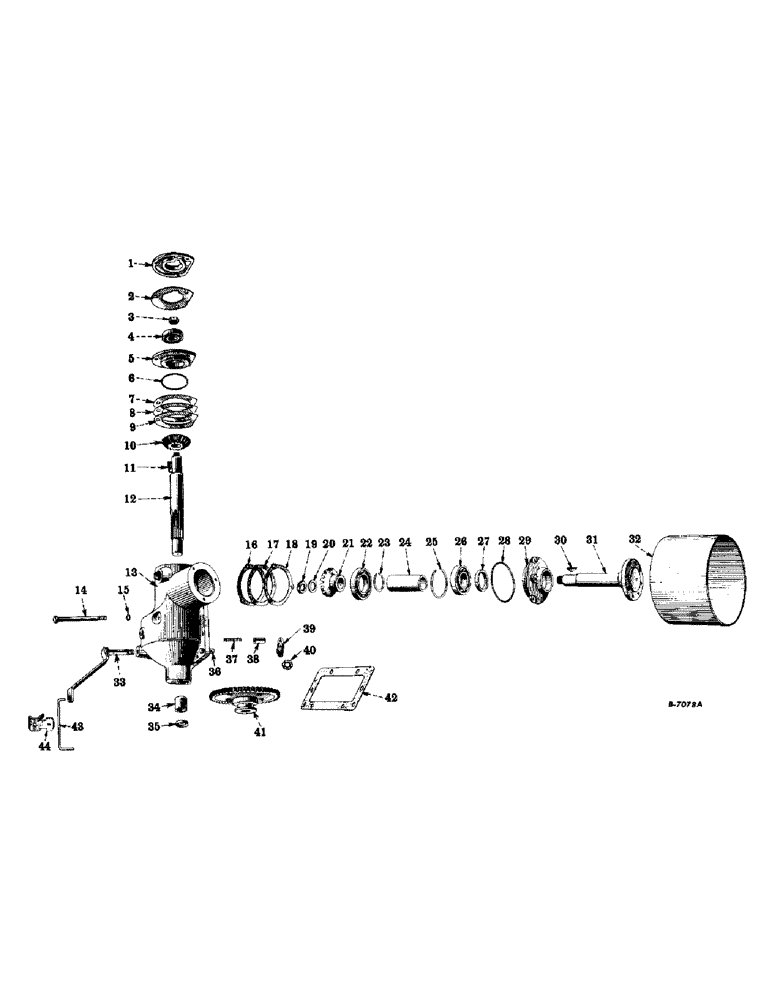

Запчасти Case IH SUPER-H (211) - ATTACHMENTS, BELT PULLEY, SPECIAL Attachments

358222R92

ATTACHMENT, belt pulley

1шт.

1

358231R1

COVER, belt pulley drive shaft bearing cage

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

2

358232R1

GASKET, belt pulley drive shaft bearing cage cover

1шт.

3

357187R1

NUT, retainer, pulley drive bevel pinion

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

PIN, Split (Cotter), 3/16" x 1 3/4"

1шт.

4

ST204A

BALL BEARING,35mm ID x 71.99mm OD x 17mm W

BEARING, ball, belt pulley drive shaft (IH-L-235)

1шт.

5

358226R1

CAGE, belt pulley drive shaft bearing

1шт.

6

358227R1

RING

seal, pulley drive shaft bearing cage

1шт.

7

358230R1

SHIM, belt pulley drive shaft bearing cage, light

1шт.

8

358229R1

SHIM, belt pulley drive shaft bearing cage, medium

1шт.

9

358228R1

SHIM, belt pulley drive shaft bearing cage, heavy

1шт.

10

358225R1

PINION, belt pulley drive bevel (15 teeth)

1шт.

11

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

KEY, woodruff, ni-stl., no. 126, 3/16 x 2-1/8" (Pulley drive bevel pinion)

1шт.

12

358224R1

SHAFT, belt pulley drive

1шт.

13

358223R11

HOUSING, belt pulley drive, w/bushing, 49143D and plug, 45499D

1шт.

217-442

PLUG,3/4" - 14

pipe, sq-hd., 3/4"

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/2"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

496-21047

WASHER

plain, 15/32" I.D. x 59/64" O.D. x no. 16 ga.

2шт.

14

12818R1

SCREW, cap, hex-hd., 7/16-14NC x 6-1/4"

2шт.

15

52999D

WASHER

GASKET, belt pulley drive housing bolt

2шт.

16

358240R1

SHIM, belt pulley shaft bearing cage, heavy

1шт.

17

358241R1

SHIM, belt pulley shaft bearing cage, medium

1шт.

18

358242R1

SHIM, belt pulley shaft bearing cage, light

1шт.

19

70120D

SLOTTED NUT,7/8"-14

NUT, retainer, pulley shaft bevel gear

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

20

358235R1

WASHER, retaining, belt pulley shaft bevel gear

1шт.

21

358234R1

GEAR, bevel, belt pulley shaft (17 teeth)

1шт.

22

ST278

BEARING, BALL,49.99mm ID x 90mm OD x 20mm W

belt pulley shaft, inner (IH-L-250)

1шт.

23

358236R1

RING

snap, belt pulley shaft bearing, inner

1шт.

24

358237R1

SPACER, belt pulley shaft bearing

1шт.

25

49253D

RING, snap, belt pulley shaft bearing, outer

1шт.

26

ST206

BEARING, BALL,40mm ID x 90mm OD x 23mm W

belt pulley shaft, outer (IH-L-340)

1шт.

27

49177D

SEAL

OIL SEAL, belt pulley shaft (Optional with 358783R91 or 358822R91)

1шт.

27

358783R91

OIL SEAL

belt pulley shaft (Optional with 49177D or 358822R91)

1шт.

27

358822R91

OIL SEAL

belt pulley shaft (Optional with 49177D or 358783R91)

1шт.

28

358239R1

RING

seal, belt pulley shaft bearing cage

1шт.

29

358238R11

CAGE, belt pulley shaft bearing, w/oil seal, 49177D and ring, 358239R1

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

30

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

KEY, woodruff, ni-stl., no. 126, 3/16 x 2-1/8" (Belt pulley shaft)

1шт.

31

358233R1

SHAFT, belt pulley

1шт.

32

358398R91

PULLEY, belt (9-3/4" dia. x 7-1/2" face)

1шт.

32

356940R1

PULLEY, belt (9-3/4" dia. x 7-1/2" face)

1шт.

32

358397R91

PULLEY, belt (11" dia. x 7-1/2" face)

1шт.

32

356942R1

PULLEY, belt (11" dia. x 7-1/2" face)

1шт.

32

356941R1

PULLEY, belt (12" dia. x 8-1/2" face)

1шт.

32

358597R91

PULLEY, belt (12" dia. x 8-1/2" face)

1шт.

114774

NUT, hex., 1/2-13NC

4шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-5/8"

4шт.

33

60841DX

LEVER, control, belt pulley, w/shaft and shaft plate

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

34

49143D

BUSHING

belt pulley drive shaft

1шт.

35

45499D

PLUG, cup, belt pulley drive shaft hole

1шт.

36

50055D

PIN, dowel, belt pulley drive housing

2шт.

37

23921D

SPRING, belt pulley shifter poppet

1шт.

38

45517D

POPPET, belt pulley shifter

1шт.

39

51648DA

ARM, belt pulley shifter

1шт.

40

70119D

NUT

belt pulley control lever shaft

1шт.

41

51564DB

GEAR, belt pulley drive shifter (50 teeth) (Optional with 357458R1)

1шт.

41

357458R1

GEAR, belt pulley drive shifter (50 teeth) (Optional with 51564DB)

1шт.

42

49619DA

GASKET, belt pulley drive housing

1шт.

43

358244R1

ROD, belt pulley control

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

44

359646R1

BRACKET, belt pulley control rod (Tractors equipped with hydraulic lift-all with engine driven pump)

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, cap, hex-hd., 7/16"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.
