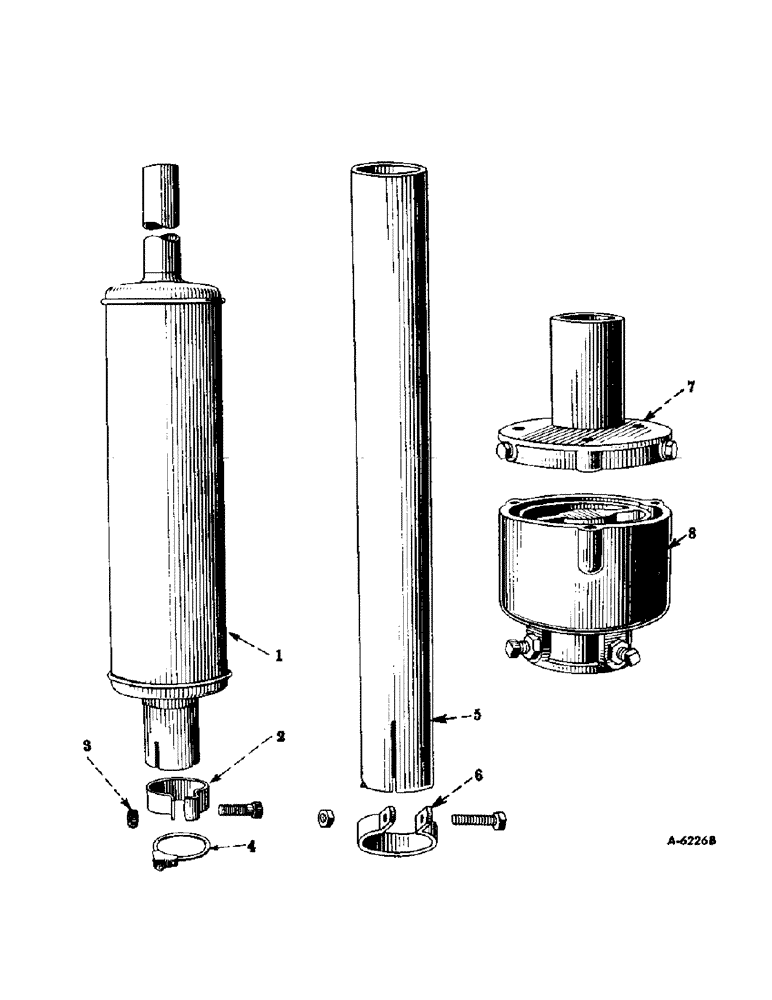

Запчасти Case IH SUPER-H (206) - ATTACHMENTS, EXHAUST MUFFLER, EXHAUST PIPE EXTENSION AND SPARK ARRESTER, SPECIAL Attachments

51071DC

ATTACHMENT, exhaust muffler

1шт.

53556D

ATTACHMENT, exhaust pipe extension

1шт.

51579D

ATTACHMENT, spark arrester

1шт.

1

350600R94

MUFFLER, exhaust (Optional with 355869R91)

1шт.

1

355869R91

MUFFLER

exhaust (Optional with 350600R94)

1шт.

2

350602R1

CLAMP

exhaust muffler (Optional with 353837R91)

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 1/2-13NC x 1-3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

220068

NUT, hex, 1/2-13NC (Exhaust muffler clamp bolt) (Used on clamp, 350602R1)

1шт.

4

353837R91

CLAMP

exhaust muffler (Optional with 350602R1)

1шт.

5

51951D

PIPE

extension, exhaust

1шт.

6

31790DA

CLAMP

exhaust pipe extension

1шт.

280136

NUT,3/8"-16, G8

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

8163D

TOP, spark arrester

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

3шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

3шт.

8

8162D

BODY, spark arrester

1шт.

218438

NUT, jam, hex., 3/8-16NC

2шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8" x 1" N.C. square head (cup point)

2шт.
