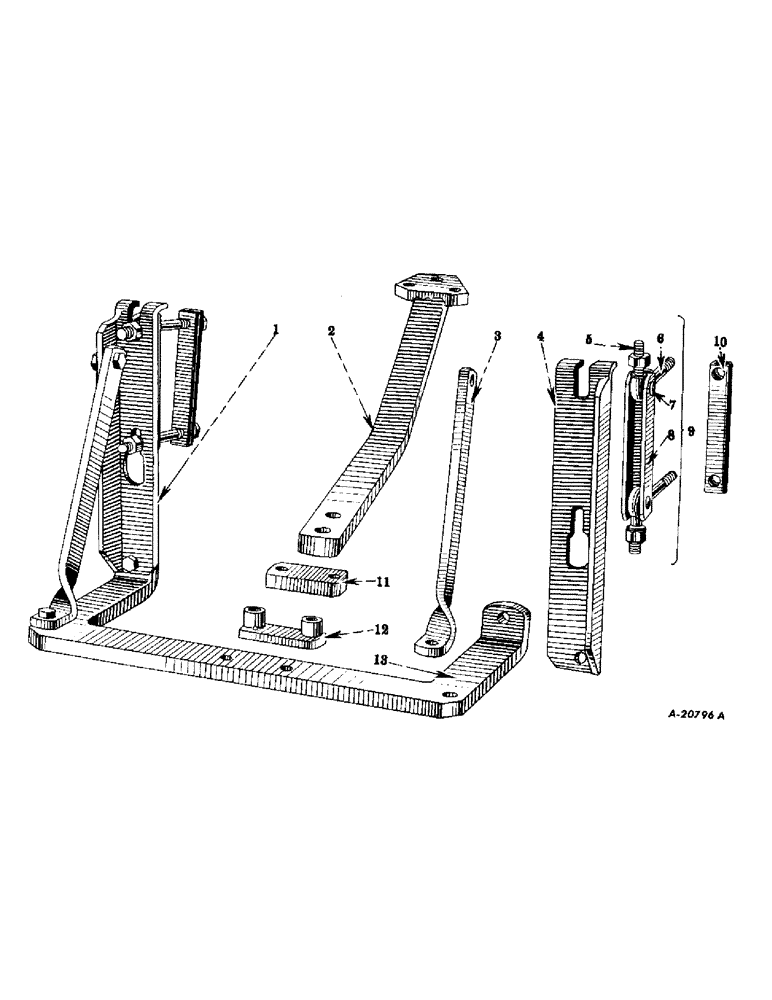

Запчасти Case IH SUPER-H (162) - CHASSIS, QUICK ATTACHABLE HIGH-HITCH, HEAVY-DUTY DRAWBAR, SPECIAL, SUPER "HV" (12) - CHASSIS

353286R92

DRAWBAR

ATTACHMENT, quick attachable high hitch heavy drawbar

1шт.

1

353276R1

ANGLE, drawbar, L.H.

1шт.

2

353282R11

TONGUE, drawbar, w/plate

1шт.

179953

SCREW, cap, hex-hd., 3/4-10NC x 2-1/4"

2шт.

179958

SCREW, cap, hex-hd., 3/4-10NC x 3-1/2"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

3

353275R1

BRACE, drawbar

2шт.

114821

NUT, hex., 3/4-10NC

4шт.

179951

SCREW, cap, hex-hd., 3/4-10NC x 1-7/8"

2шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

353277R1

ANGLE, drawbar, R.H.

1шт.

5

353272R21

BOLT,W/Nut & Washer, 3/4" - 16 x 3 5/16"

EYEBOLT, drawbar attaching channel, w/nut, 357790R1 and washer, Q1552

4шт.

357790R1

NUT

hex., 3/4-16NF (Heavy)

4шт.

Q1552

WASHER

plain, 25/32" I.D. x 1-1/4" O.D. x no. 10 ga.

4шт.

6

43685D

BOLT

drawbar attaching channel

4шт.

103031

TROUGH

NUT, hex., 3/4-10NC

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

43690D

PIN

drawbar attaching channel

4шт.

8

PO26267

CHANNEL, attaching drawbar

2шт.

9

353273R92

CHANNEL, attaching, drawbar, assembly (Composed of -

2шт.

43685D

BOLT

2шт.

PO26267

CHANNEL

1шт.

353272R21

BOLT,W/Nut & Washer, 3/4" - 16 x 3 5/16"

EYEBOLT

2шт.

103031

TROUGH

NUT

2шт.

43690D

PIN

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

10

PO26224

CLAMP, attaching, drawbar

2шт.

11

353274R1

STRAP, drawbar tongue

1шт.

114821

NUT, hex., 3/4-10NC

2шт.

179963

HUB

SCREW, cap, hex-hd., 3/4-10NC x 4-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

12

353280R11

SHIM, drawbar tongue, w/two spacers

1шт.

13

353278R11

DRAWBAR

1шт.

114821

NUT, hex., 3/4-10NC

2шт.

179953

SCREW, cap, hex-hd., 3/4-10NC x 2-1/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
