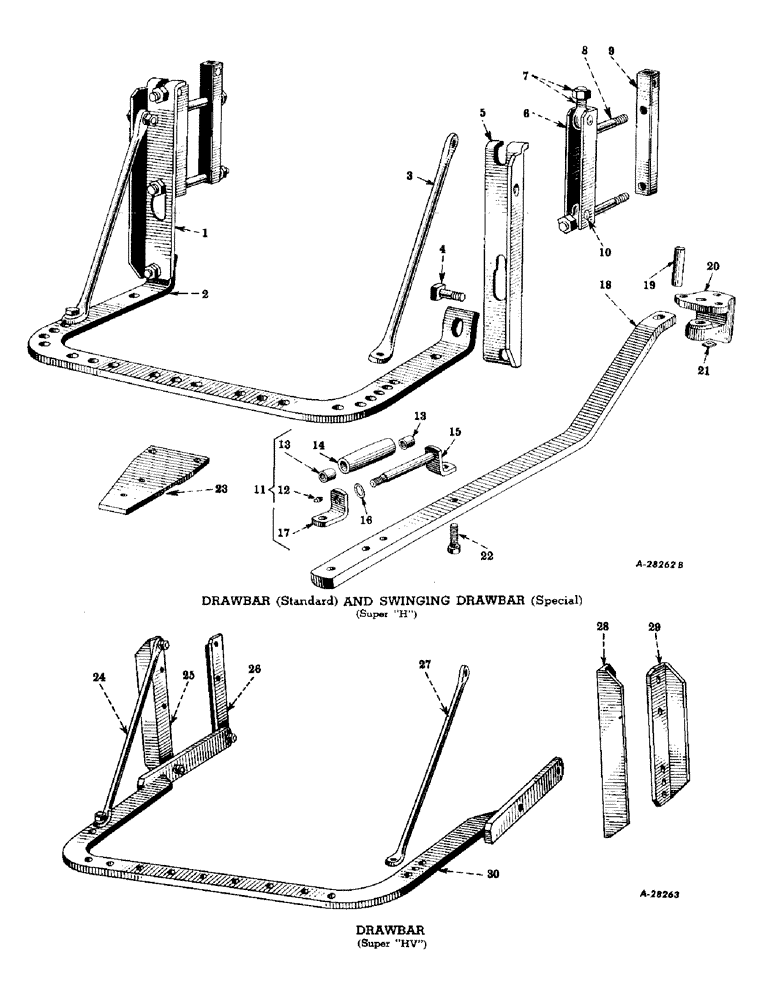

Запчасти Case IH SUPER-H (158) - CHASSIS, DRAWBAR, STANDARD, SUPER "H" (12) - CHASSIS

69044DC

UNIT, drawbar, assembly (Ref.# 1 to 10 inclusive)

1шт.

1

57228D

ANGLE, drawbar, L.H.

1шт.

2

57227DB

DRAWBAR (Standard)

1шт.

3

57233DA

ROD

BRACE, drawbar

2шт.

114821

NUT, hex., 3/4-10NC

4шт.

179953

SCREW, cap, hex-hd., 3/4-10NC x 2-1/4"

2шт.

179950

SCREW, cap, hex-hd., 3/4-10NC x 1-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

41111D

BOLT,3/4" - 10 x 2 3/4"

drawbar pivot

2шт.

114821

NUT, hex., 3/4-10NC

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

57229D

ANGLE, drawbar, R.H.

1шт.

6

51716DXB

CHANNEL

attaching, drawbar, assembly (Composed of -

2шт.

43685D

BOLT

2шт.

51716D

CHANNEL

1шт.

48291DAX

BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"

EYEBOLT

2шт.

103031

TROUGH

NUT

2шт.

43690D

PIN

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

7

48291DAX

BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"

EYEBOLT, drawbar, w/nut, 357790R1 and washer, Q1552

4шт.

357790R1

NUT

hex., heavy

4шт.

Q1552

WASHER

plain, 25/32" I.D. x 1-1/4" O.D. x no. 10 ga.

4шт.

8

43685D

BOLT

attaching, drawbar

4шт.

103031

TROUGH

NUT, hex., 3/4-16NF

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

51715DA

CLAMP, attaching, drawbar

2шт.

10

43690D

PIN

drawbar, eyebolt

4шт.

49205DC

ATTACHMENT, swinging drawbar, special, super "H"

1шт.

11

356563R91

ROLLER

swinging drawbar, assembly (Composed of -, special, super "H"

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Swinging drawbar, special, super "H" 1/8"-27 x .66 lg

1шт.

114821

NUT, swinging drawbar, special, super "H"

1шт.

356562R11

ROLLER

swinging drawbar, special, super "H"

1шт.

356561R11

SHAFT

swinging drawbar, special, super "H"

1шт.

356565R1

SUPPORT

swinging drawbar, special, super "H"

1шт.

358002R1

WASHER

swinging drawbar, special, super "H"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar, special, super "H" 3/4"

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512), swinging drawbar, special, super "H" 1/8"-27 x .66 lg

1шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Optional with 109461), swinging drawbar, special, super "H"

1шт.

13

356564R1

BUSHING

swinging drawbar roller, special, super "H"

2шт.

14

356562R11

ROLLER

swinging drawbar, w/two bushing, 356564R1, special, super "H"

1шт.

15

356561R11

SHAFT

swinging drawbar, w/support, special, super "H"

1шт.

13361R1

BOLT, machine, sq-hd., 5/8-11NC x 2-1/4", swinging drawbar, special, super "H"

1шт.

114820

NUT, hex., 5/8-11NC, swinging drawbar, special, super "H"

1шт.

114821

NUT, hex., 3/4-10NC, swinging drawbar, special, super "H"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Swinging drawbar, Special, Super "H" 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar, special, super "H" 3/4"

1шт.

16

358002R1

WASHER

swinging drawbar roller shaft, front (29/32" I.D. x 1-1/2" O.D. x no. 16 ga.), special, super "H"

1шт.

17

356565R1

SUPPORT

swinging drawbar roller shaft, front, special, super "H"

1шт.

13361R1

BOLT, machine, sq-hd., 5/8-11NC x 2-1/4", swinging drawbar, special, super "H"

1шт.

114820

NUT, hex., 5/8-11NC, swinging drawbar, special, super "H"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Swinging drawbar, Special, Super "H" 5/8"

1шт.

18

357530R1

DRAWBAR, swinging, special, super "H"

1шт.

19

57654D

PIVOT PIN

PIN, swining drawbar pivot, special, super "H"

1шт.

20

8785D

SUPPORT, swinging drawbar pivot, special, super "H"

1шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", swinging drawbar pivot, special, super "H"

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar pivot, special, super "H" 3/4"

3шт.

21

57655D

PLATE

lock, swinging drawbar pivot pin, special, super "H"

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Swinging drawbar pivot, special, super "H" Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Swinging drawbar pivot, special, super "H" 3/8"

1шт.

22

179952

SCREW, cap, hex-hd., 3/4-10NC x 2" (Used as drawbar roller stop), swinging drawbar pivot, special, super "H"

2шт.

105611

NUT

sq., 3/4-10NC, swinging drawbar pivot, special, super "H"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar pivot, special, super "H" 3/4"

2шт.

23

66426D

EXTENSION, drawbar (For tractor equipped with power take-off attachment), swinging drawbar pivot, special, super "H"

1шт.

114821

NUT, hex., 3/4-10NC, swinging drawbar pivot, special, super "H"

2шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2", swinging drawbar pivot, special, super "H"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar pivot, special, super "H" 3/4"

2шт.

24

65143D

BRACE, drawbar, L.H., swinging drawbar pivot, special, super "H"

1шт.

114821

NUT, hex., 3/4-10NC, swinging drawbar pivot, special, super "H"

2шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", swinging drawbar pivot, special, super "H"

1шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2", swinging drawbar pivot, special, super "H"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar pivot, special, super "H" 3/4"

2шт.

25

65141D

BRACKET, drawbar, rear, L.H., swinging drawbar pivot, special, super "H"

1шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", swinging drawbar pivot, special, super "H"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar pivot, special, super "H" 3/4"

2шт.

26

65139D

BRACKET, drawbar, front, L.H., swinging drawbar pivot, special, super "H"

1шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", swinging drawbar pivot, special, super "H"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar pivot, special, super "H" 3/4"

2шт.

27

65144D

BRACE, drawbar, R.H., swinging drawbar pivot, special, super "H"

1шт.

114821

NUT, hex., 3/4-10NC, swinging drawbar pivot, special, super "H"

2шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", swinging drawbar pivot, special, super "H"

1шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2", swinging drawbar pivot, special, super "H"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar pivot, special, super "H" 3/4"

2шт.

28

65142D

BRACKET, drawbar, rear, R.H., swinging drawbar pivot, special, super "H"

1шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", swinging drawbar pivot, special, super "H"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar pivot, special, super "H" 3/4"

2шт.

29

65140D

BRACKET, drawbar, front, R.H., swinging drawbar pivot, special, super "H"

1шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", swinging drawbar pivot, special, super "H"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar pivot, special, super "H" 3/4"

2шт.

30

65137DX

DRAWBAR, swinging drawbar pivot, special, super "H"

1шт.

114821

NUT, hex., 3/4-10NC, swinging drawbar pivot, special, super "H"

4шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2", swinging drawbar pivot, special, super "H"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar pivot, special, super "H" 3/4"

4шт.
