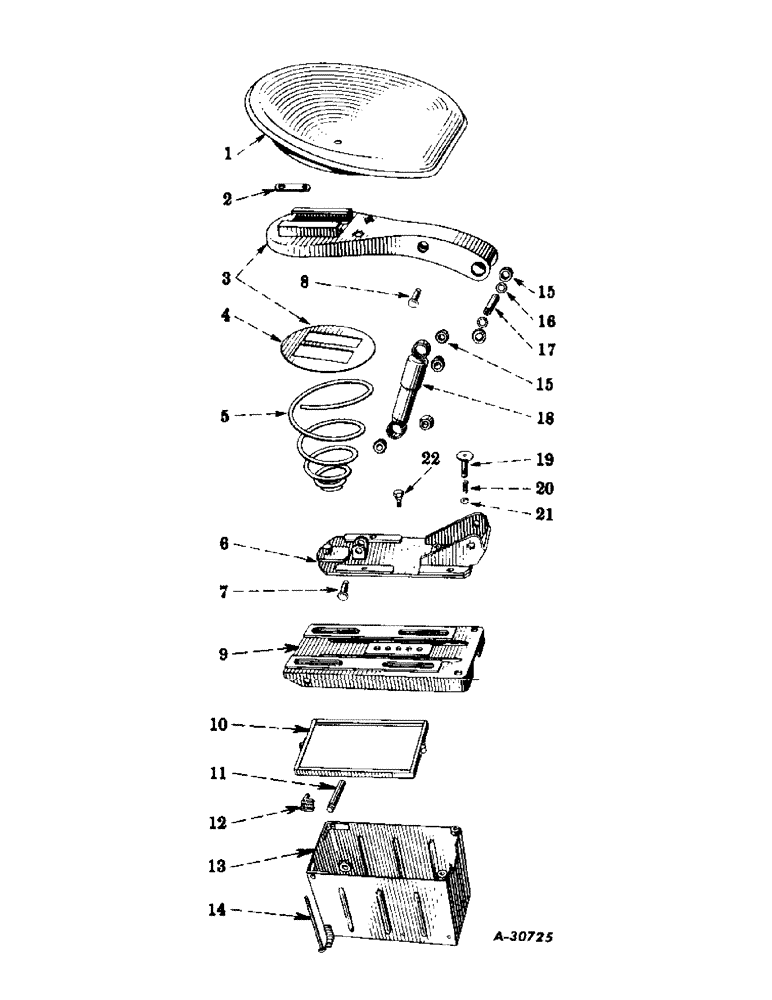

Запчасти Case IH SUPER-H (152) - CHASSIS, SEAT, SEAT SUPPORT AND TOOL BOX, TRACTORS 19234 UP (12) - CHASSIS

1

351925R93

SEAT

upholstered

1шт.

1

357518R91

DRIVER SEAT

SEAT, deluxe upholstered

1шт.

181392

BOLT,Hex, 7/16" - 20 x 11/16"

SCREW, cap, hex-hd., 7/16-20NF x 11/16"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

2

352118R1

CLIP, trip rope

1шт.

3

352599R94

BRACKET, seat support, w/Gasket, 352100R1

1шт.

4

352100R1

GASKET

conical spring

1шт.

5

352598R2

SPRING

conical (For medium weight operators)

1шт.

5

354670R2

VALVE SPRING

SPRING, seat, special (For heavy weight operators)

1шт.

5

354671R2

SPRING

light, special (For light weight operators)

1шт.

6

352601R91

PLATE, seat mounting

1шт.

7

351751R1

BOLT,7/16" - 20 x 2 7/32"

shock absorber anchor, lower

1шт.

103027

NUT, hex., 7/16-20NF

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

8

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

BOLT, shock absorber anchor, upper, hex-hd., 7/16-20NF x 3-1/2"

1шт.

354732R1

NUT, lock, shock absorber anchor bolt (Upper)

1шт.

9

358275R11

COVER, battery box

1шт.

13252R1

SCREW,1/2" - 13 x 7/8"

BOLT, mach., sq-hd., 1/2-13NC x 7/8"

2шт.

220068

NUT, hex., 1/2-13NC

2шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

359502R11

CLAMP, battery hold-down

1шт.

11

358287R1

SUPPORT, rear light

1шт.

12

358281R1

RUBBER, corner, battery hold-down

4шт.

13

359500R91

BOX, battery

1шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3"

2шт.

179925

FLEXIBLE HOSE

SCREW, cap, hex-hd., 5/8-11NC x 1-1/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

359503R1

BOLT, battery hold-down

2шт.

129-419

WING NUT,5/16"-18

NUT, wing, 5/16-18NC

2шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16 x 1/2"

2шт.

28950D

WASHER

plain, 21/64" I.D. x 5/8" O.D. x No. 16 ga.

2шт.

15

72696R1

SHOCK ABSORBER

BUSHING, shock absorber and seat pivot

6шт.

16

352650R1

WASHER,15.93mm ID x 23.02mm OD x 2.38mm Thk

seat support pivot rod

2шт.

17

352616R1

PIN,17.46mm OD x 88.9mm L

ROD, seat support pivot

1шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 1"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

351750R93

SHOCK ABSORBER

ABSORBER, shock

1шт.

19

352600R91

PIN

LOCATOR, seat

1шт.

20

352105R1

SPRING

seat locator

1шт.

21

352122R1

RETAINER, seat locator

1шт.

22

358268R1

BOLT

seat mounting

4шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

353649R1

WASHER, steel, 21/32" I.D. x 1-5/16" O.D. x No. 13 ga.

4шт.

357820R92

ATTACHMENT, deluxe type upholstered seat (Consists of Seat, 357518R91)

1шт.

351440R92

ATTACHMENT, detachable seat pad (Consists of one Pad, 351438R92 and one instruction Pamphlet)

1шт.

354672R92

ATTACHMENT, seat spring (Consists of one Spring, 354670R2) (For heavy weight operators)

1шт.

354673R92

ATTACHMENT, seat spring (Consists of one Spring, 354671R2) (For light weight operators)

1шт.

356890R92

ATTACHMENT, tilt back seat bracket (For hydraulic seat) (Illustrated with Hydraulic Seat Attachment)

1шт.

351438R92

PAD, seat, detachable

1шт.

353309R1

SPACER

seat mounting

4шт.

354731R1

TUBE

SPACER, shock absorber bushing

2шт.

354730R1

TUBE,.625" OD, 2.25" Length

shock absorber bushing

1шт.

352347R95

UNIT, seat suspension, assembly (Composed of -

1шт.

351750R93

SHOCK ABSORBER

ABSORBER

1шт.

351751R1

BOLT,7/16" - 20 x 2 7/32"

1шт.

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

BOLT

1шт.

352599R94

BRACKET

1шт.

72696R1

SHOCK ABSORBER

BUSHING

6шт.

352600R91

PIN

LOCATOR

1шт.

354732R1

NUT

1шт.

103027

NUT

1шт.

352601R91

PLATE

1шт.

352122R1

RETAINER

1шт.

352616R1

PIN,17.46mm OD x 88.9mm L

ROD

1шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW

2шт.

354731R1

TUBE

SPACER

2шт.

352105R1

SPRING

1шт.

352598R1

SPRING

1шт.

354730R1

TUBE,.625" OD, 2.25" Length

1шт.

352650R1

WASHER,15.93mm ID x 23.02mm OD x 2.38mm Thk

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
