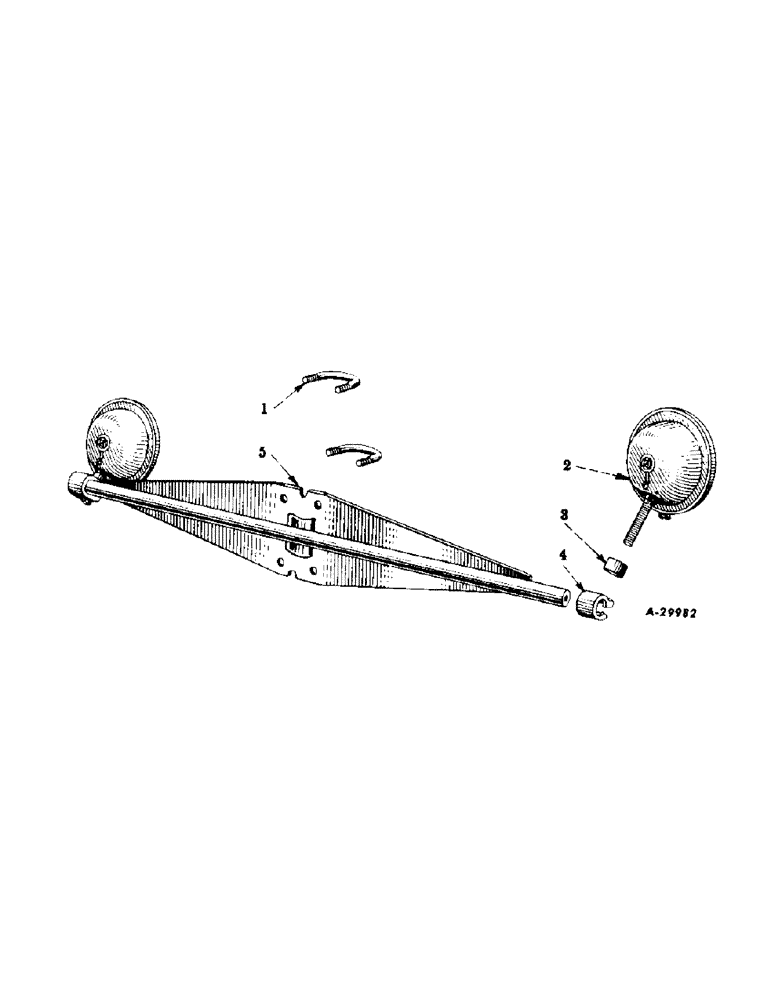

Запчасти Case IH SUPER M-TA (177) - ELECTRICAL SYSTEM - DIESEL ENGINE, HEADLIGHT OR REAR LIGHT SUPPORT (06) - ELECTRICAL SYSTEMS

1

59468D

U-BOLT, headlight support

2шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

61225DB

LAMP

HEADLIGHT OR REAR LIGHT, assembly (guide lamp 873-25) (conventional) (for components see list of parts under detail of "headlights or rear lights" unit)

3шт.

2

357885R91

HEADLIGHT OR REAR LIGHT, sealed beam, assembly (guide lamp 926116) (for components see list of parts under detail of "headlights or rear lights" unit)

3шт.

220068

NUT, hex., 1/2-13NC

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

3

49069D

SPACER

headlight or rear light

3шт.

4

350920R1

CLAMP

headlight or rear light

3шт.

5

51675DC

SUPPORT, headlight

1шт.

9231DA

SUPPORT, rear light (optional with 353642R11), Serial Range: F-501-F-28174

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

353642R11

SUPPORT, rear light (optional with 9231DA), Serial Range: F-501-F-28174

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/4"

1шт.

358287R1

SUPPORT, rear light (illustrated with seat and seat support), F-28175 up

1шт.
