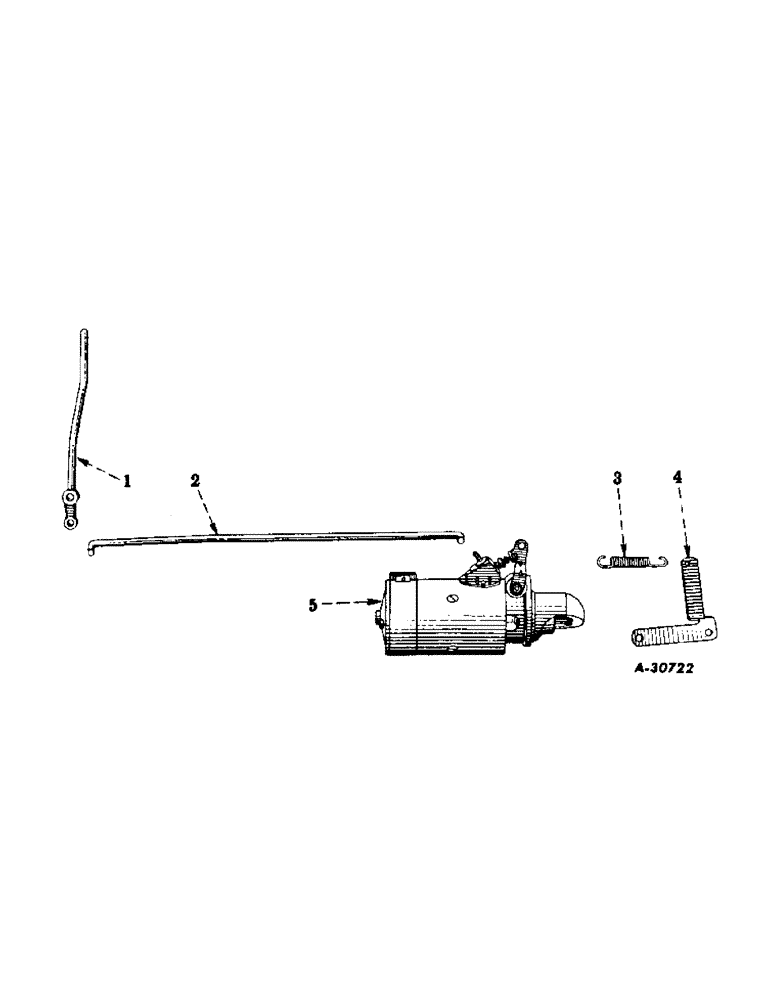

Запчасти Case IH SUPER M-TA (169) - ELECTRICAL SYSTEM, DIESEL ENGINE, CRANKING MOTOR, POSITIVE ENGAGEMENT ROD, SPRING AND BRACKET (06) - ELECTRICAL SYSTEMS

1

358603R11

LEVER, starting switch control

1шт.

2

358600R1

ROD, starting switch control, Serial Range: F-29175-F-52627

1шт.

2

358924R1

ROD, starting switch contro, 60001 up

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

21933K

WASHER, plain, 15/32" I.D. x 13/16" O.D. x no. 16 ga.

2шт.

3

357945R1

SPRING, starting switch control rod return

1шт.

4

357902R1

BRACKET, starting switch return

1шт.

NLS

NO LONGER SERVICED

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

357908R91

MOTOR, cranking (Delco-Remy 1108982) (for components see list of parts under detail of "cranking motor")

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
