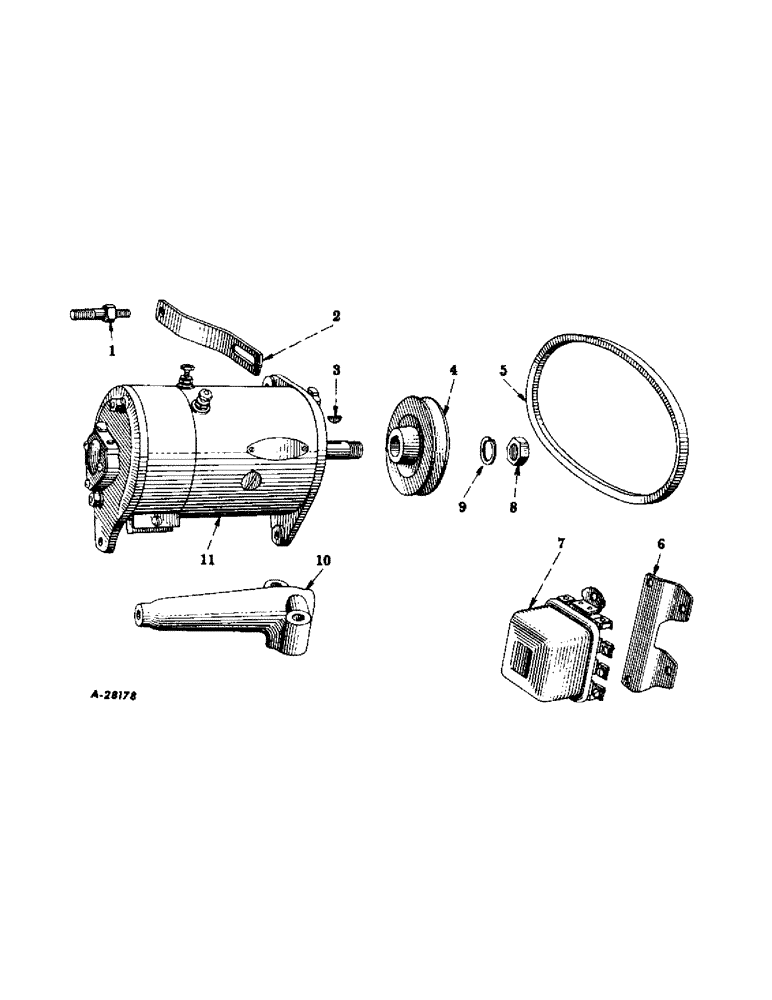

Запчасти Case IH SUPER M-TA (165) - ELECTRICAL SYSTEM, DIESEL ENGINE, GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

103813A1R

REMAN-GENERATOR

3 Brush

1шт.

103813A1C

CORE-GENERATOR

Return Number, 12 VOLT, 11 AMP Generator

1шт.

1

47877D

SPARE PART STUD, generator brace

1шт.

103026

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

355696R1

SPARE PART BRACE, generator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

95-11034

WASHER,1/4"

WASHER, plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

3

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Drive end #5, 1/8" x 5/8", HT

1шт.

4

355697R2

SPARE PART PULLEY, generator

1шт.

5

52318DA

V-BELT,0.55" W

Generator

1шт.

6

355700R1

SPARE PART BRACKET, voltage regulator mounting, Serial Range: F-501-F-28174

1шт.

13000R1

NUT, hex., 1/4-20NC

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

355701R91

REGULATOR

REGULATOR, voltage (Delco-Remy 1118381) (for components see list of parts under "voltage regulator")

1шт.

13000R1

NUT, hex., 1/4-20NC

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 1/4", F-501 to F-28174

2шт.

179806

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 2-1/4", F-28175 up

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

354490R1

SPARE PART NUT, drive end shaft

1шт.

9

139679H

WASHER, lock, driven end shaft nut

1шт.

10

355695R1

SPARE PART BRACKET, generator

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

BOLT, Hex, 7/16"-14 x 2", G5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

11

355694R91

SPARE PART GENERATOR, w/o pulley, assembly (Delco-Remy 1100964) (for components see list of parts under detail of "generator")

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

355694R91

SPARE PART GENERATOR, assembly (Mfr. 1100964)

1шт.

.

ARM, brush (Mfr. 1850759)

3шт.

.

WASHER, plain, brush arm space (Mfr. 1857412)

3шт.

.

ARMATURE (Mfr. 1913735)

1шт.

.

BAND, cover (Mfr. 1872638)

1шт.

.

NUT, cover band (Mfr. 120614)

1шт.

.

SCREW, cover band (Mfr. 132930)

1шт.

.

BEARING, ball (drive end) (Mfr. 954378)

1шт.

.

BOLT, thru (Mfr. 815018)

2шт.

.

WASHER, lock, thru bolt (Mfr. 120638)

2шт.

.

BRUSH, main (Mfr. 1866148)

2шт.

.

BRUSH, third (Mfr. 1850768)

1шт.

.

BUSHING, commutator end (Mfr. 812823)

1шт.

.

COIL, field (Mfr. 1913732)

1шт.

.

CLIP, terminal (to brush) (Mfr. 200182)

1шт.

.

COLLAR, space (outside drive end) (Mfr. 817224)

1шт.

.

FRAME, commutator end, w/pin, assembly (Mfr. 1913564)

1шт.

.

FRAME (drive end) (Mfr. 1838678)

1шт.

.

GASKET, ball bearing retainer plate (Mfr. 1912008)

1шт.

.

KEY, Woodruff (drive end) (Mfr. 124545)

1шт.

.

NUT, shaft (drive end) (Mfr. 1914308)

1шт.

.

WASHER, lock, shaft nut drive end (Mfr. 804000)

1шт.

.

OILER, drive end (Mfr. 1880635)

1шт.

.

OILER, commutator end (Mfr. 1880635)

1шт.

.

PIN, dowel (commutator end) (Mfr. 809062)

1шт.

.

PIN, dowel (Mfr. 809593)

1шт.

.

PLATE, brush (Mfr. 1913565)

1шт.

.

SCREW, brush plate (Mfr. 1886496)

3шт.

.

WASHER, lock, brush plate (Mfr. 121841)

3шт.

.

PLATE, end cover (Mfr. 820524)

1шт.

.

GASKET, end cover (Mfr. 817220)

1шт.

.

SCREW, end cover plate (Mfr. 1886496)

3шт.

.

WASHER, lock, end cover plate (Mfr. 121841)

3шт.

.

PLATE, ball bearing retainer (Mfr. 1911263)

1шт.

.

SCREW, ball bearing retainer plate (Mfr. 1904370)

3шт.

.

WASHER, lock, ball bearing retainer plate (Mfr. 1880781)

3шт.

.

PLATE, retainer, felt washer (Mfr. 819104)

1шт.

.

PLUG, oil hole (commutator end) (Mfr. 1911097)

1шт.

.

SCREW, brush lead (Mfr. 132688)

3шт.

.

WASHER, lock, brush lead attaching screw (Mfr. 1904377)

3шт.

.

SHOE, pole (Mfr. 1914618)

2шт.

.

SCREW, pole shoe (Mfr. 1843646)

2шт.

.

SPRING, brush, main (Mfr. 1850760)

2шт.

.

SPRING, brush, third (Mfr. 1850767)

1шт.

.

STUD (Mfr. 1858751)

1шт.

.

BUSHING, insulating terminal stud (Mfr. 1885090)

2шт.

.

NUT, terminal stud (Mfr. 121743)

4шт.

.

WASHER, insulating terminal stud (Mfr. 1858753)

2шт.

.

WASHER, lock, terminal stud (Mfr. 1904661)

4шт.

.

WASHER, plain, terminal stud (Mfr. 1881409)

2шт.

.

STUD AND LEAD, assembly (Mfr. 1858754)

1шт.

.

WASHER, felt, drive end (Mfr. 809961)

1шт.

.

WASHER, space, inside drive end (Mfr. 809945)

1шт.

.

WICK, commutator end (Mfr. 804076)

1шт.
