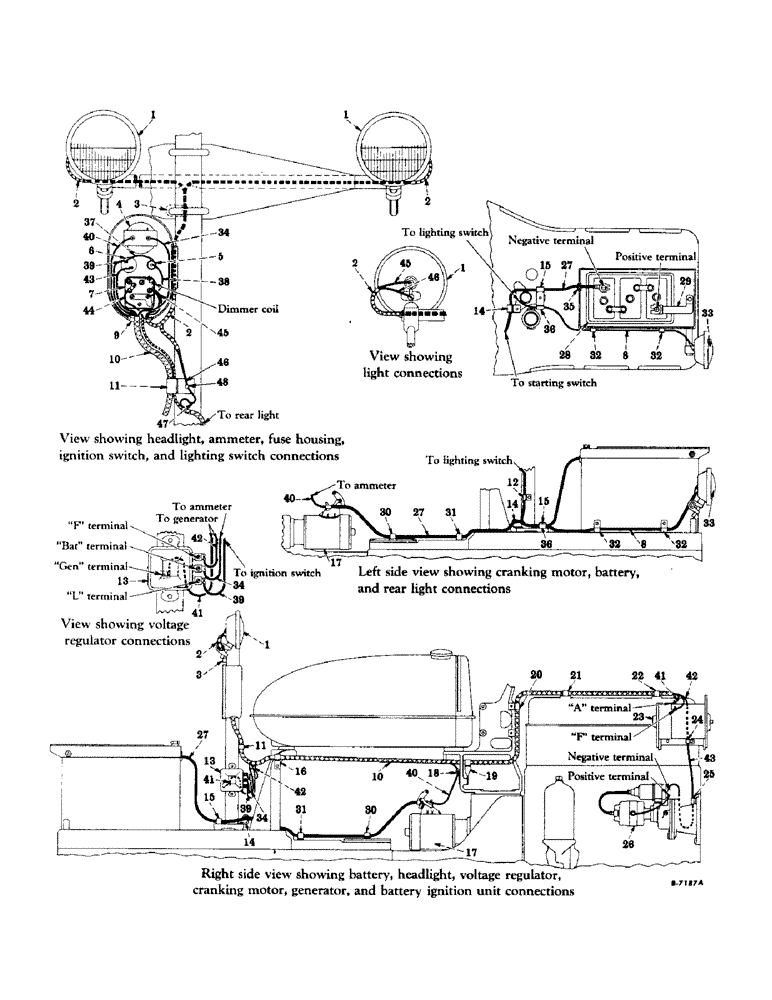

Запчасти Case IH SUPER M-TA (134) - ELECTRICAL SYSTEM, CARBURETED ENGINE, ELECTRICAL STARTING AND LIGHTING, BATTERY IGNITION (06) - ELECTRICAL SYSTEMS

1

357884R91

HEADLIGHT, sealed beam, assembly (guide lamp 926115) (for components see list of parts under detail of "headlights or rear light")

2шт.

220068

NUT, hex., 1/2-13NC

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

358916R91

HARNESS

HARNESS, headlight cable

1шт.

3

350742R1

SPARE PART CLIP, headlight cable harness (on lower "U" bolt of headlight support bracket)

1шт.

4

42383DC

AMMETER

AMMETER (AC-1501438) (includes clamp, 250466R92, four nuts, 120614 and two washers, 120217) (optional with 354473R91)

1шт.

4

354473R91

AMMETER

AMMETER (Rochester 4010-C6) (includes clamp, 352154R91, four nut, 120614, two washers, 120217 and two washers, 352265R1) (optional with 42383DC)

1шт.

4

360053R91

INDICATOR

INDICATOR, charge (Rochester Mfg. 4015-C1) (includes clamp, 360054R91, four nut, 120614, two washers, 120217 and two washers, 352265R1)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

354232R91

BOX

HOUSING, fuse/ w/knob 356445R91 (Bussman Mfg. Co.)

1шт.

6

62801DC

SWITCH

SWITCH, battery ignition (for components see list of parts under detail of "battery ignition switch")

1шт.

7

SWITCH, lighting (Delco 1994038) (for components see list of parts under detail of "lighting switch")

1шт.

8

358915R91

SPARE PART HARNESS, switch to rear light

1шт.

9

52062D

GROMMET

GROMMET (on electrical instrument mounting panel cover)

1шт.

10

358286R91

HARNESS

HARNESS, cable

1шт.

11

56279D

NO LONGER SERVICED

CABLE STRAP/Retired CLIP (on control bracket mounting bolt)

1шт.

12

60937D

SPARE PART CLIP (on regulator lower mounting bolt)

1шт.

13

354234R91

REGULATOR

REGULATOR, voltage (Delco-Remy 1118308) (for components see list of parts under detail of "voltage regulator")

1шт.

14

62511D

SPARE PART CLIP (on steering post base front mounting bolt - L.H. side)

1шт.

15

62512D

SPARE PART CLIP (on steering post base rear mounting bolt)

1шт.

16

56273D

SPARE PART CLIP (on fuel tank rear support)

1шт.

13000R1

NUT, hex., 1/4"

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

351914R1

CLIP

CLIP (rear fuel tank support R.H. mounting bolt) (tractors equipped with hydraulic lift-all attachment, with engine-driven pump)

1шт.

17

357907R91

MOTOR, cranking (Delco-Remy 1108012) (for components see list of parts under detail of "cranking motor")

1шт.

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

NLS

NO LONGER SERVICED

3шт.

110730

LOCK WASHER

WASHER, lock, light, 3/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

142186H

WASHER

WASHER, terminal

1шт.

18

350742R1

SPARE PART CLIP (on fuel tank front support - L.H. side)

1шт.

19

62505D

SPARE PART CLIP (on fuel tank front support)

1шт.

20

355097R1

SPARE PART CLIP (on fuel tank front support)

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

355097R1

SPARE PART CLIP (on rear valve cover stud)

1шт.

22

355097R1

SPARE PART CLIP (on front valve cover stud)

1шт.

23

354237R91

SPARE PART GENERATOR (Delco-Remy 1100501) (for components see list of parts under detail of "generator")

1шт.

24

61387D

SPARE PART CLIP (on generator bracket front mounting bolt)

1шт.

25

61813D

CLIP

SPARE PART CLIP (on distributor bracket - top L.H. mounting bolt)

1шт.

26

357934R91

UNIT, battery ignition (for components see list of parts under detail of "battery ignition" unit)

1шт.

27

358283R91

CABLE

CABLE, battery to starting switch

1шт.

28

61137DC

SPARE PART BATTERY (Auto-Lite 3H-135-R3) (optional with 355779R92)

1шт.

28

355779R92

SPARE PART BATTERY (Globe-Union 3H-1491) (optional with 61137DC)

1шт.

29

358987R91

CABLE

STRAP, Serial Range: battery-ground

1шт.

16247R1

SCREW, cap, hex-hd., 7/16-14NC x 4-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

30

358986R91

CLIP

CLIP (on pulley drive opening cover mounting bolt - L.H. side)

1шт.

31

358986R91

CLIP

CLIP (on rear frame cover, L.H. side)

1шт.

32

358431R1

SPARE PART CLIP (on battery box)

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

357884R91

LIGHT, rear (guide lamp 926115) (for components see list of parts under detail of "headlights or rear light")

1шт.

220068

NUT, hex., 1/2-13NC

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

34

CABLE, regulator "BAT" terminal to ammeter (natural with black and red cross tracers) (order 358286R91)

1шт.

36

61271D

SPARE PART CLIP (on steering post rear mounting bolt)

1шт.

37

CABLE, fuse housing to ignition switch (used with 354232R91)

1шт.

38

CABLE, fuse housing to lighting switch (used with 354232R91)

1шт.

39

CABLE, regulator "L" terminal to ignition switch (natural with green cross tracers) (order 358286R91)

1шт.

40

CABLE, ammeter to starting switch (black with yellow tracers) (order 358286R91)

1шт.

41

CABLE, regulator "GEN" terminal to generator "A" terminal (natural with red cross tracers) (order 358286R91)

1шт.

42

CABLE, regulator "F" terminal to generator "F" terminal (natural with black tracers) (order 358286R91)

1шт.

43

CABLE, ignition switch to coil (black) (order 356286R91)

1шт.

44

CABLE, lighting switch to rear light (black) (order 358915R91)

1шт.

45

CABLE, lighting switch to headlight (black) (order 358916R91)

1шт.

46

CABLE, headlight to ground (natural) (order 358916R91)

1шт.

47

CABLE, rear light to ground (natural) (order 358915R91)

1шт.

48

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4" (light ground bolt thru steering column)

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

356062R91

BOLT

BOLT AND NUT, battery to starting switch cable

1шт.

356062R91

BOLT

BOLT AND NUT, battery to ground strap

1шт.

250466R92

SPARE PART CLAMP, ammeter (AC-1501309) (used with ammeter, 42383DC)

1шт.

352154R91

SPARE PART CLAMP, ammeter (Rochester RM-4000-3) (used with ammeter, 354473R91)

1шт.

360054R91

SPARE PART CLAMP, charge indicator (Rochester 4015-D) (used with indicator, 360053R91)

1шт.

359165R91

SPARE PART COVER, electrical instrument mounting panel (will work for 51765DAX)

1шт.

425-115

NUT,5/16"-24, G5

NUT, hex., 5/16-24NF

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

106653

FUSE

FUSE, (cartridge type SFE-20) (6-volt, 20 amps)

1шт.

356445R91

KNOB

KNOB, fuse housing

1шт.

357891R1

SPARE PART PANEL, mounting, electrical instrument

1шт.

432465

SPARE PART PLUG, dust, fuse housing hole (see note)

1шт.

432491

SPARE PART PLUG, dust, lighting switch hole (see note)

1шт.

51063DA

SCREW

SCREW, electrical instrument mounting panel

2шт.

225-10108

NUT,#8-32

NUT, #8-32

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

358285R1

SPACER,3/8" Pipe x 1 3/8"

SPACER, battery ground strap

1шт.

59109D

SPARE PART SPACER, ignition switch

1шт.

352265R1

SPARE PART WASHER, mounting, clamp (Rochester 4000-28-C) (used with ammeter, 354473R91 and indicator, 360053R91)

2шт.
