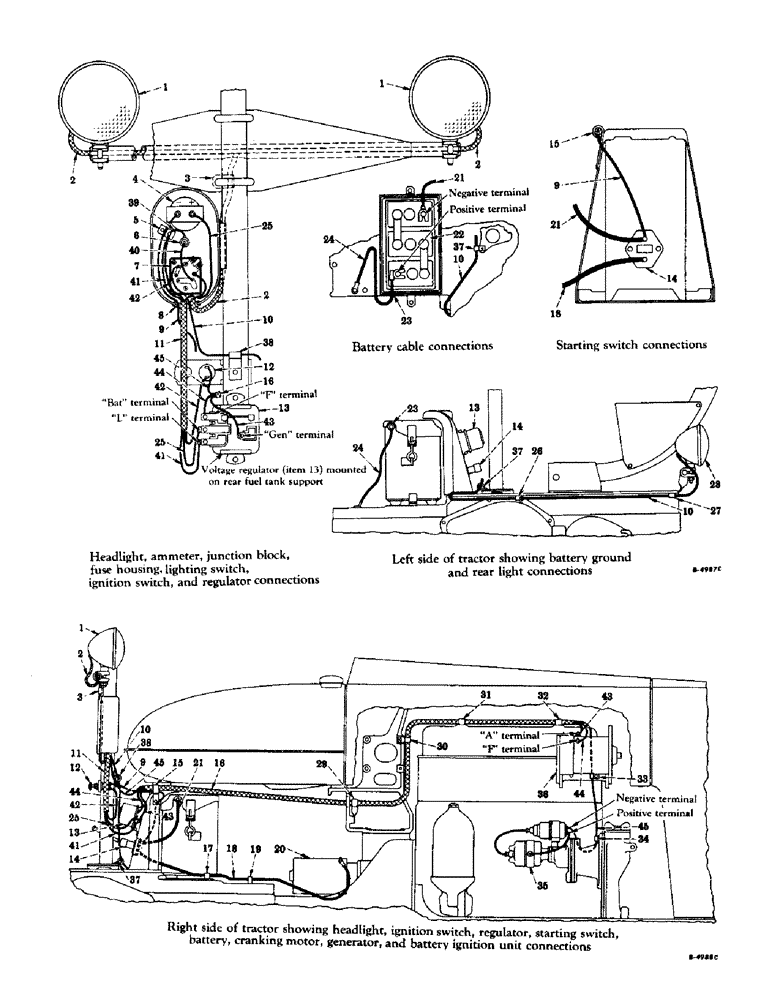

Запчасти Case IH SUPER M-TA (130) - ELECTRICAL SYSTEM, CARBURETED ENGINE, ELECTRICAL STARTING AND LIGHTING, BATTERY IGNITION (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
45640DB
LAMP
HEADLIGHT, (guide lamp 873-24) (for components see list of parts under detail of "headlights or rear light")
2шт.
2
52973DA
HARNESS
headlight cable
1шт.
3
350742R1
CLIP, headlight cable harness (on lower "U" bolt of headlight support bracket)
1шт.
4
42383DC
AMMETER
(AC-1301438) (includes clamp, 250466R92, four nuts, 120614 and two washers, 120217) (optional with 354473R91)
1шт.
4
354473R91
AMMETER
(Rochester 4010-C6) (includes clamp, 352154R91, four nut, 120614, two washers, 120217 and two washers, 352265R1) (optional with 42383DC)
1шт.
4
360053R91
INDICATOR
charge (Rochester Mfg. 4015-C1) (includes clamp, 360054R91, four nuts, 120614, two washers, 120217 and two washers, 352265R1)
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
4шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
5
42915D
BLOCK
junction, instrument panel
1шт.
110503
SCREW, machine, slotted-rd-hd., no. 10-24NC x 7/8"
1шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
6
354232R91
BOX
HOUSING, fuse (w/knob 356445R91) (Bussman Mfg. Co.)
1шт.
7
SWITCH, lighting, assembly (for components see list of parts under detail of "lighting switch") (Delco-Remy 1994038)
1шт.
8
52062D
GROMMET
(on electrical instrument mounting panel cover)
1шт.
9
358120R91
CABLE
ammeter to starting switch
1шт.
10
358121R91
CABLE
switch to rear light (will work for 61599D)
1шт.
11
354297R91
HARNESS
regulator cable
1шт.
12
62801DC
SWITCH
battery ignition (for components see list of parts under detail of "battery ignition switch")
1шт.
13
354234R91
REGULATOR
voltage (Delco-Remy 1118308) (for components see list of parts under detail of "voltage regulator")
1шт.
14
356913R91
SWITCH
starting
1шт.
13000R1
NUT, hex., 1/4-20NC
2шт.
440-1258
SCREW,Cross Pan Hd, 1/4"-20 x 1/2"
machine, slotted-rd-hd., 1/4-20NC x 1/2"
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
15
56273D
CLIP, on rear fuel tank support (upper hole right side)
1шт.
13000R1
NUT, hex., 1/4-20NC
1шт.
179793
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
16
354296R91
HARNESS
cable
1шт.
17
56277D
CLIP (on brake pedal stop front mounting bolt)
1шт.
18
53103D
CABLE, starting switch to cranking motor
1шт.
19
56277D
CLIP (on main frame cover front bolt)
1шт.
20
63608D
MOTOR, cranking (Delco-Remy 1107448) (for components see list of parts under detail of "cranking motor")
1шт.
179883
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
hex-hd., 1/2-13 NC x 1-1/4"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
21
53104DB
CABLE
battery to starting switch
1шт.
21
360455R91
CABLE, battery to starting switch (used with hydraulic seat suspension and battery box package, 360454R91)
1шт.
22
61137DC
BATTERY (Auto-Lite 3H-135-R3) (optional with 355779R92)
1шт.
22
355779R92
BATTERY (Globe-Union 3H-1491) (optional with 61137DC)
1шт.
23
24179D
GROMMET,5/8" ID x 7/8" Groove Dia
(on battery box)
2шт.
24
53102DA
CABLE
, Serial Range: battery-ground
1шт.
25
CABLE, regulator "BAT" terminal to ammeter (natural with black and red cross tracers) (order 354297R91)
1шт.
26
351794R1
CLIP (on brake housing mounting bolt)
1шт.
27
351794R1
CLIP (on rear frame cover)
1шт.
280136
NUT,3/8"-16, G8
1шт.
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
28
45640DB
LAMP
LIGHT, rear (guide lamp 873-24) (for components see list of parts under detail of "headlights or rear light")
1шт.
29
62505D
CLIP (on fuel tank front support)
1шт.
179835
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
30
355097R1
CLIP (on steering shaft support)
1шт.
31
355097R1
CLIP (on rear valve cover stud)
1шт.
32
355097R1
CLIP (on front valve cover stud)
1шт.
33
61387D
CLIP (on ignition cable)
1шт.
34
61813D
CLIP
(on ignition cable)
1шт.
35
357934R91
UNIT, battery ignition (for components see list of parts under detail of "battery ignition" unit)
1шт.
36
354237R91
GENERATOR (Delco-Remy 1100501) (for components see list of parts under detail of "generator")
1шт.
37
355098R1
CLIP (on steering post base)
1шт.
38
355098R1
CLIP (on control bracket mounting bolt)
1шт.
39
CABLE, fuse housing to junction block (used with 354232R91)
1шт.
40
CABLE, fuse housing to lighting switch (used with 354232R91)
1шт.
41
CABLE, regulator "L" terminal to junction block (natural with green cross tracers) (order 354297R91)
1шт.
42
CABLE, ignition switch to junction block (natural with black cross tracers) (order 354297R91)
1шт.
43
CABLE, regulator "gen" terminal to generator "A" terminal (natural with red cross tracers) (order 354296R91)
1шт.
44
CABLE, regulator "F" terminal to generator "F" terminal (natural with black tracers) (order 354296R91)
1шт.
45
CABLE, ignition switch to coil (black) (order 354296R91)
1шт.
356062R91
BOLT
AND NUT, battery to starting switch cable
1шт.
356062R91
BOLT
AND NUT, battery to ground cable
1шт.
359165R91
COVER, electrical instrument mounting panel (will work for 51765DAX)
1шт.
250466R92
CLAMP, ammeter (AC 1501309) (used with ammeter, 42383DC)
1шт.
352154R91
CLAMP, ammeter (Rochester R.M. 4000-3) (used with ammeter, 354473R91)
1шт.
360054R91
CLAMP, charge indicator (Rochester 4015-D) (used with indicator, 360053R91)
1шт.
356445R91
KNOB
fuse housing
1шт.
354262R1
PANEL, mounting, electrical instrument
1шт.
432465
PLUG, dust, fuse housing hole (see note)
1шт.
432491
PLUG, dust, lighting switch hole (see note)
1шт.
Q1249
ROD, control, starting switch
1шт.
107763
COTTER PIN,1/8" x 5/8"
PIN, SPLIT (COTTER), 1/8" x 5/8"
1шт.
51063DA
SCREW
electrical instrument mounting panel
2шт.
225-10108
NUT,#8-32
2шт.
492-11008
LOCK WASHER,#8
Washer, Lock, #8
2шт.
354260R1
SPACER,1/8" Pipe x 7/16"
junction block
1шт.
352265R1
WASHER, mounting, clamp (Rochester 4000-28-C) (used with ammeter, 354437R91 and indicator, 360053R91)
2шт.
