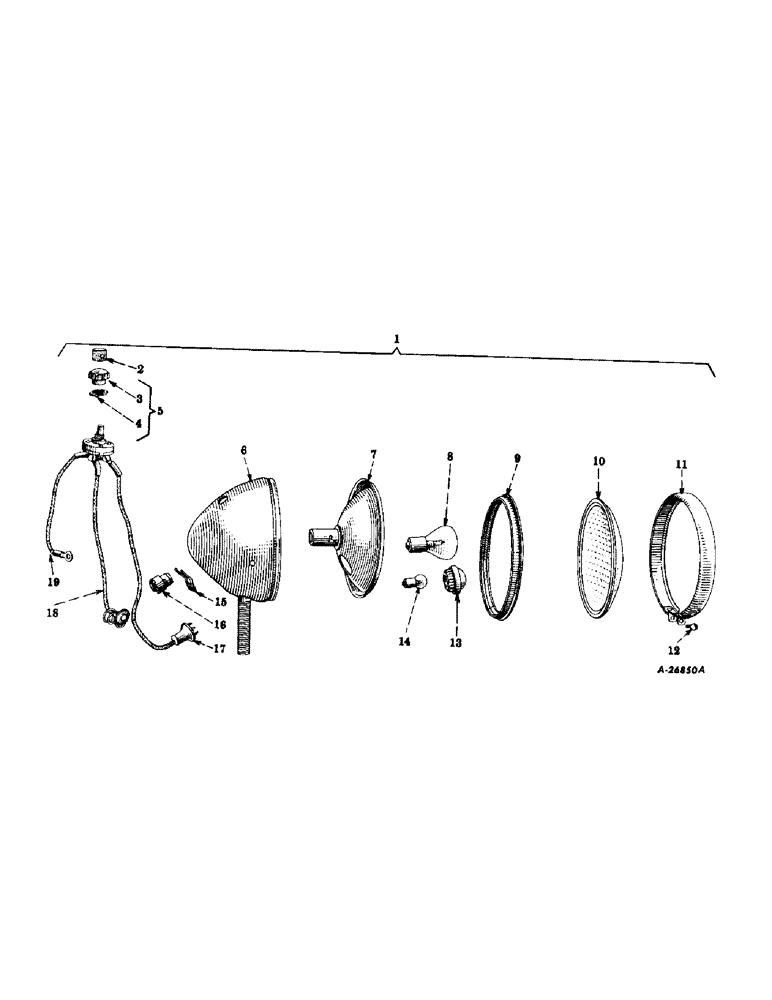

Запчасти Case IH SUPER M-TA (126) - ELECTRICAL SYSTEM, CARBURETED ENGINE, COMBINATION REAR LIGHT & TAIL LIGHT ATTACH., GUIDE LAMP CORP. (06) - ELECTRICAL SYSTEMS

355914R91

ATTACHMENT, light, rear, combination and tail light

1шт.

1

355910R91

LIGHT

rear, combination and tail light (6 volt) (Mfr. 929-03)

1шт.

2

355423R91

KNOB, switch, w/screw (metal) (used with 354309R91) (Mfr. 5940215)

1шт.

3

359773R91

KNOB, switch (plastic) (used only with 359682R91) (Mfr. 5944001)

1шт.

4

355425R1

NUT, retaining, switch (Mfr. 5940230)

1шт.

5

359682R91

SWITCH

light, w/knob, 359773R91 and nut, 355425R1 (will work for 354309R91) (Mfr. 5945020)

1шт.

6

BODY, rear light (order 355910R91 or 355911R91)

1шт.

7

356590R91

REFLECTOR, rear light (Mfr. 5939859)

1шт.

8

B50206

LAMP

rear (SC-6-8 volt, 32 candle power) (Mfr. 1133)

1шт.

9

53527D

GASKET

rear light (Mfr. 924639)

1шт.

10

350478R1

LENS

rear light (Mfr. 5936059)

1шт.

11

53525DA

MOLDING

MOULDING, rear light (Mfr. 5939960)

1шт.

12

53526D

SCREW

rear light door (Mfr. 912048)

1шт.

13

356592R91

JEWEL, assembly (Mfr. 5939863)

1шт.

14

115273

LAMP, tail light (SC-6-8 volt, 1 candle power) (Mfr. 51)

1шт.

15

79408H

SPRING, retaining, terminal (Mfr. 922785)

1шт.

16

79407H

PLATE

terminal (Mfr. 922786)

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

slotted-rd-hd., cd-pltd., no. 8-32NC x 5/16" (Mfr. 121749)

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

17

356591R91

SOCKET, w/wiring (switch to red light) (Mfr. 5939861)

1шт.

18

354304R91

CABLE, socket to switch, w/spring (Mfr. 5938343)

1шт.

19

354303R91

CABLE, switch to terminal plate (Mfr. 5938342)

1шт.

68417D

INSULATOR

PACKAGE, terminal plate, assembly (consists of (1) plate 79407H, (2) screw 121749, (1) spring 79408H, (2) washer 138530) (Mfr. 5935509)

1шт.
