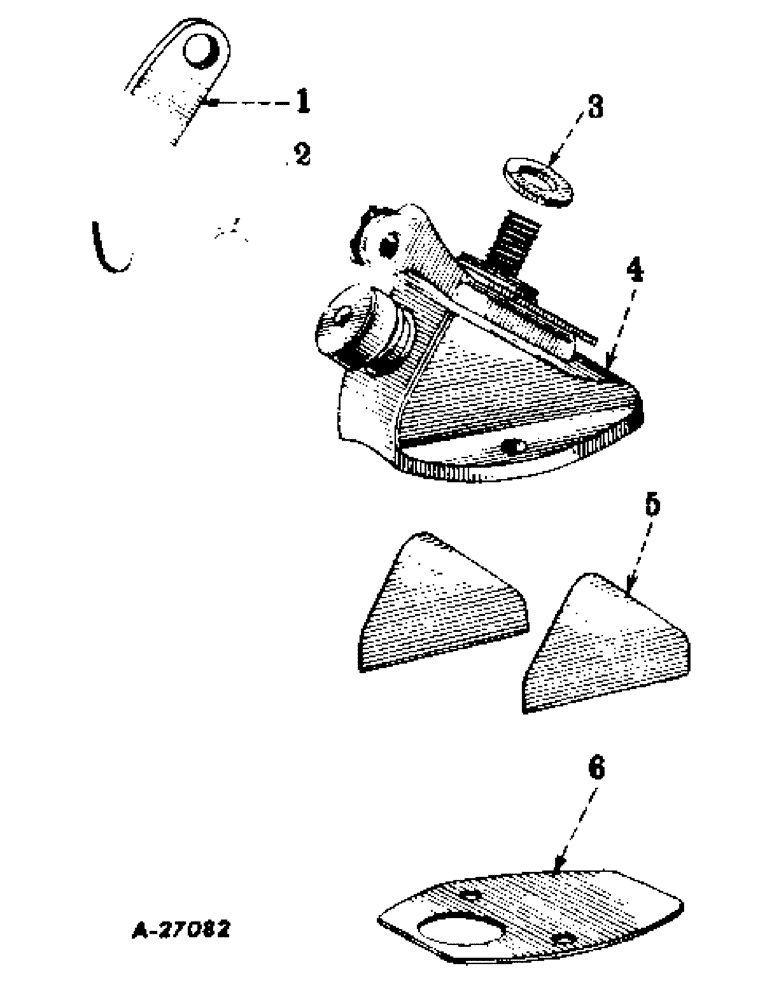

Запчасти Case IH SUPER M-TA (121) - ELECTRICAL SYSTEM, CARBURETED ENGINE, STARTING SWITCH, DELCO-REMY, LIQUEFIED PETROLEUM GAS (06) - ELECTRICAL SYSTEMS

SWITCH, starting, assembly (Mfr. 1918405)

1шт.

NUT, hex., cd-pltd., 3/8-16NC (see note) (Mfr. 134566)

1шт.

SCREW, slotted-rd-hd, cd-pltd., no. 10-32NF x 1/4" (Mfr. 132892)

2шт.

WASHER, lock, no. 10 (Mfr. 106497)

2шт.

WASHER, lock, light, 3/8" (see note) (Mfr. 110730)

1шт.

1

LEVER, starting switch (Mfr. 1918322)

1шт.

2

PIN, switch lever (Mfr. 1880254)

1шт.

PIN, cotter, 1/16 x 7/16" (Mfr. 137130)

1шт.

3

WASHER, switch terminal, plain (see note) (Mfr. 142186H)

1шт.

4

SWITCH (order 1918405)

1шт.

5

INSULATION, side, starting switch (Mfr. 816911)

2шт.

6

GASKET, starting switch (see note) (Mfr. 1912376)

1шт.
