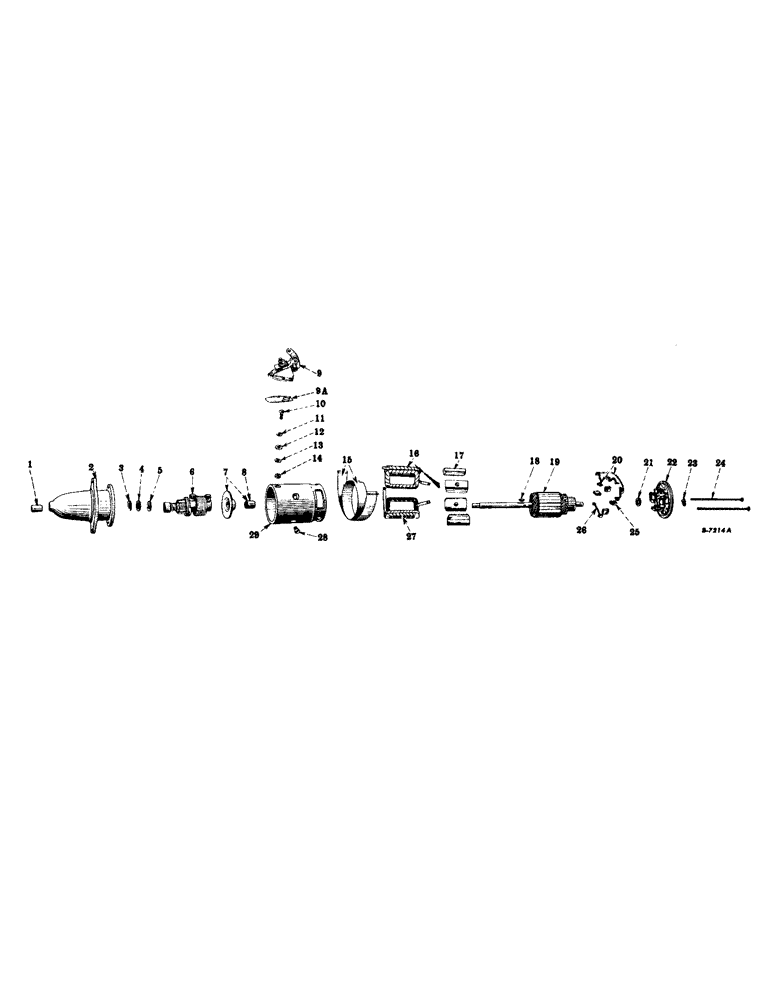

Запчасти Case IH SUPER M-TA (114) - ELECTRICAL SYSTEM, CARBURETED ENGINE, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1

BUSHING, drive housing (Mfr. 810620)

1шт.

2

HOUSING, drive, w/bushing, 810620 (Mfr. 1924468) (A only)

1шт.

3

WASHER, space, drive end (Mfr. 833602) (A and B only)

1шт.

4

WASHER, space, drive end (Mfr. 809815) (A only)

1шт.

5

WASHER, space, drive end (Mfr. 1849774) (A and B only)

1шт.

6

DRIVE, motor (composed of (1) gear and shaft 1855629, (1) head 1848530, (1) screw 1850810, (1) screw 1850811, (1) sleeve 1849782, (1) spring 1860639, (2) washers 805057) (Mfr. 1868804) (A only)

1шт.

6

DRIVE, motor (composed of (1) gear and shaft 1864685, (1) head 1848530, (1) screw 1850810, (1) screw 1850811, (1) sleeve 1849782, (1) spring 1860639, (2) washers 805057) (Mfr. 1864684) (B and C only)

1шт.

7

BEARING, center, w/bushing, 1838670 (Mfr. 1838667) (A only)

1шт.

142210

CHAIN

SCREW, slotted, rd-hd., blued, no. 10-32NF x 5/16" (Mfr. 142210) (A only)

2шт.

WASHER, lock (Mfr. 1880781) (A only)

2шт.

8

BUSHING, center bearing (Mfr. 1838670) (A only)

1шт.

9

SWITCH, starting (for components see list of parts under detail of "Starting Switch") (Mfr. 1918405)

1шт.

9a

GASKET, starting switch (Mfr. 1912376)

1шт.

10

STUD, terminal (Mfr. 1913694) (A only)

1шт.

10

STUD, terminal (Mfr. 828228) (B and C only)

1шт.

11

WASHER, terminal stud, plain (outside) (Mfr. 812622) (A only)

1шт.

11

WASHER, terminal stud, plain (inside) (Mfr. 833795) (A only)

1шт.

11

WASHER, terminal stud, plain (Mfr. 805790) (B and C only)

1шт.

12

WASHER, insulating, terminal stud (3/4" O.D.) (Mfr. 1861076)

2шт.

13

WASHER, insulating, terminal stud (9/16" O.D.) (Mfr. 1904669)

2шт.

14

NUT, terminal stud (Mfr. 1835299) (A only)

1шт.

14

NUT, terminal stud (Mfr. 805258) (B and C only)

2шт.

15

BAND, cover (Mfr. 1886923)

1шт.

SCREW, slotted, rd-hd., cd-pltd., no. 10-32NF x 1-1/4" (Mfr. 132926)

1шт.

NUT, hex., cd-pltd., no. 10-32 (Mfr. 120614)

1шт.

16

COIL, field (upper) (Mfr. 817056) (A only)

1шт.

16

COIL, field (upper) (Mfr. 826282) (B and C only)

1шт.

17

SHOE, pole (Mfr. 810601)

4шт.

SCREW, pole shoe (Mfr. 1881869)

4шт.

18

KEY, Woodruff, no. 6, 5/32 x 5/8" (Mfr. 124546)

1шт.

19

ARMATURE (Mfr. 818002) (A only)

1шт.

19

ARMATURE (Mfr. 818134) (B and C only)

1шт.

20

LEAD, connector, brush (Mfr. 819362) (A only)

2шт.

(B and C only)

1шт.

SCREW, slotted, rd-hd., cd-pltd., no. 10-32NF x 1/4" (Mfr. 132892)

2шт.

WASHER, lock, no. 10 (Mfr. 106497)

2шт.

21

WASHER, space, commutator end (Mfr. 833602)

1шт.

22

1881627

FUNNEL

FRAME, end, commutator (Mfr. 1881627) (A only)

1шт.

22

FRAME, end, commutator (Mfr. 815839) (B and C only)

1шт.

23

PLUG, commutator end frame (Mfr. 1865182)

1шт.

24

BOLT, thru (Mfr. 809053)

2шт.

WASHER, lock, cd-pltd., 1/4" (Mfr. 120380)

2шт.

25

BRUSH (Mfr. 811553)

4шт.

SCREW, slotted, rd-hd., blued, no. 6-32NC x 1/2" (Mfr. 115903)

4шт.

26

LEAD, ground, brush (Mfr. 813554)

2шт.

SCREW, slotted, rd-hd., cd-pltd., no. 8-32NC x 1/4"

2шт.

WASHER, lock, cd-pltd., no. 8 (Mfr. 121841)

2шт.

27

COIL, field (lower) (Mfr. 817055) (A only)

1шт.

27

COIL, field (lower) (Mfr. 826281) (B and C only)

1шт.

28

Follows reference no. 17 (Mfr. 1881869)

1шт.

29

FRAME (not serviced separately) (A only)

1шт.

GEAR AND SHAFT, motor drive (Mfr. 1855629) (A only)

1шт.

GEAR AND SHAFT, motor drive (Mfr. 1864685) (B and C only)

1шт.

GEAR, reduction (Mfr. 817041) (B and C only)

1шт.

HEAD, motor drive (Mfr. 1848530)

1шт.

HOLDER, brush (Mfr. 810226)

4шт.

HOUSING, gear (Mfr. 1839174) (B and C only)

1шт.

HOUSING, motor drive, w/bushing, 810620 (Mfr. 1923374) (B only)

1шт.

HOUSING, motor drive, w/bushing, 810620 (Mfr. 1925826) (C only)

1шт.

BOLT, drive housing (Mfr. 1872612) (B and C only)

3шт.

NUT, drive housing bolt (Mfr. 134551) (B and C only)

3шт.

WASHER, lock, drive housing bolt (Mfr. 120380) (B and C only)

3шт.

KEY, Woodruff, 6, 5/32 x 5/8" (gear) (Mfr. 124546) (B and C only)

2шт.

OILER, commutator end frame (Mfr. 1860642) (A only)

1шт.

OILER, commutator end frame (Mfr. 114998) (B and C only)

1шт.

OILER, gear housing (Mfr. 114998) (B and C only)

1шт.

PIN, brush holder hinge (Mfr. 817313)

2шт.

PIN, brush holder hinge, w/insulation (Mfr. 812016)

2шт.

PIN, brush holder stop (Mfr. 817314)

2шт.

PIN, brush holder stop, w/insulation (Mfr. 812015)

2шт.

PIN, dowel, commutator end (Mfr. 809062)

1шт.

PIN, dowel, drive end (Mfr. 809593)

1шт.

PLATE, drive housing cover (Mfr. 809816) (B and C only)

1шт.

PLUG, end, gear housing (Mfr. 810819) (B and C only)

1шт.

PLUG, gear housing (Mfr. 103877) (B and C only)

1шт.

SCREW, motor drive spring (at head) (Mfr. 1850811)

1шт.

SCREW, motor drive spring (shaft end) (Mfr. 1850810)

1шт.

SHAFT, motor drive (Mfr. 1880640) (B and C only)

1шт.

SLEEVE (drive motor) (Mfr. 1849782)

1шт.

SPRING, brush (Mfr. 813521)

4шт.

SPRING, motor drive (Mfr. 1860639)

1шт.

WASHER, lock, drive spring screw (Mfr. 805057)

2шт.

WASHER, oil throwing (between gear felt washer) (Mfr. 809817) (B and C only)

1шт.

WASHER, felt (between oil throwing washer and cover plate) (Mfr. 813134) (B and C only)

1шт.

WICK, oil, commutator end (Mfr. 802694)

1шт.

WICK, gear housing (Mfr. 802691) (B and C only)
