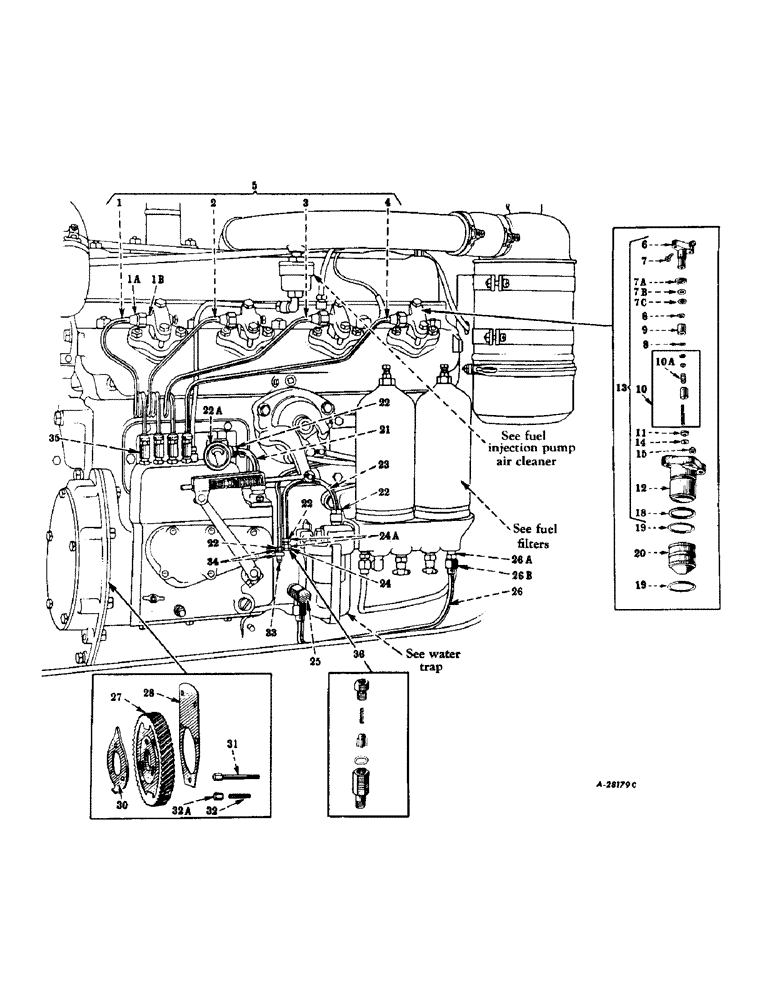

Запчасти Case IH SUPER M-TA (085) - DIESEL ENGINE, FUEL INJECTION PUMP, NOZZLES, PIPES, GEAR AND CONNECTIONS (01) - ENGINE

265401R91

PUMP, fuel injection, assembly (IH-type A) (order 270000R91) (see note A)

1шт.

The service parts of fuel injection pump, 265401R91 are the same as fuel injection pump, 65306DA-201 listed in injection parts catalog, PU-27A, except for the plunger unit assembly, governor spring assembly and stop screw. The following parts are deducted from pump, 265401R91: (1) plunger unit, assembly, 257881R93 (composed of (1) block, valve 66392D, (1) retainer 255021R1, (1) clamp 260401R11, (2) screw 59623D, (1) collar 260404R, (1) seal 59652D, (1) element 59650DA, (1) seat 263020R1, (1) flange 255022R1

1шт.

270000R91

PUMP, fuel injection, assembly (IH-type B) (will work for 265401R91) (see note B)

1шт.

Refer to injection pump parts catalog, PU-40 when ordering detail parts for complete injection pumps also for special injection pumps not listed above.

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

1

260880R11

PIPE, injection, cylinder no. 1, assembly (composed of (1) nut 250617R1, (1) nut 251050R2, (1) pipe 260880R1 (NSS), (2) sleeve 250610R2)

1шт.

1a

250617R1

NUT

injection pipe (nozzle end)

4шт.

1b

250610R2

GUARD

SLEEVE, injection pipe

8шт.

2

260881R11

PIPE, injection, cylinder no. 2, assembly (composed of (1) nut 250617R1, (1) nut 251020R2, (1) pipe 260881R1 (NSS), (2) sleeve 250610R2)

1шт.

3

260882R11

PIPE, injection, cylinder no. 3, assembly (composed of (1) nut 250617R1, (1) nut 251050R2, (1) pipe 260882R1 (NSS), (2) sleeve 250610R2)

1шт.

4

260883R11

PIPE, injection, cylinder no. 4, assembly (composed of (1) nut 250617R1, (1) nut 251050R2, (1) pipe 260883R1 (NSS), (2) sleeve 250610R2)

1шт.

5

260884R91

PIPE, injection (set of four) (consists of (1) pipe 260880R11, (1) pipe 260881R11, (1) pipe 260882R11, (1) pipe 260883R11)

1шт.

6

260876R31

FITTING, nozzle, w/ring, 264038R92 and seal, 250608R1

4шт.

181379

BOLT,Hex, 3/8" - 24 x 2", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 2"

8шт.

7

32493D

VALVE, nozzle bleeder

4шт.

7a

250608R1

SEAL

dust, nozzle fitting

4шт.

7b

264037R92

STRAINER ASSY.

SCREEN, nozzle

4шт.

7c

264038R1

SNAP RING,0.50", Int, #50

Ring, Snap, , nozzle screen 0.50", Int, #50

4шт.

8

37148D

GASKET, nozzle valve

8шт.

9

37150D

SPACER, nozzle valve

4шт.

10

37152DB

VALVE

nozzle, w/spring, 276954R1

4шт.

10a

276954R1

SPRING, nozzle

4шт.

11

250604R3

WASHER

PLATE, nozzle injector

4шт.

12

260877R2

BODY, nozzle

4шт.

13

265020R93

4шт.

NOZZLE, injection, assembly (see note C) (composed of (1) body 260877R2, (2) screw 181379, (1) fitting 260876R3 (NSS), (1) seal 61209DA, (3) gasket 37148D, (1) seal 250608R1, (1) plate 250604R3, (1) spacer 37150D, (1) ring 264038R1, (1) valve 32493D, (1) screen 264037R92, (1) valve 37152DB(

1шт.

13

265020R93

4шт.

Customers desiring open type fuel injection nozzles should order four (4) of the following packages. 271745R91 package, field, open type fuel injection nozzle

1шт.

14

37148D

GASKET, nozzle injector plate

4шт.

15

21238D

NUT, nozzle body stud

8шт.

18

61209DA

SEAL

dust, nozzle body

4шт.

19

260879R4

GASKET

pre-combustion chamber

8шт.

20

260878R1

CHAMBER

pre-combustion

4шт.

21

64349DAX

PIPE, final fuel filter outlet, w/2 nuts, 278953R91

1шт.

22

278953R91

NUT

fuel pipe

5шт.

22a

263791R92

INDICATOR, fuel oil pressure, w/dampener, 262856R1

1шт.

23

64348DX

PIPE, inlet, final fuel filter, w/2 nuts, 278953R91

1шт.

24

38026DM

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR, final fuel filter inlet pipe

1шт.

24a

38026DMX

CONNECTOR, ELEC

CONNECTOR, final fuel filter inlet pipe, w/nut, 278953R91

1шт.

25

67922DA

FILTER, primary pump, assembly (for detail see parts see IH injection pump - primary pump)

1шт.

26

64347DAX

PIPE

auxiliary fuel filter outlet, w/2 nipples, 22509D and 2 nuts, 22508D

1шт.

26a

22508D

NUT, auxiliary fuel filter outlet pipe

2шт.

26b

22509D

NIPPLE, LUBE

NIPPLE, auxiliary fuel filter outlet pipe

2шт.

27

8231DB

GEAR, injection pump

1шт.

28

62939DB

GASKET

injection pump

1шт.

30

40584D

INDICATOR, injection pump gear timing

1шт.

425474

SCREW,Hex Hd, 3/8"-24 x 1", w/LW

machine, hex-hd., 3/8-24 x 1", w/washer

3шт.

31

16849R91

SCREW, machine, hex-hd., 3/8-16NC x 2-3/8", w/external tooth lockwasher

2шт.

32

260489R1

STUD, injection pump mounting flange

1шт.

32a

260623R1

NUT, injection pump mounting flange stud

1шт.

33

260304R1

ELBOW, fuel return tube, D-264, Serial Range: 501-7399

1шт.

33

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

fuel return pipe, D-264 7400 up

1шт.

34

37323DX

ELBOW

fuel return pipe, w/nut, 37165D, D-264 7400 up

1шт.

35

251050R2

NUT

injection pipe (pump end)

4шт.

36

260757R92

VALVE, check, scavenging, assembly (order 359692R91 - D-264 501 to 2222) (order 359637R91 - D-264, Serial Range: 2223-7399)

1шт.

262856R1

DAMPENER, spiral type

1шт.

359637R91

PIPE, fuel return, w/elbow, 37323DX and nut, 278953R91 (illustrated with fuel and gasoline tanks and piping), D-264, Serial Range: 2223-7399

1шт.

359692R91

PIPE, fuel return, w/elbow, 37323DX and nut, 278953R91 (illusttrated with fuel and gasoline tanks and piping), D-264, Serial Range: 501-2222

1шт.

271745R91

NOZZLE INJECTION

PACKAGE, field, open type fuel injection nozzle (composed of (1) gasket 37148D, (1) sleeve 271743R1, (1) spacer 271744R1, (1) valve 271738R11)

4шт.

59675DA

SEAL

between pump and crankcase

1шт.
