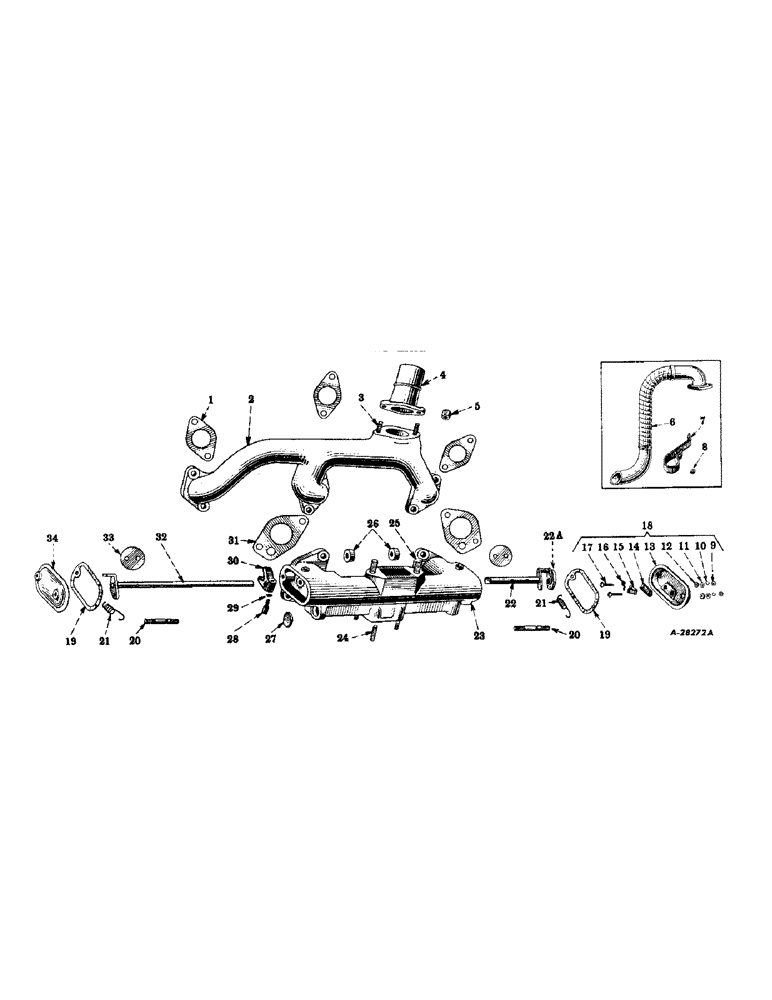

Запчасти Case IH SUPER M-TA (079) - DIESEL ENGINE, MANIFOLD AND EXHAUST PIPE (01) - ENGINE

1

52649D

GASKET

exhaust manifold

3шт.

2

8277DX

MANIFOLD, exhaust, w/two studs, 46202D

1шт.

3

46202D

STUD

exhaust pipe

2шт.

4

8328D

PIPE, exhaust

1шт.

5

64504DA

NUT, exhaust pipe stud

2шт.

6

350568R91

PIPE AND FLANGE, exhaust, special

1шт.

Also used on tractors equipped with cotton picker.

1шт.

A complete orchard type exhaust pipe field attachment may be obtained by ordering cover, P/N 656830R92, ref. 5 thru 8 inclusive and attaching parts from parts stock.

1шт.

7

350571R1

CLAMP, exhaust pipe, special

1шт.

A complete orchard type exhaust pipe field attachment may be obtained by ordering cover, P/N 656830R92, ref. 5 thru 8 inclusive and attaching parts from parts stock.

1шт.

Also used on tractors equipped with cotton picker.

1шт.

181370

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

93082H

NUT

exhaust pipe clamp bolt

1шт.

A complete orchard type exhaust pipe field attachment may be obtained by ordering cover, P/N 656830R92, ref. 5 thru 8 inclusive and attaching parts from parts stock.

1шт.

Also used on tractors equipped with cotton picker.

1шт.

9

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

10

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, lock, cd-pltd., external-tooth, no. 10

2шт.

11

263329R1

WASHER, switch contact blade terminal

2шт.

1 required for tractors equipped with magneto ignition.

1шт.

12

263326R1

INSULATOR, terminal

2шт.

1 required for tractors equipped with magneto ignition.

1шт.

13

263311R1

COVER, intake manifold, front end (order 263311R12 or 263345R92)

1шт.

14

263325R2

STRIP, switch blade mounting

1шт.

15

263328R1

BLADE, switch contact (for tractors equipped with battery ignition)

1шт.

15

263358R1

BLADE, magneto grounding (for tractors equipped with magneto ignition)

1шт.

16

263327R1

BLADE, switch contact

1шт.

17

263330R1

SCREW,Slotted Pan Hd, #10-32 x 1"

switch contact blade terminal

2шт.

1 required for tractors equipped with magneto ignition.

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

1 required for tractors equipped with magneto ignition.

1шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, lock, cd-pltd., external tooth, no. 10

2шт.

1 required for tractors equipped with magneto ignition.

1шт.

17

263356R1

SCREW, switch contact blade terminal (for tractors equipped with magneto ignition)

1шт.

18

2631311R12

COVER, intake manifold, front end, assembly, for tractors equipped with battery ignition, Composed of: 1-blade 263327R1, 2-screw 263330R1, 1-blade 263328R1, 1-strip 263325R2, 1-cover 263311R1, NSS, 2-washer 138479, 2-insulator 263326R1, 2-washer 26332R1

1шт.

2-nut 120614

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

446186

WASHER,1/4" x 1/2" x .049"

WASHER, cop., 1/4 I.D. x 1/2" O.D. x no. 18 ga.

1шт.

18

263345R92

1шт.

COVER, intake manifold front end, assembly (for tractors equipped with magneto ignition) (composed of (1) blade 263327R1, screw 263356R1, (1) blade 263358R1, (1) sleeve 263357R1, (1) cover 263311R1 (NSS), (1) strip 263325R2, (1) insulsator 263326R1, (2) washer 138479, (2) nut 120614, (1) washer 263329R1, (1) screw 263330R1

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

446186

WASHER,1/4" x 1/2" x .049"

WASHER, cop., 1/4" I.D. x 1/2" O.D. x no. 18 ga.

1шт.

19

52520DB

GASKET

intake manifold end cover

2шт.

20

263318R1

STUD, intake manifold control spring

2шт.

79051R1

LOCK NUT,5/16"-24, G5

NUT, hex., 5/16-24NF, ESNA elastic stop

2шт.

54909H

GASKET

WASHER, cop., 21/64" I.D. x 5/8" O.D. x no. 18 ga.

2шт.

21

56107D

SPRING, intake manifold control

2шт.

22

263324R93

SHAFT AND CONTACT, manifold, front, w/two eyelets, 188527 and one eyelet, 188664

1шт.

188527

EYELET, plain, brs., 1/8 x 1/4"

2шт.

188664

WASHER

EYELET, plain, brs., 1/4 x 7/32"

1шт.

22a

265913R91

DISC AND CONTACT PLATE, w/eyelet, 188664 and two eyelets, 188527 (will work for 263317R92)

1шт.

23

263309R13

1шт.

MANIFOLD, intake, assembly (composed of (1) lever 52654D, (1) shaft 52836DX, (1) manifold 263309R1 (NSS), (1) shaft 263324R93, (1) nut 103024, (2) spring 56107D, (2) nut 220065, (2) stud G1988, (1) pin 42739DA, (4) stud 50705D, (2) seal 53083D, (2) stud 263318R1, (2) screw 102392, (2) valve 52653D, (4) screw 228148, (1) washer 114604)

1шт.

220065

NUT, hex., 5/16-18NC

2шт.

102392

WASHER

SCREW, set, hdls., oval-pt., 5/16-18 x 1"

2шт.

24

50705D

STUD

carburetor

4шт.

25

G1988

STUD

air cleaner pipe

2шт.

220068

NUT, hex., 1/2-13NC

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

26

53083D

SEAL, intake manifold control shaft (optional with 264531R91)

2шт.

26

264531R91

SEAL, intake manifold control shaft (optional with 53083D)

2шт.

27

41-16

PLUG,Exp, 1"

expansion, intake manifold, 1"

2шт.

28

42739DA

STUD

PIN, intake manifold control lever

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

29

114604

LOCK WASHER,Ext Tooth, 1/4"

WASHER, lock, intake manifold control lever pin

1шт.

30

52654D

LEVER, intake manifold control (optional with 263030R91)

1шт.

30

263030R91

LEVER, intake manifold control (optional with 52654D)

1шт.

31

52650DA

GASKET, intake manifold

2шт.

32

52836DX

SHAFT, intake manifold control, rear, w/lever

1шт.

33

52653D

PLATE, intake manifold control shaft

2шт.

228148

SHIELD

SCREW, rd-hd., no. 8-32NC x 3/8"

4шт.

34

263312R1

COVER, intake manifold, rear end

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

446186

WASHER,1/4" x 1/2" x .049"

WASHER, cop., 1/4" I.D. x 1/2" O.D. x no. 18 ga.

1шт.

263308R91

CLIP, cable, rubber coated (on intake manifold)

1шт.

446211

WASHER, plain, 7/16" I.D. x 7/8" O.D. x 1/16"

1шт.

263357R1

SLEEVE, grounding magneto (for tractors equipped with magneto ignition)

1шт.
