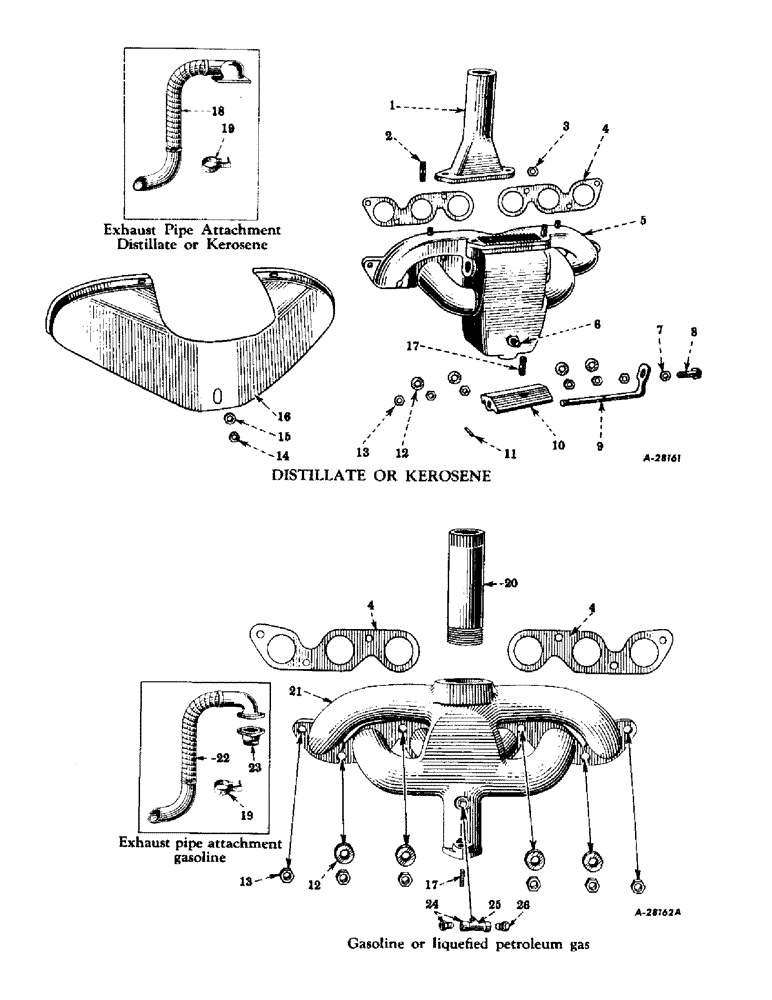

Запчасти Case IH SUPER M-TA (033) - CARBURETED ENGINE, MANIFOLD AND EXHAUST PIPE (01) - ENGINE

1

6776DA

PIPE, exhaust (distillate or kerosene)

1шт.

2

46202D

STUD

exhaust pipe (distillate or kerosene)

2шт.

220067

PIPE

NUT, hex., 7/16-14NC

2шт.

3

220067

PIPE

Follows reference no. 2

1шт.

4

46173DC

MANIFOLD GASKET

manifold

2шт.

5

363153R11

MANIFOLD, exhaust and intake, assembly (distillate or kerosene) (composed of (1) manifold 363153R1 (NSS), (2) stud 12215D, (3) stud 46102D, (2) stud 46202D)

1шт.

5

363154R91

MANIFOLD, exhaust and intake, w/heat valve, assembly (distillate or kerosene) (composed of (1) manifold 363153R11, (1) nut 114503, (1) pin 142494, (1) screw 102952, (1) shaft 49045DA, (1) valve 6777DA)

1шт.

6

46102D

STUD, manifold shield (distillate or kerosene)

3шт.

7

114503

JAM NUT,Jam, 3/8"-16, G5

Follows Ref. #9 Jam, 3/8"-16, G5

1шт.

8

102952

Follows reference no. 9

1шт.

9

49045DA

SHAFT, manifold heat control valve (distillate or kerosene)

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

102952

SCREW, set, sq-hd., cone-pt., 3/8-16NC x 1-1/4"

1шт.

10

6777DA

VALVE, manifold heat control (distillate or kerosene)

1шт.

11

142494

GUIDE

Pin, Grooved, 5/32" x 7/8", Type A (manifold heat control valve) (distillate or kerosene)

1шт.

12

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

manifold to cylinder head stud

4шт.

13

43715D

NUT

manifold to cylinder head stud

6шт.

14

93082H

NUT

manifold shield stud (distillate or kerosene)

3шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

3шт.

15

95-11041

WASHER,3/8"

Follows Ref # 14 3/8"

1шт.

16

49046DX

SHIELD, manifold heat (distillate or kerosene)

1шт.

17

12215D

STUD

carburetor

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

57764D

PIPE AND FLANGE, exhaust (special) (distillate or kerosene) (see notes A and B)

1шт.

19

54924D

CLAMP, exhaust pipe (special) (see note A)

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

62476D

PIPE

exhaust (gasoline)

1шт.

21

8035DDX

MANIFOLD

exhaust and intake, w/plug, 103865 and stud, 12215D (gasoline)

1шт.

103865

PLUG, pipe, sq-hd., C.I., 1/8" (optional with 103877)

1шт.

103877

PLUG

pipe, sq-hd., stl., 1/8" (optional with 103865)

1шт.

21

358308R11

MANIFOLD, exhaust and intake, w/two studs, 12215D and tee, 80020HAX (liquefied petroleum gas) (will work for 357049R91) (also order weather cap 283280R91, if manifold does not have drain holes)

1шт.

22

57967D

PIPE AND FLANGE, exhaust (special) (gasoline) (see notes A and C)

1шт.

114773

NUT, hex., 7/16-14NC

2шт.

179862

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

23

9117D

FLANGE, exhaust pipe adapter (special) (gasoline) (see note A)

1шт.

24

80020HAX

TEE, 80020HA, intake and exhaust manifold, w/two nuts, 25038HA (liquefied petroleum gas)

1шт.

25

80020HA

TEE, intake and exhaust manifold (liquefied petroleum gas)

1шт.

26

25038HA

TUBE NUT,3/8"-24

NUT, tee, intake and exhaust manifold (liquefield petroleum gas)

2шт.
