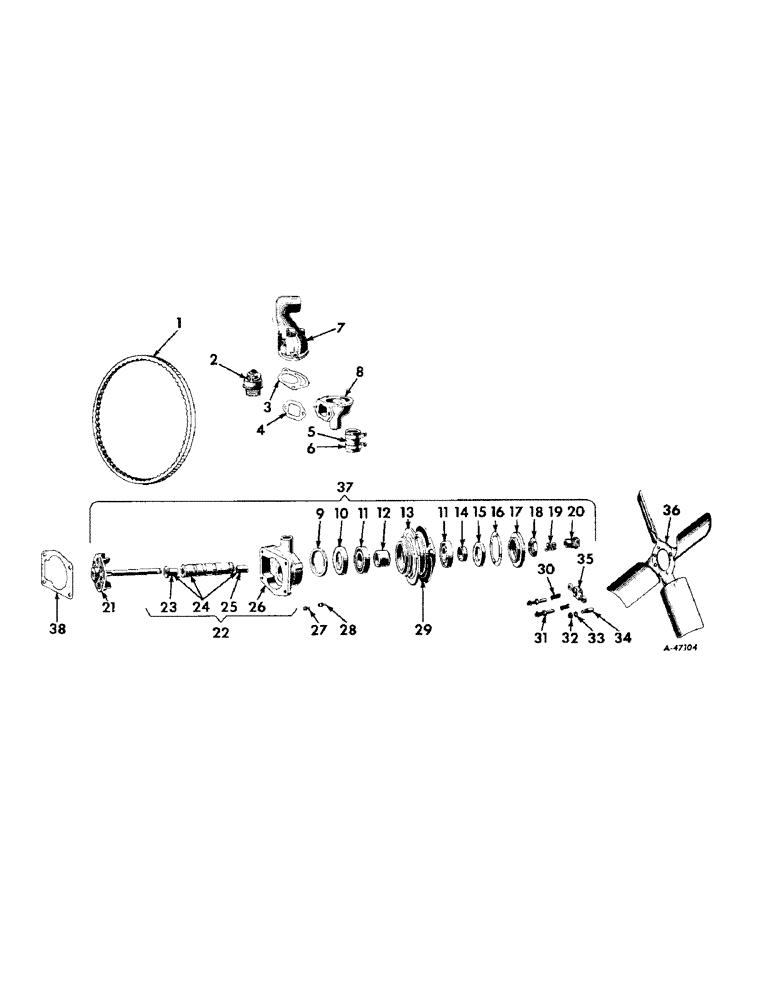

Запчасти Case IH SUPER M-TA (029) - CARBURETED ENGINE, FAN, THERMOSTAT AND WATER PUMP (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
16131DA
V-BELT,45.76" L
Fan, Regular Duty, Will Work for 69490DA 45.76" L
1шт.
1
277448R1
BELT,0.91" W
Fan (Cog-type) (Heavy-duty)
1шт.
2
33814DB
THERMOSTAT
165deg. - 190deg. (will work for 37634DA)
1шт.
3
45984D
GASKET
thermostat housing
1шт.
4
45986D
GASKET
water outlet elbow
1шт.
5
45985DA
HOSE, by-pass, water pump (1-1/2" I.D. x 2-3/8" - 1 ply)
1шт.
6
357870R91
CLAMP
water pump by-pass hose
2шт.
7
6763DB
HOUSING, thermostat
1шт.
NLS
NO LONGER SERVICED
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
8
6344D
ELBOW, water outlet
1шт.
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
9
20300D
WASHER
felt, water pump
1шт.
10
20290D
OIL SEAL
OIL SEAL, water pump rear
1шт.
11
ST205A
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
BEARING, water pump
2шт.
12
45993D
SPACER
water pump bearing
1шт.
13
8023DAX
HUB CAP
HUB, fan and generator pully, w/oil seal, 20290D
1шт.
14
20293D
SLEEVE
water pump bearing lock
1шт.
15
20289D
SEAL
OIL SEAL, water pump, front
1шт.
16
21839DB
GASKET
water pump bearing retainer
1шт.
17
20306DX
RETAINER
water pump bearing, w/oil seal, 20289D
1шт.
18
20299D
NUT
clamp, water pump bearing
1шт.
19
50790D
PACKING
water pump
1шт.
20
20296D
GLAND
water pump packing
1шт.
21
6345DAX
IMPELLER
water pump, w/shaft and thrust washer
1шт.
22
45980DA
BODY
water pump, w/sleeve, 45982DXA
1шт.
179860
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5
SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"
3шт.
179868
BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5
SCREW, cap, hex-hd., 7/16-14NC x 2-1/2"
1шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
4шт.
23
20303DA
THRUST RING
BUSHING, thrust, water pump
1шт.
24
45982DXA
SLEEVE
water pump, w/bushings, 20303DA and 24017D
1шт.
25
24017D
BEARING
BUSHING, water pump shaft
1шт.
26
BODY, water pump (order 45980DA)
1шт.
27
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING, lubrication, straight, 1/8" (water pump bearing) (optional with 109461)
1шт.
27
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, (water pump bearing) (optional with 119512) 1/8"-27 x .66 lg
1шт.
28
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING, lubrication, straight, 1/8" (water pump shaft) (optional with 109461)
1шт.
28
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, (Water pump shaft) (Optional with 119512) 1/8"-27 x .66 lg
1шт.
29
2370DBX
FLANGE
fan and water pump pulley, w/nut, 114502 and screw 102831
1шт.
114502
JAM NUT,Jam, 5/16"-18, G5
1шт.
102831
SCREW
set hdls., slotted-dog-pt., 5/16-18NC x 7/8"
1шт.
30
G3792
SPRING
water pump driver
2шт.
31
20301D
STUD
driving, water pump
2шт.
34
20586D
PIN
water pump driver
1шт.
35
20585D
BLOCK DRIVER
DRIVER, water pump
1шт.
36
353727R92
BLADE
FAN
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
37
55347DA
1шт.
PUMP, water, assembly (composed of (2) bearing ST205A, (1) packing 27644DA (NS), (1) body 45980DA, (1) pin 20586D, (1) driver 20585D, (1) retainer 20306DX, (2) fitting 119512, (1) sleeve 20293D, (1) flange 2370DBX, (1) spacer 45993D, (1) gasket 21839DB, (2) spring G3792, (1) gland 20296D, (2) stud 20301D, (1) hub 8023DX, (2) washer 55358D, (1) impeller 6345DAX, (3) washer 103320, (1) nut 20299D, (1) washer 20300D, (1) nut 103025)
1шт.
37
353729R92
PUMP, water, 55347DA, w/fan, 353729R92, two screws, 179818 and two washers, 103320
1шт.
38
45981D
GASKET
water pump body
1шт.
355140R92
PACKAGE, REPAIR
1шт.
PACKAGE, service, water pump (consists of (2) bearing ST205A, (1) oil seal 20289D, (1) bushing 24017D, (1) oil seal 20290D, (1) bushing 20303DA, (1) packing 27644DA (NSS), (1) gasket, 21839DB, (1) pin 20586D, (1) gasket 45981D, (2) stud 20301D, (1) gland 20296D, (2) spring G3792, (1) impeller 6345DAX, (1) washer 20300D, (1) nut 20299D)
1шт.
