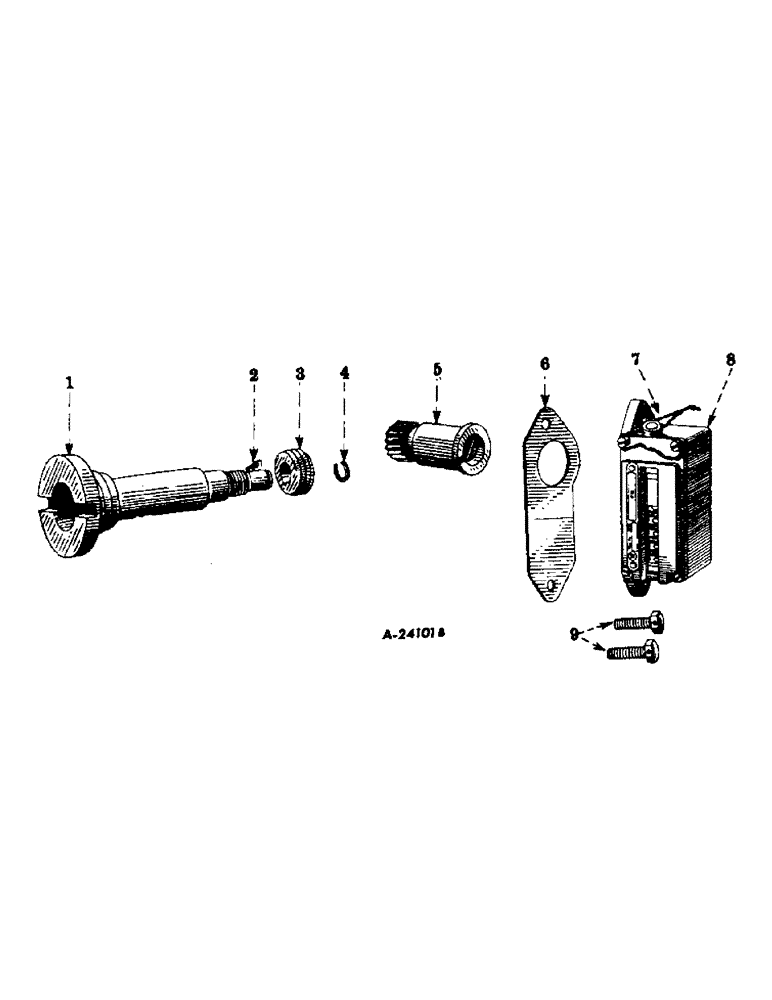

Запчасти Case IH SUPER M-TA (407) - ATTACHMENTS, SERVICE METER, VEEDER ROOT CORPORATION, SPECIAL Attachments

261882R91

ATTACHMENT, service meter (super "MD" and "MDV")

1шт.

357108R92

ATTACHMENT, service meter (super "M" and "MV")

1шт.

1

352560R1

SHAFT, magneto drive (super "M" and "MV") (not used on tractors equipped with hydraulic lift-all with engine-driven pump)

1шт.

2

103904

KEY, Woodruff 2, 3/32 x 1/2" (service meter drive gear)

1шт.

3

51001D

GEAR, drive, service meter (super "MD" and "MDV") (Mfr. 103782)

1шт.

3

261879R1

GEAR, drive, service meter (super "M" and "MV") (Mfr. 28375C)

1шт.

4

21362D

RETAINER, drive gear, service meter

1шт.

5

261880R91

GEAR, driven, service meter (super "M" and "MV") (Mfr. 283755)

1шт.

5

51002D

GEAR, driven, service meter (super "MD" and "MDV")

1шт.

6

49451DA

GASKET, service meter

1шт.

7

12736D

ELECTRICAL WIRE

SEAL, service meter

1шт.

8

261805R91

METER

service (Mfr. 1730273)

1шт.

9

23086D

SCREW, cap, service meter

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

355121R12

COVER, crankcase, assembly (illustrated with crankcase front cover) (super "M" and "MV")

1шт.

354956R1

GASKET

crankcase front cover (illustrated with crankcase front cover) (super "M" and "MV")

1шт.
