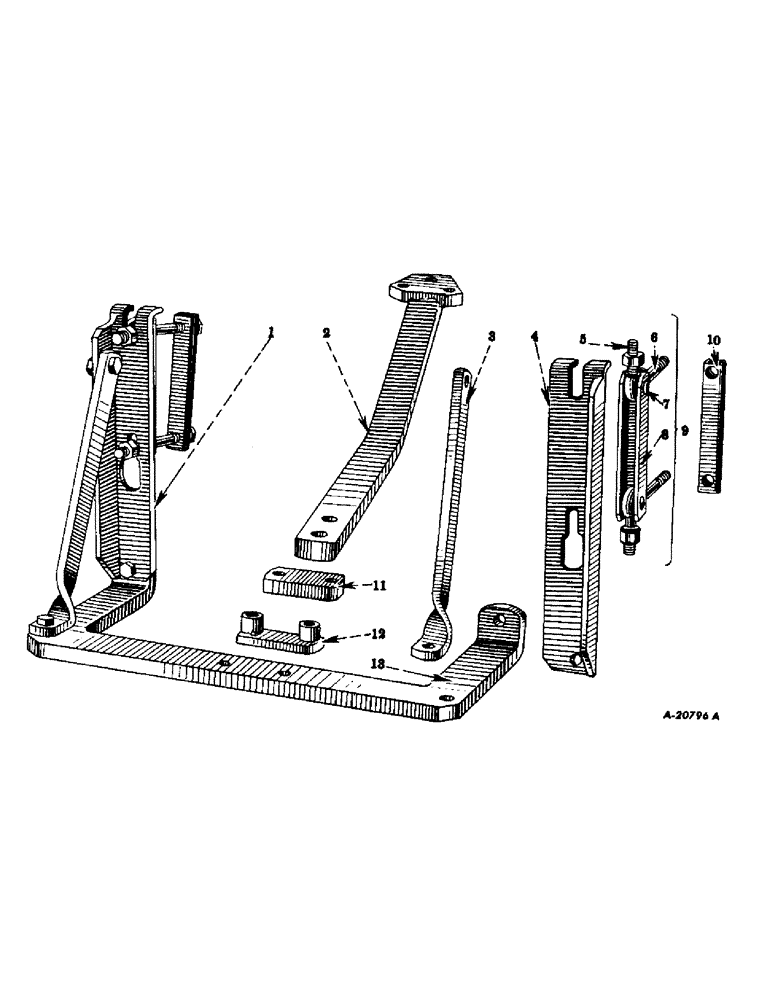

Запчасти Case IH SUPER M-TA (348) - CHASSIS, QUICK-ATTACHABLE, HIGH-HITCH, HEAVY-DUTY DRAWBAR, SPECIAL, SUPER "MV" & "MDV" (12) - CHASSIS

353287R92

DRAWBAR

ATTACHMENT, quick attachable high-hitch heavy-duty drawbar, Serial Range: F-501-F-52627

1шт.

359256R91

ATTACHMENT, quick attachable high-hitch heavy-duty drawbar, 60001 up

1шт.

1

353276R1

ANGLE, drawbar, L.H.

1шт.

2

353284R11

TONGUE, drawbar, w/plate, Serial Range: F-501-F-52627

1шт.

2

359254R11

TONGUE, drawbar, w/plate, 60001 up

1шт.

179974

SCREW, cap, hex-hd., 7/8-9NC x 2-1/4"

2шт.

179979

SCREW, cap, hex-hd., 7/8-9NC x 3-1/2"

1шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

3шт.

3

353275R1

BRACE, drawbar

2шт.

114821

NUT, hex., 3/4-10NC

4шт.

179951

SCREW, cap, hex-hd., 3/4-10NC x 1-7/8"

2шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

353277R1

ANGLE, drawbar, R.H.

1шт.

5

353272T21

EYEBOLT, drawbar attaching channel, w/nut, 357790R1 and washer, Q1552

4шт.

353025R1

NUT, drawbar eyebolt (coarse thread), Serial Range: F-501-F-31097

4шт.

357790R1

NUT

drawbar eyebolt (fine thread), F-31098 up

4шт.

Q1552

WASHER

plain, 25/32" I.D. x 1-1/4" O.D. x no. 10 ga.

4шт.

6

43685D

BOLT

drawbar attaching channel

4шт.

103031

TROUGH

NUT, hex., 3/4-16NF

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

43690D

PIN

drawbar attaching channel

4шт.

8

PO26267

CHANNEL, attaching, drawbar

2шт.

9

353273R92

CHANNEL, attaching, drawbar, assembly (composed of (2) bolt 43685D, (1) channel PO26267, (2) eyebolt 353272R21, (2) nut 103031, (2) pin 43690D, (2) washer 103326)

2шт.

10

PO26224

CLAMP, attaching, drawbar

2шт.

11

353274R1

STRAP, drawbar tongue

1шт.

114821

NUT, hex., 3/4-10NC

2шт.

179963

HUB

SCREW, cap, hex-hd., 3/4-10NC x 4-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

12

353280R11

SHIM, drawbar tongue, w/two spacers

1шт.

13

353278R11

DRAWBAR

1шт.

114821

NUT, hex., 3/4-10NC

2шт.

179953

SCREW, cap, hex-hd., 3/4-10NC x 2-1/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
