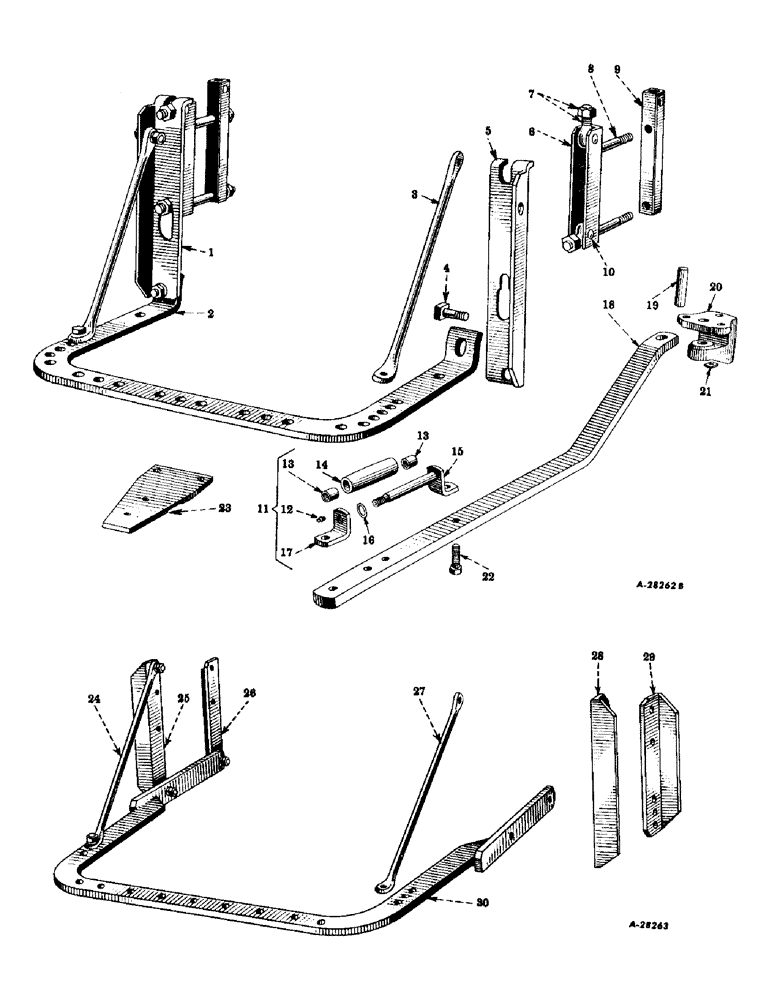

Запчасти Case IH SUPER M-TA (344) - CHASSIS, DRAWBAR, STANDARD, SUPER "M" AND "MD" (12) - CHASSIS

69045DC

UNIT, drawbar, assembly (reference nos. 1 to 10 inclusive)

1шт.

1

57231DA

ANGLE, drawbar, L.H.

1шт.

2

57230DB

DRAWBAR (standard)

1шт.

3

57233DA

ROD

BRACE, drawbar

2шт.

114821

NUT, hex., 3/4-10NC

4шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2"

2шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

41111D

BOLT,3/4" - 10 x 2 3/4"

drawbar pivot

2шт.

114821

NUT, hex., 3/4-10NC

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

57232DA

ANGLE, drawbar, R.H.

1шт.

6

51718DXB

CHANNEL

attaching, drawbar, assembly (composed of (2) bolt 45269D, (1) channel 51718D (NSS), (2) eyebolt 48291DAX, (2) nut 103032, (2) pin 41112D, (2) washer 103327)

2шт.

7

48291DAX

BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"

EYEBOLT, drawbar, w/nut, 357790R1 and washer, Q1552

4шт.

353025R1

NUT, drawbar eyebolt (coarse thread), F-501 to F-27067, Serial Range: L-500001-L-504266

4шт.

357790R1

NUT

drawbar eyebolt (fine thread), F-27068 up, L-504267 to L-512541

4шт.

Q1552

WASHER

plain, 25/32" I.D. x 1-1/4" O.D. x no. 10 ga.

4шт.

8

45269D

BOLT

attaching, drawbar

4шт.

129-129

NUT,7/8"-14, G5

hex., 7/8-14NF

4шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

9

51717DA

CLAMP, attaching, drawbar (will work for 365142R11) (optional with 360903R1)

2шт.

9

360903R1

CLAMP, attaching, drawbar (will work for 365142R11) (optional with 51717DA)

2шт.

10

41112D

PIN

drawbar, eyebolt

4шт.

49204DD

ATTACHMENT, swinging drawbar, F-501 to F-52627, L-500001 to L-512541 , (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

359178R91

ATTACHMENT, swinging drawbar, 60001 up, (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

11

356563R91

ROLLER

swinging drawbar, assembly (composed of (1) fitting 109461, (1) nut 114821, (1) roller 356562R11, (1) shaft 356561R11 (1) support 356565R1, (2) washer 358002R1, (1) washer 103326), (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) , Swinging drawbar (Special) (Super ''M'' and ''MD'') 1/8"-27 x .66 lg

1шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461) , SWINGING DRAWBAR (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

13

356564R1

BUSHING

swinging drawbar roller

2шт.

14

356562R11

ROLLER

swinging drawbar, w/two bushings, 356564R1

1шт.

15

356561R11

SHAFT

swinging drawbar, w/support

1шт.

13361R1

BOLT, machine, sq-hd., 5/8-11NC x 2-1/4" , SWINGING DRAWBAR (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

114820

NUT, hex., 5/8-11NC , SWINGING DRAWBAR (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

114821

NUT, hex., 3/4-10NC , SWINGING DRAWBAR (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Swinging drawbar (Special) (Super ''M'' and ''MD'') 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar (Special) (Super ''M'' and ''MD'') 3/4"

1шт.

16

358002R1

WASHER

swinging drawbar roller shaft , (SPECIAL) (SUPER ''M'' AND ''MD'')

2шт.

17

356565R1

SUPPORT

swinging drawbar roller shaft, front, (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

13361R1

BOLT, machine, sq-hd., 5/8-11NC x 2-1/4" , SWINGING DRAWBAR (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

114820

NUT, hex., 5/8-11NC , SWINGING DRAWBAR (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Swinging drawbar (Special) (Super ''M'' and ''MD'') 5/8"

1шт.

18

359177R1

DRAWBAR, swinging, 60001 up, (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

18

357529R1

DRAWBAR, swinging (1") (will work for 49200DB), F-501 to F-52627, L-500001 to L-512541, (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

19

57762D

PIN

swinging drawbar pivot (used with 8843DB) (see note 1), (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

19

58657D

PIN, swinging drawbar pivot (used with 8874DA) (see note 2), (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

20

8843DB

SUPPORT, swinging drawbar pivot (see note 1), (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

20

8874DA

SUPPORT, swinging drawbar pivot (see note 2), (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

179974

SCREW, cap, hex-hd., 7/8-9NC x 2-1/4" , SWINGING DRAWBAR (SPECIAL) (SUPER ''M'' AND ''MD'')

3шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, , Swinging drawbar (Special) (Super ''M'' and ''MD'') 7/8"

3шт.

21

57655D

PLATE

lock, swinging drawbar pivot pin, (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Swinging drawbar (Special) (Super ''M'' and ''MD'') Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Swinging drawbar (Special) (Super ''M'' and ''MD'') 3/8"

1шт.

22

179952

SCREW, cap, hex-hd., 3/4-10NC x 2" (used as drawbar roller stop) , SWINGING (SPECIAL) (SUPER ''M'' AND ''MD'')

2шт.

105611

NUT

sq., 3/4-10NC , SWINGING DRAWBAR (SPECIAL) (SUPER ''M'' AND ''MD'')

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar (Special) (Super ''M'' and ''MD'') 3/4"

2шт.

23

66426D

EXTENSION, drawbar (for tractor equipped with power take-off attachment) , SWINGING (SPECIAL) (SUPER ''M'' AND ''MD'')

1шт.

114821

NUT, hex., 3/4-10NC , SWINGING DRAWBAR (SPECIAL) (SUPER ''M'' AND ''MD'')

2шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2" , SWINGING DRAWBAR (SPECIAL) (SUPER ''M'' AND ''MD'')

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Swinging drawbar (Special) (Super ''M'' and ''MD'') 3/4"

2шт.

24

65143D

BRACE, drawbar, L.H., (SUPER ''M'' AND ''MD'')

1шт.

114821

NUT, hex., 3/4-10NC , DRAWBAR , (SUPER ''M'' AND ''MD'')

2шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", DRAWBAR , (SUPER ''M'' AND ''MD'')

1шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2", DRAWBAR , (SUPER ''M'' AND ''MD'')

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar, (Super ''M'' and ''MD'') 3/4"

2шт.

25

65141D

BRACKET, drawbar, rear, L.H., (SUPER ''M'' AND ''MD'')

1шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", DRAWBAR , (SUPER ''M'' AND ''MD'')

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar, (Super ''M'' and ''MD'') 3/4"

2шт.

26

65139D

BRACKET, drawbar, front, L.H., (SUPER ''M'' AND ''MD'')

1шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", DRAWBAR , (SUPER ''M'' AND ''MD'')

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar, (Super ''M'' and ''MD'') 3/4"

2шт.

27

65144D

BRACE, drawbar, R.H., (SUPER ''M'' AND ''MD'')

1шт.

114821

NUT, hex., 3/4-10NC, DRAWBAR , (SUPER ''M'' AND ''MD'')

2шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", DRAWBAR , (SUPER ''M'' AND ''MD'')

1шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2", DRAWBAR , (SUPER ''M'' AND ''MD'')

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar, (Super ''M'' and ''MD'') 3/4"

2шт.

28

65142D

BRACKET, drawbar, rear, R.H. , (SUPER ''M'' AND ''MD'')

1шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", DRAWBAR , (SUPER ''M'' AND ''MD'')

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar, (Super ''M'' and ''MD'') 3/4"

2шт.

29

65140D

BRACKET, drawbar, front, R.H. , (SUPER ''M'' AND ''MD'')

1шт.

179952

SCREW, cap, hex-hd., 3/4-10NC x 2", DRAWBAR , (SUPER ''M'' AND ''MD'')

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar, (Super ''M'' and ''MD'') 3/4"

2шт.

30

65137DX

DRAWBAR, (SUPER ''M'' AND ''MD'')

1шт.

114821

NUT, hex., 3/4-10NC, DRAWBAR , (SUPER ''M'' AND ''MD'')

4шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2", DRAWBAR , (SUPER ''M'' AND ''MD'')

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar, (Super ''M'' and ''MD'') 3/4"

4шт.
