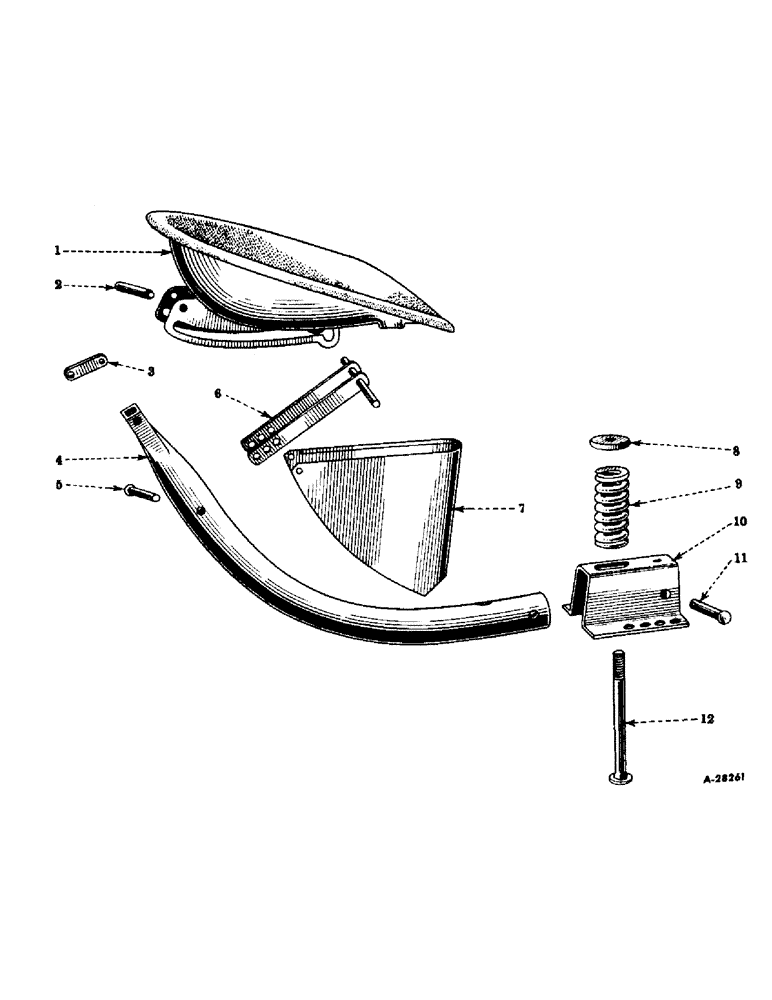

Запчасти Case IH SUPER M-TA (336) - CHASSIS, SEATS AND SUPPORTS, FOR TRACTORS F-501 TO F-28174 AND L-500001 TO L-504801 (12) - CHASSIS

1

49498DE

SEAT

w/upholstery

1шт.

1

354156R92

SEAT

deluxe upholstered

1шт.

2

51292DA

PIN, seat pivot bracket

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

58709D

CLIP, plow trip rope

1шт.

4

54503DBX

PIPE, seat support, w/bushing

1шт.

5

Q3550

PIN

seat brace, lower

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

6

58712D

BRACE, seat (side members with pin)

1шт.

7

54504D

BOX, tool

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179830

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

54189D

CAP, seat support spring

1шт.

9

48930D

SPRING, seat support

1шт.

10

65433D

BRACKET, seat support

1шт.

179927

SCREW,Hex, 5/18" - 11 x 1 1/2"

cap, hex-hd., 5/8-11NC x 1-1/2"

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

58679DB

PIN, pivot, seat support pipe

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

12

53592D

BOLT, seat support spring

1шт.

218443

NUT

jam, hex., 3/4-10NC

2шт.

359652R91

SEAL

ATTACHMENT, deluxe type upholstered seat (consists of seat, 354156R92)

1шт.

351440R93

PAD

ATTACHMENT, detachable seat pad (deluxe) (consists of pad, 351438R93)

1шт.

359555R91

PAD

ATTACHMENT, detachable seat pad (consists of pad, 359483R91)

1шт.

360454R91

1шт.

PACKAGE, hydraulic seat suspension and battery box (composed of (2) bolt 13252R1, (4) bolt 358268R2, (2) bolt 358277R1, (1) box 358693R91, (1) cable 360455R91, (1) clamp 358279R11, (1) clip 62512D, (1) cover 358275R11, (1) lever 358267R91, (4) nut 103028, (2) nut 103128, (2) nut 220068, (2) pin 103361, (2) plug 172529, (4) rubber 358281R1, (2) screw 179870, (2) screw 179879, (2) screw 179925, (1) screw 16247R1, (1) spacer 358285R1, (4) spacer 353309R1, (1) strap 358987R91, (1) support 358287R1, (1) unit 355

1шт.

351438R93

PAD

detachable seat (rubber)

1шт.

359483R91

PAD

detachable seat (jute)

1шт.
