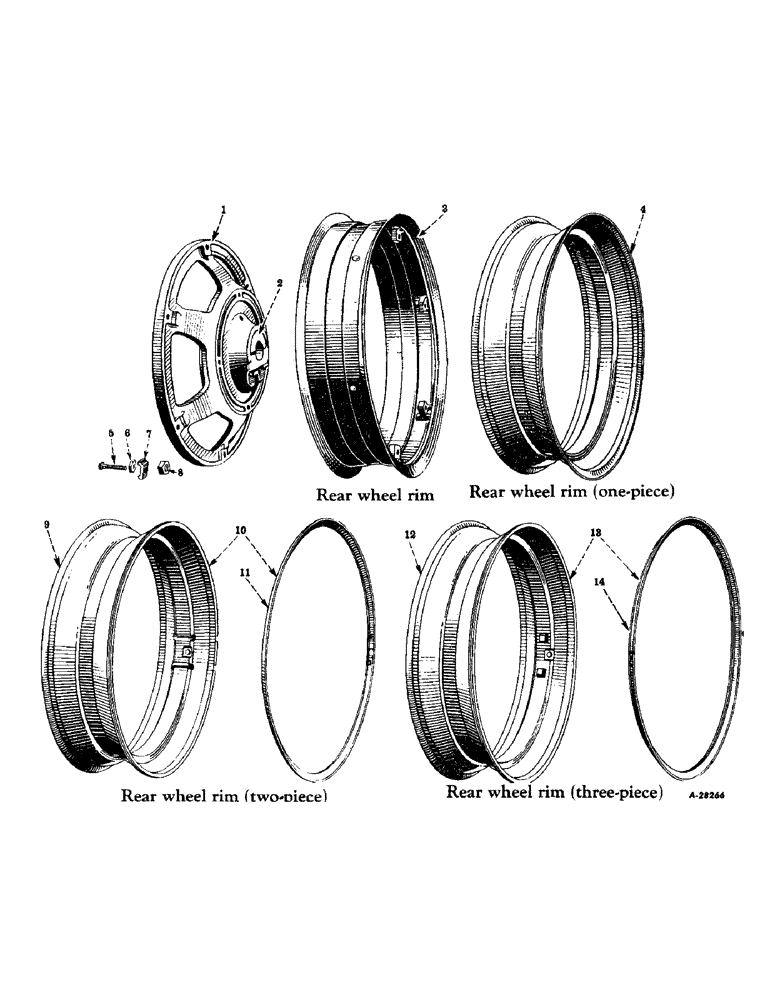

Запчасти Case IH SUPER M-TA (325) - CHASSIS, REAR WHEELS, PNEUMATIC TIRES, SUPER "MV" AND "MDV" (12) - CHASSIS

1

355439R1

WHEEL, rear

2шт.

2

355440R1

CLAMP, hub, rear wheel

4шт.

355441R1

BOLT

rear wheel hub clamp

8шт.

3

351864R92

RIM, rear wheel, w/clamp (variable tread), 8.00T x 36, 12-36, 13-36

2шт.

13454R1

BOLT, machine, sq-hd., 5/8-11NC x 3-1/2"

12шт.

351832R1

NUT

hex., 5/8-11NC

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

3

357525R91

RIM, rear wheel, w/clamp, 8.00T x 44, 12-44

2шт.

357523R1

BOLT, rear wheel rim clamp

12шт.

352777R1

NUT

rear wheel rim mounting bolt

12шт.

1-3

355031R93

WHEEL, rear, w/rim, assembly, 8.00T x 36, 12-36, 13-36 (composed of, (4) bolt 355441R1, (6) bolt 13454R1, (2) clamp 355440R1, (6) nut 351832R1, (1) rim 351864R92, (6) washer 103325, (1) wheel 355439R1)

2шт.

1-3

357524R91

WHEEL, rear, w/rim, assembly, 8.00T x 44, 12-44 (composed of (4) bolt 355441R1, (6) bolt 357523R1, (2) clamp 355440R1, (6) nut 352777R1, (1) rim 357525R91, (1) wheel 355439R1)

2шт.

1-4

355028R92

WHEEL, rear, w/rim, assembly, DW-11-38, 12-38, 13-38 (composed of (6) bolt 48985DA, (4) bolt 355441R1, (12) clamp 48984D, (2) clamp 355440R1, (6) nut 351832R1, (6) nut 351833R1, (1) rim 55564D, (1) wheel 355439R1)

2шт.

355022R92

2шт.

WHEEL, rear, w/rim, assembly, 8.00T x 36, 12-36, 13-36 (reference nos. 1-10 or 1-13) (composed of (6) bolt 48985DA, (4) bolt 355441R1, (12) clamp 48984D, (2) clamp 355440R1, (6) nut 351832R1, (6) nut 351833R1, (1) rim 45865D or, (1) rim 45867D, (1) wheel 355439R1)

1шт.

4

55564D

RIM, rear wheel (1 piece), DW11-38, 12-38, 13-38

2шт.

5

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

rear wheel rim clamp (not used with attached clamp rim)

12шт.

6

355833R1

NUT, jam, rear wheel rim mounting (not used with attached clamp rim)

12шт.

7

48984D

CLAMP

rear wheel rim (used with all rims, except 351864R92 and 357525R91) (not used with attached clamp rim)

24шт.

8

351832R1

NUT

rear wheel rim mounting (not used with attached clamp rim)

12шт.

9

45866D

BASE, rear wheel rim (used with rim 45865D)

2шт.

10

45865D

RIM, rear wheel (2-piece) (composed of base, 45866D and side ring, 38921D) (optional with 45867D)

2шт.

11

38921D

RING, rear wheel rim side (used with rim 45865D)

2шт.

12

45868D

BASE, rear wheel rim (used with rim 45867D)

2шт.

13

45867D

RIM, rear wheel (3-piece) (composed of base, 45868D and rim side and locking ring, 37656D) (optional with 45865D)

2шт.

14

37656D

RING, rear wheel rim side, w/locking ring (used with rim 45867D)

2шт.
