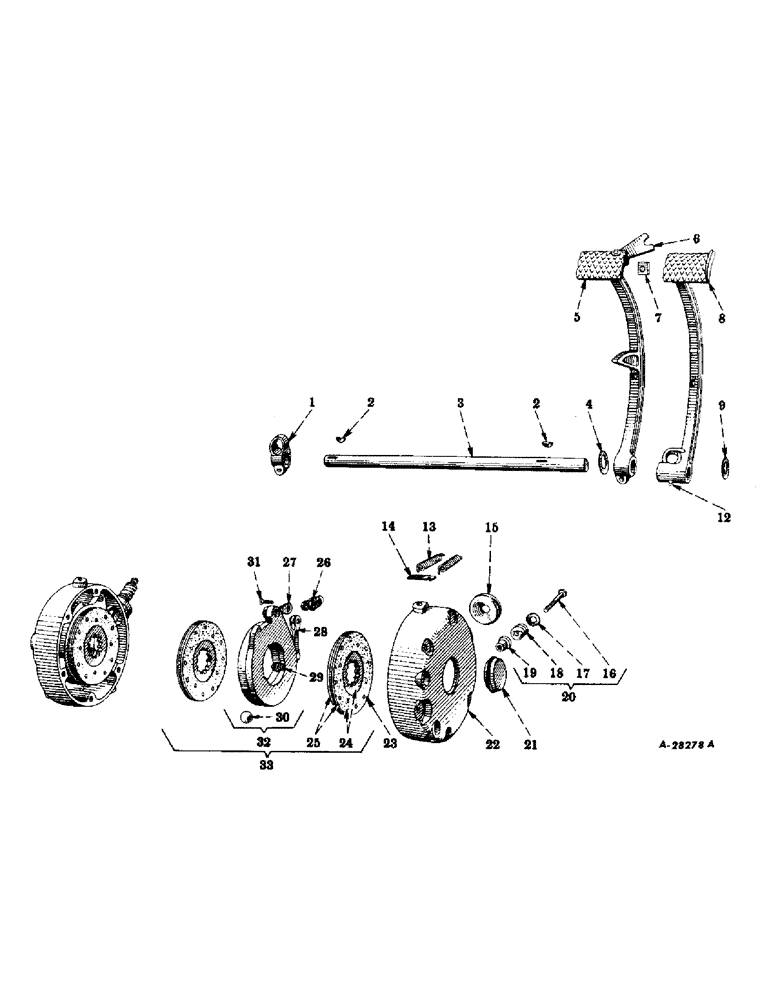

Запчасти Case IH SUPER M-TA (322) - CHASSIS, BRAKES AND CONNECTIONS (12) - CHASSIS

1

357102R2

LEVER, brake shaft

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

2

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, Woodruff, ni-stl, 13, 3/16 x 1"

2шт.

3

357046R1

SHAFT

brake pedal

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

4

48983D

THRUST WASHER

thrust, brake pedal shaft

2шт.

5

357103R21

PEDAL, brake, L.H. (will work for 357293R91) (composed of (1) pedal 357103R2 (NSS) (1) plate 43751DB (1) rivet 104087 (1) spring 51293D)

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

6

43751DB

LATCH, PEDALS

PLATE, lock, brake pedal

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

rd-hd., 1/4 x 1-1/4"

1шт.

7

51293D

SPRING

tension, brake pedal lock plate

1шт.

8

357104R31

PEDAL, brake, R.H., w/fitting, 66584D (will work for 357294R92)

1шт.

9

40435D

WASHER, brake pedal shaft

1шт.

12

66584D

FITTING

lubrication, staight drive type, 3/16"

1шт.

13

357164R1

SPRING

return brake pedal

2шт.

14

357045R1

ANCHOR

brake pedal return spring

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

357044R1

INSULATOR

BOOT, enclosure

2шт.

16

357040R1

SPECIAL BOLT,7/16" - 20 x 4 1/2"

ROD, operating, brake

2шт.

114495

NUT, jam, hex., 7/16-20NF

6шт.

17

Q5037

WASHER

plain, 15/32" I.D. x 1-1/8" O.D. x no. 11 ga.

2шт.

18

357041R1

SPRING

brake operating rod

2шт.

19

357042R1

BALL

brake operating rod

2шт.

20

357040R11

KIT

ROD, operating, brake, assembly (composed of (1) ball 357042R1, (3) nut 114495, (1) rod 357040R1, (1) spring 357041R1, (1) washer Q5037)

2шт.

21

357101R1

PLUG

brake housing cup

2шт.

22

357105R1

HOUSING, brake

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

(LH housing only) Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/4"

2шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/2"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (L.H. housing only) 3/8"

1шт.

23

354629R1

RIVET

tubular, steel, 3/16 x 1/2" (Auto Specialties BP-487-A)

24шт.

24

357117R91

DISC

middle, w/two linings and twelve rivets, 354629R1 (Auto Specialties MA-6575)

2шт.

25

357112R91

LINING

PACKAGE, service brake lining (four linings, w/twenty-four rivets, 354629R1)

2шт.

26

357043R1

CLEVIS,3/8" - 24

YOKE, brake operating rod

2шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, rod end, 7/16 x 1-15/64"

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

27

357113R1

LINK

actuating (plain) (Auto Specialties BP-653)

2шт.

28

357114R1

LINK

actuating (yoke) (Auto Specialties BP-654)

2шт.

29

357116R1

SPRING

extension (Auto Specialties BP-4507)

6шт.

30

16028R1

BALL

7/8"

10шт.

31

354642R1

STUD

actuating disc (Auto Specialties BP-53050)

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.

32

357118R91

DISC

actuating, assembly (composed of (5) ball 16028R1, (2) disc (NSS), (1) link 357113R1, (1) link 357114R1, (2) nut 114493, (3) spring 357116R1, (2) stud 354642R1)

2шт.

33

357100R91

DISC

BRAKE, double disc (includes disc assembly, 357117R91 and disc assembly, 357118R91) (Auto Specialties BMA-6500)

2шт.
