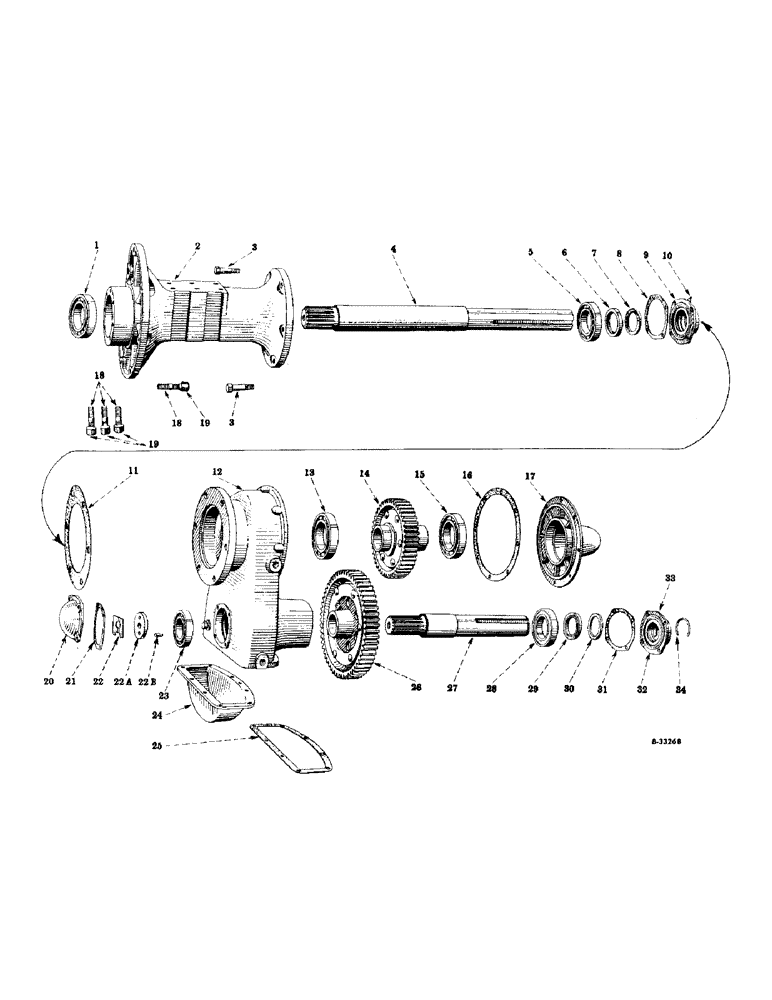

Запчасти Case IH SUPER M-TA (319) - CHASSIS, COUNTERSHAFT, CARRIER AND DRIVE GEAR UNIT, SPECIAL (12) - CHASSIS

1

ST223

BALL BEARING

BEARING, ball, countershaft, inner (IH-L-270)

2шт.

2

350303R3

CARRIER, countershaft, left

1шт.

425-1110

NUT,5/8"-18, G5

4шт.

179931

BOLT,Hex, 5/18" - 11 x 2"

SCREW, cap, hex-hd., 5/8-11NC x 2"

3шт.

181486

SCREW, cap, hex-hd., 5/8-18NF x 2-1/2"

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

2

350304R3

CARRIER, countershaft, right

1шт.

425-1110

NUT,5/8"-18, G5

4шт.

179931

BOLT,Hex, 5/18" - 11 x 2"

SCREW, cap, hex-hd., 5/8-11NC x 2"

3шт.

181486

SCREW, cap, hex-hd., 5/8-18NF x 2-1/2"

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

3

350268R1

BOLT, dowel, drive gear housing

4шт.

425-1110

NUT,5/8"-18, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

350305R2

COUNTERSHAFT

2шт.

5

ST310

BALL BEARING

BEARING, ball, countershaft, outer (IH-PC-270)

2шт.

6

360457R91

SEAL

OIL SEAL (will work for 48776D, 358780R91 and 358819R91)

2шт.

7

45085D

SEALING WASHER

WASHER, felt

2шт.

8

48950D

GASKET

countershaft outer ball bearing cover

2шт.

9

6727DBXA

CAGE

COVER, countershaft outer ball bearing, w/oil seal, 360457R91 and felt washer, 45085D

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

10

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, 30deg. elbow, 1/8" (countershaft outer ball bearing) (optional with 109353)

2шт.

10

109353

FITTING, lubrication, 30deg. elbow, 1/8" (countershaft outer ball bearing) (optional with 109459)

2шт.

11

350307R1

GASKET, drive gear housing

2шт.

12

350306R31

HOUSING, drive gear, w/plug, 103869 and plug, 103870

2шт.

217-442

PLUG,3/4" - 14

pipe, sq-hd., 3/4"

2шт.

103870

PLUG, pipe, sq-hd., 1"

2шт.

13

ST512

BEARING, drive pinion inner hub (IH-C-285)

2шт.

14

350309R91

PINION, drive (44 teeth) w/six rivets, 104133

2шт.

104133

RIVET, rd-hd., 1/2 x 1-3/4"

12шт.

15

ST512

BEARING, drive pinion outer hub (IH-C-285)

2шт.

16

350270R1

GASKET, drive gear housing cover

2шт.

17

350308R1

COVER, drive gear housing

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

16шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

18

59964D

STUD, countershaft carrier

8шт.

19

350295R1

NUT, countershaft carrier stud

8шт.

20

350278R1

COVER, axle inner ball bearing

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

21

350279R1

GASKET, axle inner ball bearing cover

2шт.

22

63206D

LOCK WASHER

LOCK, rear axle bearing retainer washer, inner

2шт.

22a

67399DX

WASHER, rear axle bearing retainer, inner, w/pin, 33659D

2шт.

181505

SCREW, cap, hex-hd., 3/4-16NF x 1-1/2"

2шт.

22b

33659D

PIN, rear axle bearing retainer washer, inner, assembly

2шт.

23

ST269

BEARING

ball, axle, inner (IH-C-260)

2шт.

24

350280R11

PAN, oil, drive gear housing, w/plug, 103870

2шт.

103870

PLUG, pipe, sq-hd., 1"

2шт.

NLS

NO LONGER SERVICED

16шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

25

350281R2

GASKET, drive gear housing oil pan

2шт.

26

350275R11

GEAR, drive (57 teeth), w/six rivets, 104133

2шт.

104133

RIVET, rd-hd., 1/2 x 1-3/4"

12шт.

27

350311R4

AXLE, rear

2шт.

28

ST253

BALL BEARING,70 mm ID x 125 mm OD x 24 mm

BEARING, ball, axle, outer (IH-PL-270)

2шт.

29

360457R91

SEAL

OIL SEAL, rear axle (will work for 48776D, 35878R91 and 358819R91)

2шт.

30

45085D

SEALING WASHER

WASHER, felt, rear axle

2шт.

31

48950D

GASKET

axle ball bearing outer cover

2шт.

32

6727DBXA

CAGE

COVER, axle outer bearing, w/oil seal, 360457R91 and felt washer, 45085D

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

33

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, 30deg. elbow, 1/8" (axle outer ball bearing) (optional with 109353)

2шт.

33

109353

FITTING, lubrication, 30deg. elbow, 1/8" (axle outer ball bearing) (optional with 109459)

2шт.

34

350312R1

RING, snap

2шт.
