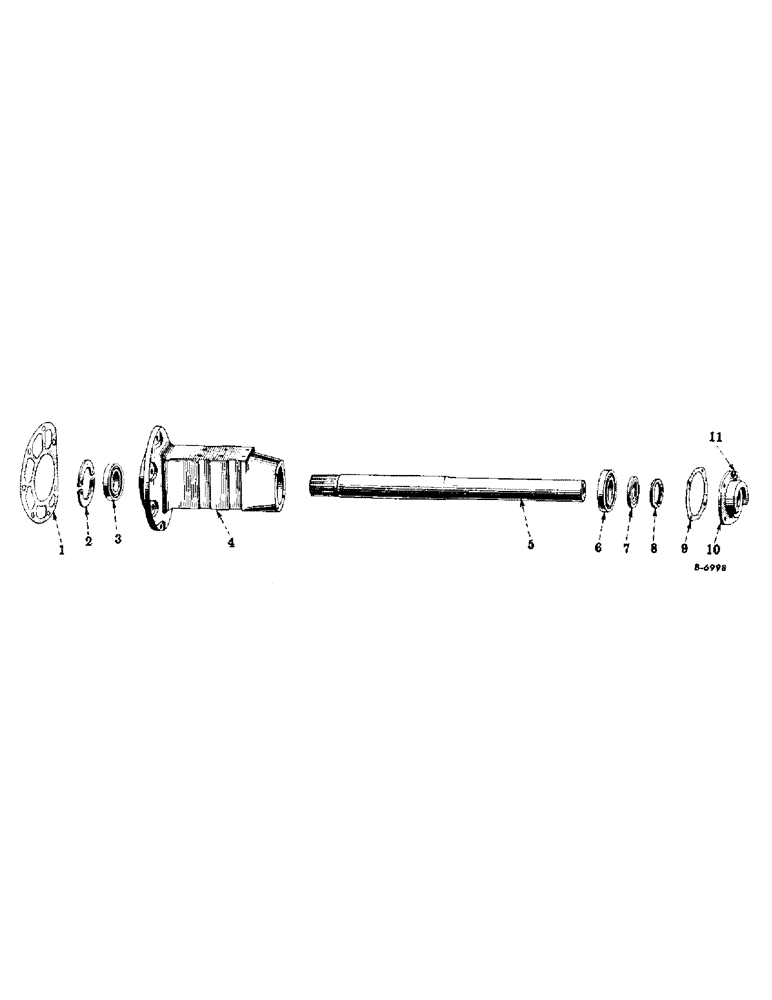

Запчасти Case IH SUPER M-TA (314) - CHASSIS, REAR AXLE, SUPER "M" AND "MD" (12) - CHASSIS

1

47670DB

GASKET

GASKET, rear axle carrier (also "MV" and "MDV")

2шт.

2

353160R1

RETAINER, rear axle ball bearing, inner

4шт.

179882

PIN

SCREW, cap, hex-hd., 1/2-13NC x 1-1/8"

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3

ST223

BALL BEARING

BEARING, ball, rear axle, inner (IH-L-270)

2шт.

4

6734DB

CARRIER, rear axle, L.H.

1шт.

179931

BOLT,Hex, 5/18" - 11 x 2"

SCREW, cap, hex-hd., 5/8-11NC x 2"

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

4

6735DB

CARRIER, rear axle, R.H.

1шт.

179931

BOLT,Hex, 5/18" - 11 x 2"

SCREW, cap, hex-hd., 5/8-11NC x 2"

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

5

51572DB

AXLE, rear

2шт.

5

52147DC

AXLE, rear (for 100" maximum tread) (special)

2шт.

6

ST310

BALL BEARING

BEARING, ball, rear axle, outer (IH-PC-270)

2шт.

7

360457R91

SEAL

OIL SEAL, rear axle (will work for 48776D, 358780R91, and 358819R91)

2шт.

8

45085D

SEALING WASHER

WASHER, felt, rear axle

2шт.

9

48950D

GASKET

rear axle carrier cap

2шт.

10

6727DBXA

CAGE

CAP, rear axle carrier, w/oil seal, 360457R91 and washer, 45085D

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (rear axle outer bearing) (optional with 109461)

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Rear axle outer bearing) (Optional with 119512) 1/8"-27 x .66 lg

2шт.

52148DB

ATTACHMENT, 100" wide tread rear axle (consisting of two rear axles, 52147DC)

1шт.

353323R92

ATTACHMENT, rear axle extension (tractors equipped with pneumatic tire rear wheels) (composed of (2) clamp 353328R1, (1) extension 353327R2, (10) nut 103032, (10) screw 181533, (10) washer 103327)

1шт.

353327R2

EXTENSION, axle, rear

1шт.

353328R1

CLAMP, rear axle extension

2шт.

129-129

NUT,7/8"-14, G5

hex., 7/8-14NF

10шт.

181533

SCREW, cap, hex-hd., 7/8-14NF x 4-3/4"

10шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

10шт.
