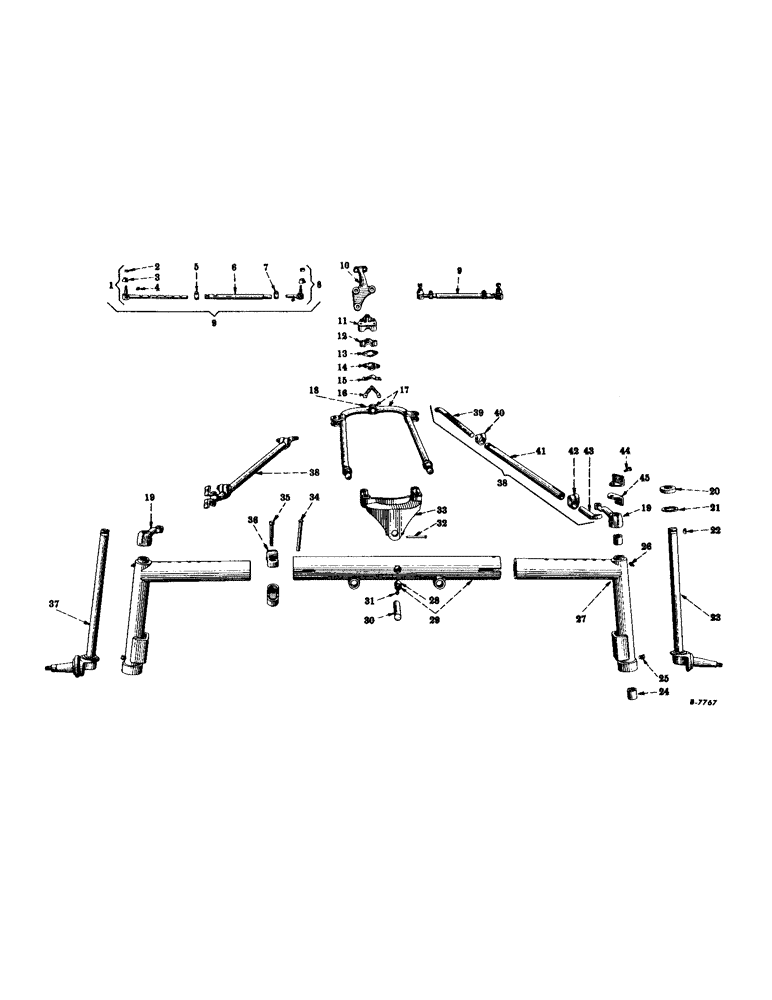

Запчасти Case IH SUPER M-TA (296) - CHASSIS, ADJUSTABLE FRONT AXLE, LOWER BOLSTER, STAY ROD AND STEERING CONNECTIONS (12) - CHASSIS

1

358983R91

TIE-ROD

TIE ROD, L.H., assembly (Thompson products X-195-VN-11) (composed of (1) cover 358900R1, (1) end (order 358983R91) (NSS), (1) nut 358901R1, (1) pin 103386)

2шт.

1

359984R91

ROD

TIE ROD, L.H., assembly (Columbus Auto Parts H-X-2770) (composed of (1) cover 359982R1, (1) end (order 359984R91) (NSS), (1) nut 359983R1, (1) pin 103386)

2шт.

2

358901R1

SLOTTED NUT

tie rod end (Thompson products 10-MN-38)

4шт.

2

359983R1

NUT

tie rod end (Columbus Auto Parts S-X-2379)

4шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

3

358900R1

SEAL

COVER, dust, tie rod end (Thompson products 14-DC-58)

4шт.

3

359982R1

COVER

dust, tie rod end (Columbus Auto Parts S-X-2766)

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Tie rod) (Optional with 119512) 1/8"-27 x .66 lg

4шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (tie rod) (optional with 109461)

4шт.

5

358982R1

CLAMP, tie rod (adjustable end) (Thompson products X-232AD-1)

2шт.

5

359986R1

CLAMP

tie rod (adjustable end) (Columbus Auto Parts S-X-2768)

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

2шт.

6

358980R1

TUBE, tie rod (Thompson products X-232-VN-1)

2шт.

6

359980R1

TUBE

tie rod (Columbus Auto parts D-X-2774)

2шт.

7

358981R1

CLAMP, tie rod (threaded end) (Thompson products X-232AD)

2шт.

7

359985R1

CLAMP

tie rod (threaded end) (Columbus Auto Parts S-12228)

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

2шт.

8

360678R91

END

tie rod, assembly (R.H. thread) (Thompson products X-195-VN-13) (composed of (1) cover 358900R1, (1) end (order 360678R91) (NSS), (1) nut 358901R1, (1) pin 103386)

2шт.

8

359981R91

END

tie rod, assembly (R.H. thread) (Columbus Auto Parts D-X-2759) (composed of (1) cover 359982R1, (1) end (order 359981R91) (NSS), (1) nut 359983R1, (1) pin 103386)

2шт.

9

358979R91

TIE ROD, assembly (Thompson products X-195-VN) (optional with 359569R91) (composed of (1) clamp 358981R1, (1) clamp 358982R1, (1) end 360678R91, (2) nut 103028, (2) screw 181435, (1) tie rod 358983R91, (1) tube 358980R1, (2) washer 114608)

2шт.

9

359569R91

TIE ROD, assembly (Columbus Auto Parts H-X-2770) (optional with 358979R91) (composed of (1) clamp 359985R1, (1) clamp 359986R1, (1) end 359981R91, (2) nut 103028, (2) screw 181435, (1) tie rod 359984R91, (1) tube 359980R1, (2) washer 114608)

2шт.

10

358970R1

ARM

steering gear

1шт.

11

358974R1

SOCKET, ball, stay rod (super "MDV"), Serial Range: F-45371-F-52627

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-5/8"

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 2-1/4"

2шт.

12

9020D

SOCKET

ball, stay rod (super "MV") (super "MDV"), see note C

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-5/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

13

60762D

SHIM

ball socket, stay rod

4шт.

14

60763DB

CYLINDER END CAP

CAP, ball socket, stay rod

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3" (super "MV") (super "MDV"), see note C

2шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-5/8" (super "MDV"), F-45371 to F-52627

2шт.

15

358345R1

PLATE ASSY.

PLATE, lock, stay rod ball socket cap

1шт.

16

358975R1

PLATE, lock, stay rod ball socket (super "MDV"), Serial Range: F-45371-F-52627

1шт.

17

358972R11

ROD, stay, w/ball, 10546D, and brackets, Serial Range: F-45371-F-52627

1шт.

17

360510R11

ROD, stay, w/ball, 10546D, and brackets, see note C

1шт.

427392

NUT, hex., jam, 1-3/8" - 12NF

2шт.

118028

WASHER, lock, light, 1-3/8"

2шт.

18

10546D

BALL

stay rod

1шт.

19

358971R1

ARM, steering knuckle

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18NF x 3"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

20

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

thrust, steering knuckle pivot (Aetna A-2182) (optional with 361034R91)

2шт.

20

361034R91

BEARING

thrust, steering knuckle pivot (Nice #R-3916) (optional with 357349R91)

2шт.

21

55412D

WASHER

WASHER, felt, steering knuckle pivot

2шт.

22

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff no. 127, 1/4 x 2-1/8" (steering knuckle arm)

2шт.

23

358968R91

KNUCKLE, steering (R.H.) assembly (composed of (1) knuckle 358960R1 (NSS), (1) oil seal 48704D, (1) pin 358966R1 (NSS), (1) shield 48701D, (1) spacer 51901D, (1) washer 48702D)

1шт.

24

358958R1

BUSHING

steering knuckle pivot pin

4шт.

25

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90deg. elbow, 1/8" (steering knuckle pivot pin, lower) (optional with 109354)

2шт.

25

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90deg. elbow, 1/8" (steering knuckle pivot pin, lower) (optional with 109462)

2шт.

26

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Steering knuckle pivot pin, upper) (Optional with 119512) 1/8"-27 x .66 lg

2шт.

26

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (steering knuckle pivot pin, upper) (optional with 109461)

2шт.

27

358959R91

EXTENSION, front axle, w/two bushings, 358958R1

2шт.

28

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

front axle pivot pin

2шт.

29

358976R11

FRONT AXLE

AXLE, front, w/two bushings, 48841D

1шт.

30

358978R1

PIN

front axle pivot

1шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, Front axle pivot pin) (Optional with 110347) 1/4"-28 NPT x .54" lg

1шт.

31

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, straight, 1/4" (front axle pivot pin) (optional with 109454)

1шт.

32

Q3537

HEADED PIN,3/8" x 4 1/8"

PIN, headed, locking, 3/8 x 4-1/8" (front axle pivot pin)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

33

358969R1

BOLSTER, lower

1шт.

179955

SCREW, cap, hex-hd., 3/4-10NC x 2-3/4"

2шт.

179959

SCREW, cap, hex-hd., 3/4-10NC x 3-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

34

350557R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

35

350558R1

BOLT

front axle clamp

4шт.

103031

TROUGH

NUT, hex., 3/4-16NF

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

36

350556R1

CLAMP

front axle

4шт.

37

358967R91

KNUCKLE, steering (L.H.) assembly (composed of (1) knuckle 358960R1 (NSS), (1) oil seal 48704D, (1) pin 358966R1 (NSS), (1) shield 48701D, (1) spacer 51901D, (1) washer 48702D)

1шт.

38

358997R91

STAY ROD, auxiliary, assembly (composed of (1) clamp 359003R1, (1) clamp 359004R1, (1) end 359001R1, (1) end 359002R1, (2) nut 103030, (2) screw 181488, (1) tube 358998R1, (2) washer 114609)

2шт.

39

359001R1

END, adjustable, auxiliary stay rod

2шт.

103031

TROUGH

NUT, hex., 3/8-16NF

2шт.

181513

SCREW, cap, hex-hd., 3/4-16NF x 2-1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

40

359003R1

CLAMP

auxiliary stay rod (adjustable end)

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18NF x 3"

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

41

358998R1

TUBE, auxiliary stay rod

2шт.

42

359004R1

CLAMP

auxiliary stay rod (threaded end)

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18NF x 3"

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

43

359002R1

END, threaded, auxiliary stay rod

2шт.

103031

TROUGH

NUT, hex., 3/4-16NF

2шт.

181513

SCREW, cap, hex-hd., 3/4-16NF x 2-1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

44

359006R1

BOLT

BOLT, auxiliary stay rod mounting, front

8шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

45

359005R1

BRACKET, auxiliary stay rod mounting, front

4шт.

358996R91

ATTACHMENT, auxiliary stay rod (consists of 2 each refs. no 39 thru 45)

1шт.

48704D

SEAL

OIL SEAL, front wheel (illustrated with front wheel)

2шт.

48701D

SHIELD

dust, front wheel (illustrated with front wheel)

2шт.

51901D

SPACER

front wheel bearing (illustrated with front wheel)

2шт.

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

felt, front wheel (illustrated with front wheel)

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
