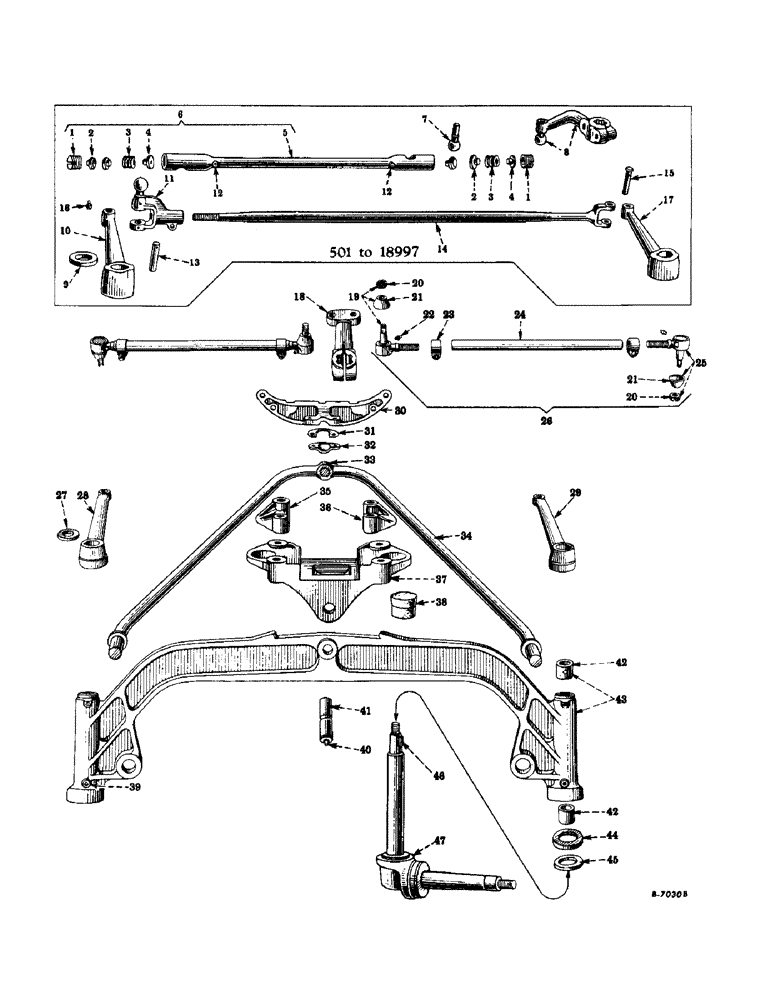

Запчасти Case IH SUPER M-TA (290) - CHASSIS, FRONT AXLE, LOWER BOLSTER & STEERING CONNECTIONS (12) - CHASSIS

1

10823D

NUT, drag link, Serial Range: F-501-18997

2шт.

+ - Used with 65091DY ++ - Used with 357810R91

1шт.

1

66294H

NUT, drag link, Serial Range: F-501-18997

2шт.

+ - Used with 65091DY ++ - Used with 357810R91

1шт.

2

10824D

SEAT, ball, drag link, Serial Range: F-501-18997

4шт.

+ - Used with 65091DY ++ - Used with 357810R91

1шт.

2

66290H

SEAT

ball, drag link, Serial Range: F-501-18997

4шт.

+ - Used with 65091DY ++ - Used with 357810R91

1шт.

3

10825D

SPRING, drag link, Serial Range: F-501-18997

2шт.

+ - Used with 65091DY ++ - Used with 357810R91

1шт.

3

66292H

SPRING, drag link, Serial Range: F-501-18997

2шт.

+ - Used with 65091DY ++ - Used with 357810R91

1шт.

4

12333D

PLUG, safety, drag link, Serial Range: F-501-18997

2шт.

+ - Used with 65091DY ++ - Used with 357810R91

1шт.

4

66293H

PLUG, safety, drag link, Serial Range: F-501-18997

2шт.

+ - Used with 65091DY ++ - Used with 357810R91

1шт.

5

65091DX

LINK, drag, Serial Range: F-501-18997

1шт.

+ - Used with 65091DY ++ - Used with 357810R91

1шт.

5

357809R1

LINK, drag, Serial Range: F-501-18997

1шт.

+ - Used with 65091DY ++ - Used with 357810R91

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.

6

65091DY

LINK, drag, assembly (steel tubing type) (optional with 357810R91), F-501 to 18997 (composed of (1) link 65091DX, (2) nut 10823D, (2) pin 103389, (2) plug 12333D, (4) seat 10824D, (2) spring 10825D)

1шт.

6

357810R91

LINK, drag, assembly (solid round bar type) (optional with 65091DY), F-501 to 18997 (composed of (1) link 357809R1, (2) nut 66294H, (2) pin 103389, (2) plug 66293H, (4) seat 66290H, (2) spring 66292H)

1шт.

7

12329DA

BALL

steering gear arm, Serial Range: F-501-18997

1шт.

8

9497DAXA

ARM, steering gear, w/ball, 12329DA, Serial Range: F-501-18997

1шт.

114820

NUT, hex., 5/8-11NC

2шт.

179935

BOLT

SCREW, cap, hex-hd., 5/8-11NC x 3"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

65087D

WASHER, retaining, steering knuckle arm, Serial Range: F-501-18997

2шт.

10

9496DA

ARM, steering knuckle, R.H., Serial Range: F-501-18997

1шт.

11

353334R1

CLEVIS, tie rod (order 358362R91), Serial Range: F-501-18997

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

280136

NUT,3/8"-16, G8

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-5/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Alemite 1610) (drag link) (optional with 109461), F-501 to 18997

2шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Lincoln 5000) (drag link) (Optional with 119512), F-501 to 18997 1/8"-27 x .66 lg

2шт.

13

65090D

PIN, tie rod clevis, Serial Range: F-501-18997

1шт.

14

353420R11

ROD, tie, w/clevis, Serial Range: F-501-18997

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

15

10565DA

PIN, tie rod clevis, Serial Range: F-501-18997

1шт.

16

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (steering knuckle arm) (optional with 109461), F-501 to 18997

2шт.

16

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Steering knuckle arm) (Optional with 119512), F-501 to 18997 1/8"-27 x .66 lg

2шт.

17

9495DA

ARM, steering knuckle, L.H., Serial Range: F-501-18997

1шт.

18

358348R1

ARM, steering gear, Serial Range: F-18998-F-45370

1шт.

425-1110

NUT,5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18NF x 3"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

358352R91

END, tie rod, assembly (L.H. thd.) (Thompson products 18SV171-A), F-18998 to F-45370 (composed of (1) cover 358900R1 (1) end (order 358352R91) (NSS) (1) nut 358901R1 (1) pin 103386)

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

20

358901R1

SLOTTED NUT

tie rod end (Thompson products 10MN38), Serial Range: F-18998-F-45370

4шт.

21

358900R1

SEAL

COVER, dust (Thompson products 14DC58), Serial Range: F-18998-F-45370

4шт.

22

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Tie rod) (optional with 119512), F-18998 to F-45370 1/8"-27 x .66 lg

4шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (tie rod) (optional with 109461), F-18998 to F-45370

4шт.

23

358354R1

CLAMP, tie rod (Thompson products 18MN5), Serial Range: F-18998-F-45370

4шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

4шт.

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 1-7/8"

4шт.

24

358351R1

TUBE, tie rod (Thompson products 18RT375), F-18998 to F-45370 1.125" OD, 18.25" Length

2шт.

25

358353R91

END, tie rod, assembly (R.H. thd.) (Thompson products 18SV157-A-1), F-18998 to F-45370 (composed of (1) cover 358900R1, (1) end (order 358353R91) (NSS), (1) nut 358901R1, (1) pin 103386)

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

26

358347R91

TIE ROD, assembly (Thompson products 18T419), F-18998 to F-45370 (composed of (2) clamp 358354R1, (1) end 358352R91, (1) end 358353R91, (2) nut 103028, (2) screw 181434, (1) tube 358351R1, (2) washer 114608)

2шт.

27

65087D

WASHER, retaining, steering knuckle arm, Serial Range: F-18998-F-45370

2шт.

28

358349R1

ARM, steering knuckle, L.H., Serial Range: F-18998-F-45370

1шт.

29

358350R1

ARM, steering knuckle, R.H., Serial Range: F-18998-F-45370

1шт.

30

9517DB

SOCKET, ball, stay rod

1шт.

179957

SCREW, cap, hex-hd., 3/4-10NC x 3-1/4"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

Q1551

WASHER, plain, 25/32" I.D. x 1-1/8" O.D. x no. 10 ga.

1шт.

31

60762D

SHIM

stay rod ball socket cap

4шт.

32

60763DB

CYLINDER END CAP

CAP, stay rod ball socket

1шт.

181433

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 1-3/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

33

10546D

BALL

stay rod

1шт.

34

356603R11

ROD, stay, w/ball, 10546D (super "MV" only)

1шт.

34

356604R11

ROD, stay, w/ball, 10546D (super "MDV" only)

1шт.

128127

GUIDE

NUT, jam, hex., 1-1/2-12NF

2шт.

118029

WASHER, lock, special light, 1-1/2"

2шт.

35

9500D

SPACER, lower bolster, R.H.

1шт.

36

9499D

SPACER, lower bolster, L.H.

1шт.

37

356606R1

BOLSTER, lower

1шт.

280136

NUT,3/8"-16, G8

2шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-3/4"

2шт.

179961

SCREW, cap, hex-hd., 3/4-10NC x 4-1/4"

2шт.

16161R1

SCREW, cap, hex-hd., 3/4-10NC x 5-1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

38

12522D

BUMPER, rubber, front axle

2шт.

39

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (steering knuckle pivot) (optional with 109461)

4шт.

39

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Steering knuckle pivot) (Optional with 119512) 1/8"-27 x .66 lg

4шт.

40

36177D

FITTING, lubrication, angle, 45deg. (front axle pivot) (optional with Q3673)

1шт.

40

Q3673

FITTING

lubrication, angle, 45deg. (front axle pivot) (optional with 36177D)

1шт.

41

65084D

PIVOT, front axle

1шт.

42

353267R1

BUSHING, steering knuckle pivot

4шт.

43

356607R21

AXLE, front, w/four bushings, 353267R1

1шт.

44

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

thrust, steering knuckle pivot (Aetna #A-2182) (optional with 361034R91)

2шт.

44

361034R91

BEARING

thrust, steering knuckle pivot (Nice #R-3916) (optional with 357349R91)

2шт.

45

55412D

WASHER

WASHER, felt, steering knuckle pivot

2шт.

46

117996

WOODRUFF KEY,#24, 1/4" x 1 1/2", HT

KEY, Woodruff, no. 24, 1/4 x 1-1/2" (steering knuckle arm)

2шт.

47

65085DC

KNUCKLE, steering, assembly (composed of (1) knuckle 55238DE (NSS), (1) oil seal 48704D, (1) pin 65086D (NSS), (1) shield 48701D, (1) spacer 51901D, (1) washer 48702D)

2шт.

115781

NUT

hex., 1-14NF

2шт.

121326

WASHER,1"

LOCK, 1"

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

48704D

SEAL

OIL SEAL, front wheel (illustrated with front wheel)

2шт.

358362R91

1шт.

PACKAGE, field improvement, steering arms and tie rods, F-501 to 18997 (composed of (1) arm 358348R1, (1) arm 358349R1, (1) arm 358350R1, (4) fitting 109461, (2) key 117996, (2) nut 103030, (4) pin 103386, (2) screw 181488, (2) tie rod, assembly 358347R91, (2) washer 103325)

1шт.

48701D

SHIELD

dust, front wheel (illustrated with front wheel)

2шт.

51901D

SPACER

front wheel bearing (illustrated with front wheel)

2шт.

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

felt, front wheel (illustrated with front wheel)

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.
