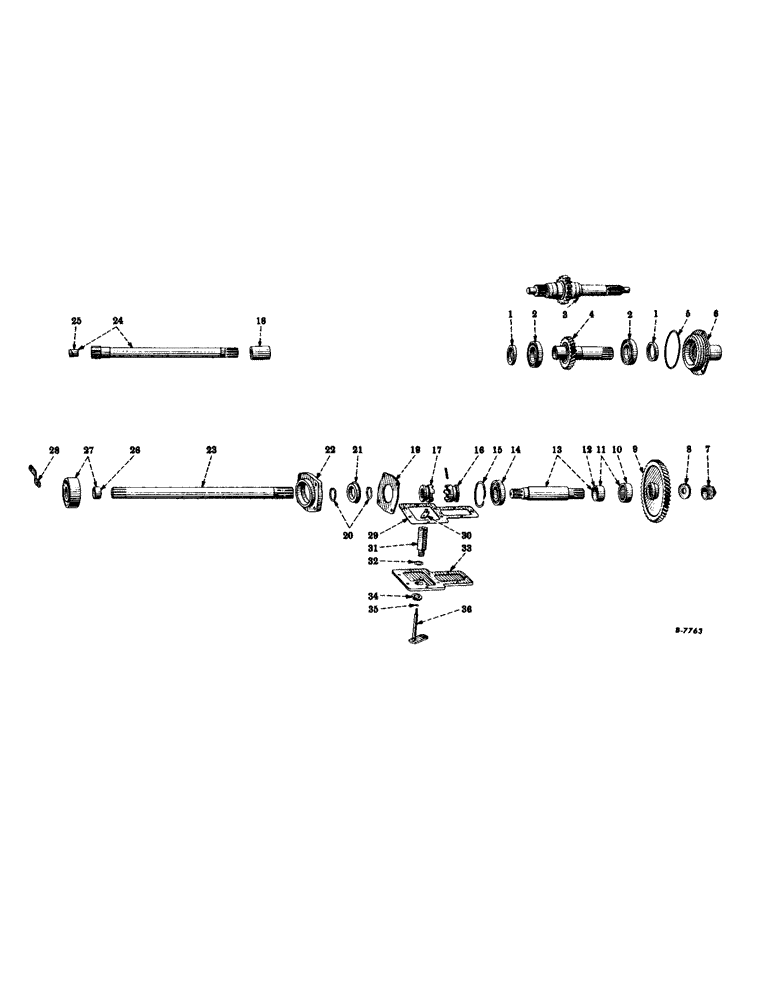

Запчасти Case IH SUPER M-TA (280) - CHASSIS, POWER TAKE-OFF DRIVE, FOR TRACTORS 60001 UP (12) - CHASSIS

1

359126R94

SEAL

OIL SEAL, power take-off drive gear

2шт.

2

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

power take-off drive gear (IH-C-250)

2шт.

3

360466R11

SHAFT, transmission and power take-off drive gear (20 teeth) w/coupling, 359911R1 (see clutch connections) (B only)

1шт.

4

360468R1

SHAFT

and gear (25 teeth), independent power take-off drive (A only)

1шт.

5

359156R1

RING

seal, power take-off drive shaft bearing cage

1шт.

6

359131R11

CAGE, bearing, power take-off drive shaft w/oil seal, 359126R91

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

187056

PLUG, pipe, sq-hd., 2"

1шт.

8

359972R1

WASHER

retaining, power take-off driven gear

1шт.

181428

BOLT,Hex, 1/2" - 20 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 1-1/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

360467R1

GEAR, power take-off driven (54 teeth) (B only)

1шт.

9

360469R1

GEAR, independent power take-off driven (47 teeth) (A only)

1шт.

10

359960R91

NEEDLE BEARING,Needle, 52.37mm ID x 64.31mm OD x 25.4mm W

needle, power take-off driven shaft, front (Torrington BH-3316)

1шт.

11

359958R91

BEARING

needle, power take-off driven shaft, front (bearing, 359960R91 and race, 359959R1) (Torrington HR-2916)

1шт.

12

359959R1

RACE

inner, power take-off driven shaft, front (Torrington IR-2916)

1шт.

13

359971R11

SHAFT

power take-off driven, front, w/race, 359959R1

1шт.

14

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

power take-off driven shaft, rear (IH-C-240)

1шт.

15

359138R1

RING

snap, power take-off driven shaft rear bearing

1шт.

16

359139R1

HUB, seasonal disconnect coupling (A only)

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, (A only) 1/4" x 1 3/4", Slotted

1шт.

17

359140R1

SLEEVE, seasonal disconnect coupling (A only)

1шт.

18

359912R1

COUPLING

power take-off driven shaft (B only)

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, (B only) 1/4" x 1 3/4", Slotted

1шт.

19

359142R1

RETAINER, power take-off extension shaft front bearing

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

359141R1

RING, SNAP

power take-off extension shaft front bearing

2шт.

21

359703R91

BEARING

ball, power take-off extension shaft, front (New Departure 473L07) (optional with 360450R91)

1шт.

21

360450R91

BALL BEARING,62 mm ID x 35 mm OD x 14 mm

ball, power take-off extension shaft, front (Fafnir 9107KDG) (optional with 359703R91)

1шт.

22

359143R1

CAGE, power take-off extension shaft front bearing

1шт.

23

359146R1

SHAFT, independent power take-off extension (A only)

1шт.

24

359913R11

SHAFT, power take-off extension, w/bushing, 43328D (B only)

1шт.

25

43328D

BUSHING,22.67mm ID x 26.36mm OD x 33.27mm L

BUSHING, power take-off extension shaft (B only)

1шт.

26

359145R1

BUSHING

extension shaft rear bearing (1.313" I.D., 1.437" O.D., - 740" long) (A only)

1шт.

26

359915R1

BUSHING, extension shaft rear bearing (1.501" I.D., 1.625" O.D., .740" long) (B only)

1шт.

27

359144R11

CARRIER, independent power take-off extensions shaft rear bearing, w/bushing, 359145R1 (A only)

1шт.

27

359914R11

CARRIER, power take-off extension shaft rear bearing, w/bushing, 359915R1 (B only)

1шт.

28

359147R1

STRAP, power take-off extension shaft rear bearing

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

359149R1

GASKET

seasonal disconnect or bottom cover

1шт.

30

359154R11

BAR

ARM, seasonal disconnect coupling shifter (A only)

1шт.

31

359150R1

BEARING, seasonal disconnect coupling shifter shaft (A only)

1шт.

138510

LOCK WASHER,Ext Tooth, 7/8"

WASHER, lock, external tooth, 7/8" (A only)

1шт.

32

359157R1

RING

seal, shifter bearing (A only)

1шт.

33

COVER, clutch housing rear or seasonal disconnect (see clutch connections)

1шт.

34

359151R1

NUT, lock, seasonal disconnect shifter shaft bearing (A only)

1шт.

35

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Seal, seasonal disconnect lever shaft (A only)

1шт.

36

359152R11

BAR

LEVER, seasonal disconnect coupling shifter, w/shaft (A only)

1шт.

103027

NUT, hex., 7/16-20NF (A only)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8" (A only)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A only) 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A only) 7/16"

1шт.
