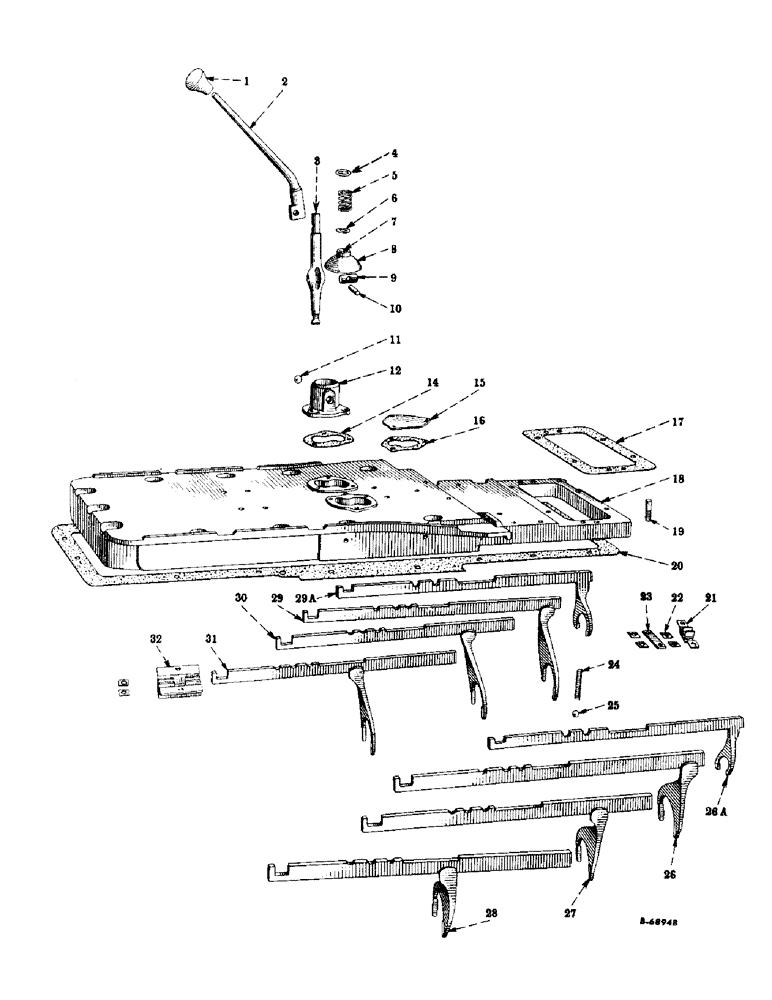

Запчасти Case IH SUPER M-TA (270) - CHASSIS, REVERSE OPERATION ATTACHMENT (12) - CHASSIS

1

53717DA

BUTTON

BALL, gear shift lever

1шт.

2

355177R11

HANDLE, gear shift lever, F-501 to F-28174 (A only)

1шт.

2

359238R91

HANDLE, gear shift lever, w/ball, 53717DA, F-28175 up, L-504802 to L-512541 (A only)

1шт.

103027

NUT, hex., 7/16-20 NF (A only)

1шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

cap, hex-hd., 7/16-20NF x 1-3/4" (A only)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A only) 7/16"

1шт.

3

350298R1

END, gear shift lever (A only)

1шт.

4

1657E

STOP

gear shift lever spring, upper (A only)

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), (A only) 3/16" x 1 1/4"

1шт.

5

29547D

SPRING

gear shift lever (A only)

1шт.

6

1657E

STOP

gear shift lever spring, lower (A only)

1шт.

7

20887DA

BUSHING, gear shift lever swivel housing shield (used with shield, 42496DXA) (A only)

1шт.

8

42496DXA

SHIELD, gear shift swivel housing, w/bushing, 20887DA (will work for 55938D) (optional with 355889R1) (A only)

1шт.

8

355889R1

SHIELD

gear shift swivel housing (will work for 55938D) (optional with 42496DXA) (A only)

1шт.

9

40465DA

SHAFT

gear shift lever (large) (A only)

1шт.

10

358003R1

SHAFT, gear shift lever (small) (A only)

1шт.

11

172529

PLUG

gear shift lever swivel housing hole (A only)

2шт.

12

355176R1

HOUSING, swivel, gear shift (A only)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(A only) Hex, 3/8"-16 x 1", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A only) 3/8"

3шт.

14

355173R1

GASKET, gear shift swivel housing

1шт.

15

355175R1

COVER, gear shift opening (A only)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1" (A only)

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A only) 3/8"

3шт.

16

355173R1

GASKET, gear shift opening cover (A only)

1шт.

17

49054DA

GASKET, pulley drive opening cover

1шт.

18

355184R31

COVER, rear frame, w/stud, 355174R1 (A only)

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (A only) 1/8" x 1 1/4"

1шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3" (A only)

11шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/4" (A only)

2шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4" (A only)

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A only) 7/16"

15шт.

19

355174R1

STUD, pulley drive housing (A only)

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF (A only)

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A only) 1/2"

1шт.

20

358843R1

GASKET

rear frame cover (will work for 49056DA)

1шт.

21

48544D

GUIDE

gear shifter rail, front, F-501 to F-52627, L-500001 to L-512541, (A only)

1шт.

Not part of attachment.

1шт.

21

358888R1

GUIDE, gear shifter rail, front, 60001 up (A only)

2шт.

Not part of attachment.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(A only) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

Not part of attachment.

1шт.

22

59473D

LOCK

gear shifter rail guide bolt

6шт.

23

52092DA

PLATE, stop gear shifter rail, F-501 to F-52627, L-500001 to L-512541 (A only)

1шт.

Not part of attachment.

1шт.

23

358887R1

PLATE, stop gear shifter rail, 60001 up (A only)

1шт.

Not part of attachment.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(A only) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

Not part of attachment.

1шт.

24

41058DA

SPRING

gear shifter poppet (A only)

4шт.

Not part of attachment.

1шт.

25

13722D

BALL

POPPET, gear shifter (optional with D2616) (A only)

4шт.

Not part of attachment.

1шт.

25

D2616

BALL

POPPET, gear shifter (optional with 13722D) (A only)

4шт.

Not part of attachment.

1шт.

26

357404R92

RAIL AND FORK, shifter, fourth and fifth speed (reverse operation), F-501 to F-52627, Serial Range: L-500001-L-512541

1шт.

26a

360281R91

RAIL AND FORK, shifter, fourth and fifth speed (reverse operation), 60001 up

1шт.

27

357402R91

RAIL AND FORK, shifter, second and third speed (reverse operation), F-501 to F-52627, Serial Range: L-500001-L-512541

1шт.

27

360279R91

RAIL AND FORK, shifter, second and third speed (reverse operation), 60001 up

1шт.

28

355180R11

RAIL AND FORK, shifter, first and reverse speed (reverse operation), F-501 to F-52627, Serial Range: L-500001-F-512541

1шт.

28

360278R91

RAIL AND FORK, shifter, first and reverse speed (reverse operation), 60001 up

1шт.

29

357403R21

RAIL AND FORK, shifter, fourth and fifth speed (forward operation), F-501 to F-52627, L-500001 to F-51541 (A only)

1шт.

29a

360277R11

RAIL

AND FORK, shifter, fourth and fifth speed (forward operation), 60001 up (A only)

1шт.

30

357401R11

RAIL AND FORK, shifter, second and third speed (forward operation), F-501 to F-52627, L-500001 to L-512541 (A only)

1шт.

30

360276R11

RAIL AND FORK, shifter, second and third speed (forward operation), 60001 up (A only)

1шт.

31

355181R91

RAIL AND FORK, shifter, first and reverse speed (forward operation), F-501 to F-52627, L-500001 to F-512541 (A only)

1шт.

31

360275R11

RAIL AND FORK, shifter, first and reverse speed (forward operation), 60001 up (A only)

1шт.

32

355739R91

GUIDE

gear shift rail, rear (A only)

1шт.

Not part of attachment.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(A only) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

Not part of attachment.

1шт.

58839D

BOWL

sediment, fuel strainer (illustrated with fuel strainer)

1шт.

48951D

COVER, power take-off (sheet steel) (illustrated with rear frame) F-501 to F-52627, Serial Range: L-500001-F-512541

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

365131R1

COVER, power take-off (gray iron) (illustrated with rear frame), F-501 to F-52627, Serial Range: L-500001-F-512541

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

358841R11

COVER, power take-off opening, w/ring, 358842R1 (illustrated with rear frame), 60001 up

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex-hd., 1/2-13 NC x 1-1/4"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

66584D

FITTING

lubrication, straight, drive type, 3/16" (illustrated with clutch and brake pedals), F-201 to F-52627, L-500001 to L-512541 (A only)

2шт.

48952D

GASKET, power take-off cover (illustrated with rear frame), F-501 to F-52627, Serial Range: L-500001-F-512541

1шт.

47670D

GASKET, rear axle carrier (illustrated with rear axle)

2шт.

355888R1

GASKET

fuel strainer bowl (illustrated with fuel strainer)

1шт.

357103R21

PEDAL, brake, L.H. assembly (will work for 357293R91) (illustrated with brakes), F-501 to F-52627, L-500001 to L-512541 (composed of (1) pedal 357103R2 (NSS), (1) plate 43751DB, (1) rivet 104087, (1) spring 51293D) (A only)

1шт.

114773

NUT, hex., 7/16-14NC (A only)

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

rd-hd., 1/4 x 1-1/4" (A only)

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4" (A only)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A only) 7/16"

1шт.

357104R31

PEDAL, brake, R.H. w/fitting, 66584D (will work for 357294R92) (illustrated with brakes), F-501 to F-52627, L-500001 to L-512541 (A only)

1шт.

357039R21

PEDAL, clutch, w/fitting, 66584D (will work for 357295R91) (illustrated with clutch connections), F-501 to F-52627, L-500001 to L-512541 (A only)

1шт.

43751DB

LATCH, PEDALS

PLATE, lock, brake pedal (illustrated with brakes), F-501 to F-52627, L-500001 to L-512541 (A only)

1шт.

10481C

RING,0.23" Thk x 5-23/32" ID

seal, bull pinion shaft bearing cage (optional with 69366D) (illustrated with rear axle)

2шт.

69366D

SEAL,0.23" Thk x 5-23/32" ID

RING, seal, bull pinion shaft bearing cage (optional with 10481C) (illustrated with rear axle)

2шт.

358842R1

RING

seal, power take-off opening cover (illustrated with rear frame), 60001 up

1шт.

51293D

SPRING

tension, brake pedal lock plate, F-501 to F-52627, L-500001 to L-512541 (A only)

1шт.
