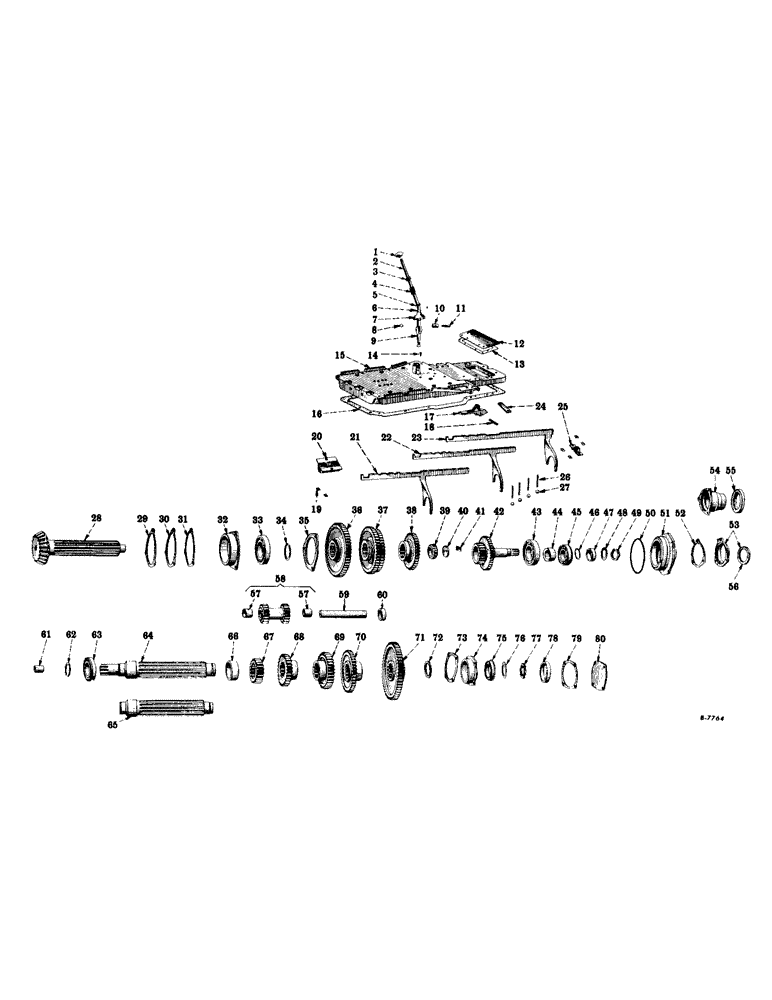

Запчасти Case IH SUPER M-TA (264) - CHASSIS, TRANSMISSION, BALL BEARING, 5 SPEEDS FORWARD, ONE REVERSE, FOR TRACTORS 60001 UP (12) - CHASSIS

Артикул

Название

Примечание

Количество

1

53717DA

BUTTON

KNOB, gear shift lever

1шт.

2

358267R91

LEVER, gear shift

1шт.

2

359238R91

HANDLE, gear shift lever, w/knob, 53717DA (for cotton picker tractors)

1шт.

103027

NUT, hex., 7/16-20NF

1шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

cap, hex-hd., 7/16-20NF x 1-3/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

1657E

STOP

gear shift lever spring, upper

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

4

29547D

SPRING

gear shift lever

1шт.

5

1657E

STOP

gear shift lever spring, lower

1шт.

6

20887DA

BUSHING, gear shift lever swivel housing shield (used with 42496DXA)

1шт.

7

42496DXA

SHIELD, gear shift lever swivel housing, w/bushing, 20887DA (optional with 355889R1)

1шт.

7

355889R1

SHIELD

gear shift lever swivel housing (optional with 42496DXA)

1шт.

8

172529

PLUG

expansion, 5/8" (gear shift lever swivel shaft hole)

2шт.

9

350298R1

END, gear shift lever (for cotton picker tractors)

1шт.

10

40465DA

SHAFT

gear shift swivel, large

1шт.

11

357003R1

AXLE PIN,11.11mm OD x 57.15mm L

SHAFT, gear shift swivel, small

1шт.

12

49053DB

COVER

belt pulley drive opening (sheet steel) (optional with 365128R1)

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-1/8"

2шт.

179890

LATCH

SCREW, cap, hex-hd., 1/2-13NC x 2-1/4"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

12

365128R1

COVER, belt pulley drive opening (gray iron) (optional with 49053DB)

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 1/2-13NC x 1-3/8"

2шт.

179891

SHAFT

SCREW, cap, hex-hd., 1/2-13NC x 2-1/2"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

13

49054DA

GASKET, pulley drive opening cover

1шт.

14

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Used on tractors with pneumatic tires to plug fifth speed lockout screw hole) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

49637D

SCREW, fifth speed lockout (used on tractors equipped with steel wheels)

1шт.

15

8550DJX

COVER, rear frame, w/two plugs, 172529 and one plug, 106645

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

106645

PLUG, pipe, csk-hd., 1-1/2"

1шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/4"

2шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

2шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3"

8шт.

11 used on tractors w/o starting and lighting.

1шт.

16247R1

SCREW, cap, hex-hd., 7/16-14NC x 4-1/2" (used with battery ground strap)

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

16

358843R1

GASKET

rear frame cover

1шт.

17

359989R91

PAWL

brake pedal

1шт.

18

49209D

SHAFT

brake pedal pawl

1шт.

19

59473D

LOCK

shifter rail guide bolt

6шт.

20

355739R91

GUIDE

gear shifter rail, rear

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

21

358881R11

FORK AND RAIL, first and reverse speed shifter

1шт.

22

358883R11

FORK AND RAIL, second and third speed shifter

1шт.

23

358885R11

FORK AND RAIL, fourth and fifth speed shifter

1шт.

24

358887R1

PLATE, stop, gear shifter rail

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

25

358888R91

GUIDE

gear shifter rail, front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

26

41058DA

SPRING

gear shifter poppet

4шт.

27

D2616

BALL

POPPET, gear shifter (optional with 13722D)

4шт.

27

13722D

BALL

POPPET, gear shifter (optional with D2616)

4шт.

28

358861R1

SHAFT

transmission main, w/pinion (19 teeth) (super "M" and "MD")

1шт.

28

358897R1

SHAFT, transmission main, w/pinion (19 teeth) (super "MV" and "MDV")

1шт.

29

48725D

SHIM, transmission main shaft bearing cage, light (.007")

1шт.

30

48724D

SHIM, transmission main shaft bearing cage, medium (.015")

1шт.

31

48723D

SHIM, transmission main shaft bearing cage, heavy (.030")

1шт.

32

8214DA

CAGE, transmission main shaft rear bearing (super "MV" and "MDV")

1шт.

32

358862R1

CAGE, transmission main shaft rear bearing (super "M" and "MD")

1шт.

33

ST218

BEARING

ball, transmission main shaft, rear (IH-L-265)

1шт.

34

357035R1

RING

snap, transmission main shaft rear bearing

1шт.

35

358863R1

RETAINER, transmission main shaft rear bearing (super "M" and "MD")

1шт.

35

358899R1

RETAINER, transmission main shaft rear bearing (super "MV" and "MDV")

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

36

359465R1

GEAR, sliding, first and reverse speed (52 teeth)

1шт.

37

358865R1

GEAR

sliding, second and third speed (45 and 41 teeth)

1шт.

38

358866R1

GEAR, sliding, fourth and fifth speed (35 and 20 teeth)

1шт.

39

359173R91

BEARING, ROLLER, CYL,34.99mm ID x 62.43mm OD x 27.5mm W

roller, transmission main shaft, front (Hyatt BU-5207)

1шт.

40

358867R1

WASHER, transmission main shaft pilot bearing retainer

1шт.

41

358868R1

PLATE, lock, transmission main shaft pilot bearing retainer screw

1шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

2шт.

42

358869R1

SHAFT, transmission driving (20 and 39 teeth)

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

43

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

BEARING, ball, transmission driving shaft, rear (IH-L-350)

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

44

358872R1

SPACER, driving shaft bearing

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

45

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball, transmission driving shaft, front (IH-GL-340)

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

46

358873R1

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

RING, seal, transmission driving shaft front bearing spacer

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

47

358874R1

BUSHING

SPACER, transmission driving shaft front bearing

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

48

358875R1

WASHER

transmission shaft front bearing nut

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

49

358876R1

LOCK NUT

lock, transmission driving shaft front bearing

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

50

358018R1

RING, seal, transmission driving shaft bearing cage

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

51

359017R1

CAGE, transmission driving shaft bearing

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

52

356679R1

GASKET

transmission driving shaft front bearing retainer

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

53

359975R91

RETAINER

transmission driving shaft front bearing, w/oil seal, 56630H

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

Not used on tractors equipped with independent power take-off.

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

54

360007R11

HUB

RETAINER, transmission driving shaft front bearing, w/oil seal, 56630H (for tractors equipped with independent power take-off)

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

55

361248R91

SEAL

OIL SEAL, transmission drive shaft (for tractors equipped with independent power take-off)

1шт.

56

56630H

SEAL

OIL SEAL, transmission driving shaft (optional with 360693R91 and 361049R91)

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

56

360693R91

SEAL

OIL SEAL, transmission driving shaft (optional with 56630H and 361049R91)

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

56

361049R91

SEAL

OIL SEAL, transmission driving shaft (optional with 56630H and 360693R91)

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

57

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

reverse idler gear

2шт.

58

358880R11

GEAR, reverse idler (17 and 17 teeth) w/two bushings, 48841D

1шт.

59

358879R1

SHAFT, reverse idler

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NC x 3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

60

41047D

PLUG, reverse idler shaft cup (in rear frame)

1шт.

61

43328D

BUSHING,22.67mm ID x 26.36mm OD x 33.27mm L

BUSHING, power take-off shaft

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

Not used on tractors equipped with independent power take-off.

1шт.

62

358236R1

RING

snap, countershaft rear bearing

1шт.

63

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

countershaft, rear (IH-C-250)

1шт.

64

358844R11

COUNTERSHAFT, transmission, assembly (composed of (1) bushing 43328D, (1) pin 358846R1 (NSS), (1) shaft 358844R1 (NSS), (1) stub shaft 358845R1 (NSS)

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

Not used on tractors equipped with independent power take-off.

1шт.

65

358844R1

COUNTERSHAFT, transmission (for tractors equipped with independent power take-off or torque amplifier)

1шт.

66

358855R1

SPACER, first speed driving gear

1шт.

67

358856R1

GEAR, driving, first speed (21 teeth)

1шт.

68

358857R1

GEAR

driving, second speed (28 teeth)

1шт.

69

358858R1

GEAR

driving, third speed (32 teeth) (optional with 359466R1)

1шт.

69

359466R1

GEAR, driving, third speed (32 teeth) (optional with 358858R1)

1шт.

70

358859R1

GEAR, driving, fourth speed (38 teeth) (optional with 359467R1)

1шт.

70

359467R1

GEAR, driving, fourth speed (38 teeth) (optional with 358859R1)

1шт.

71

358860R1

GEAR, constant mesh (54 teeth)

1шт.

72

358847R1

SPACER, constant mesh gear

1шт.

73

358850R1

GASKET

countershaft front bearing cage

1шт.

74

358849R1

CAGE, countershaft front bearing

1шт.

75

359172R91

BEARING

ball, countershaft, front (New Departure 43L10) (optional with 360458R91)

1шт.

75

360458R91

BEARING

ball, countershaft, front (Fafnir 9110KG) (optional with 359172R91)

1шт.

76

358852R1

WASHER

LOCK, countershaft front bearing nut

1шт.

77

358853R1

BEARING LOCK NUT

countershaft front bearing

1шт.

78

358848R1

SPACER, countershaft front bearing

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

Not used on tractors equipped with independent power take-off.

1шт.

79

358850R1

GASKET

countershaft front bearing cage

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

Not used on tractors equipped with independent power take-off.

1шт.

80

358851R1

CAP, countershaft front bearing

1шт.

Not used on tractors equipped with torque amplifier.

1шт.

Not used on tractors equipped with independent power take-off.

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Выбрано товаров: 155
