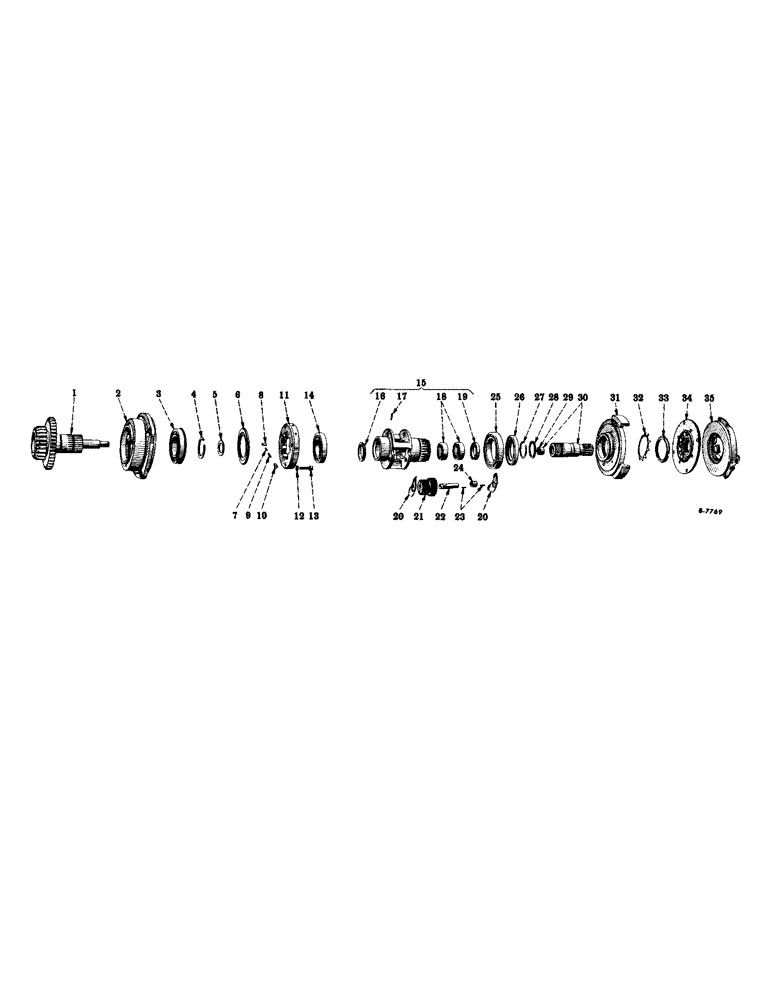

Запчасти Case IH SUPER M-TA (252) - CHASSIS, TORQUE AMPLIFIER, FOR TRACTORS 60001 UP (12) - CHASSIS

1

361288R1

SHAFT, transmission drive and secondary sun gear (20, 39 and 28 teeth)

1шт.

2

360230R1

GAGE, transmission drive shaft bearing

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

ST343

BEARING

ball, transmission drive shaft, rear (IH-GL-255)

1шт.

4

358059R1

SNAP RING

RING, snap, transmission drive shaft rear bearing

1шт.

5

359891R1

THRUST WASHER,29.21mm ID x 45.97mm OD x 2.39mm Thk

thrust, driving primary and driven secondary sun gear

1шт.

6

359880R1

THRUST WASHER

thrust, overrunning clutch roller

1шт.

7

361287R1

PIN,4.37mm OD x 25.4mm L

overrunning clutch

8шт.

8

359885R1

ROLLER, overrunning clutch

8шт.

9

361286R1

SPRING

overrunning clutch

8шт.

10

361285R1

PLUG

overrunning clutch

8шт.

11

361284R11

RAMP

bearing carrier and overrunning clutch, assembly (composed of (8) pin 361287R1, (8) plug 361285R1, (1) ramp 361284R1 (NSS), (8) spring 361286R1)

1шт.

12

360232R1

RING

retaining, bearing carrier screw

4шт.

13

360231R1

SCREW, bearing carrier

4шт.

14

ST565

BEARING

ball planet carrier, rear (IH-C-701)

1шт.

15

361281R11

SUN GEAR

CARRIER, planet, assembly (composed of (2) bearing 359950R91, (1) carrier 361281R1 (NSS), (1) oil seal 359951R91, (1) spacer 359882R1)

1шт.

16

359882R1

WASHER

SPACER, planet carrier

1шт.

17

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, (Planet gear shaft lock) 1/8" x 13/16", Slotted

3шт.

18

359950R91

NEEDLE BEARING

BEARING, roller, planet carrier (Torrington B-2812)

2шт.

19

359952R92

OIL SEAL

OIL SEAL, planet carrier (Replaces 359951R91, 359951r92)

1шт.

20

359890R1

SUPPORT

PLATE, thrust, planet gear

6шт.

21

359887R1

GEAR

planet (23 and 28 teeth)

3шт.

22

361282R1

SHAFT

planet gear

3шт.

23

359954R1

ROLLER

needle, planet gear bearing

138шт.

24

359888R1

SPACER

planet gear bearing

3шт.

25

359956R91

BEARING

ball, planet carrier (New Departure 3L-15)

1шт.

26

361248R91

SEAL

OIL SEAL, transmission drive shaft

1шт.

27

359894R1

RING, SNAP

primary sun gear washer

1шт.

28

359893R1

THRUST WASHER,43.66mm ID x 57.15mm OD x 2.39mm Thk

thrust, primary sun gear

1шт.

29

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

BEARING, roller, primary sun gear (Torrington B-1210)

1шт.

30

361283R11

SUN GEAR

GEAR, primary sun (23 teeth) w/bearing, 359955R91

1шт.

31

359895R1

CARRIER

torque amplifier clutch

1шт.

32

359896R1

SPARE PART

LOCK, torque amplifier clutch carrier nut

1шт.

33

359897R1

NUT

torque amplifer clutch carrier

1шт.

34

359944R91

CLUTCH

DISC, driven, clutch, assembly (for components see list of parts under "details of torque amplifier 7" clutch")

1шт.

35

360215R91

CLUTCH PLATE

PLATE, pressure, clutch, assembly (for components see list of parts under "details of torque amplifier 7" clutch")

1шт.

359899R1

BOLT,1/4" - 20 x 9/16", Gr 2

SCREW, clutch back plate

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.
