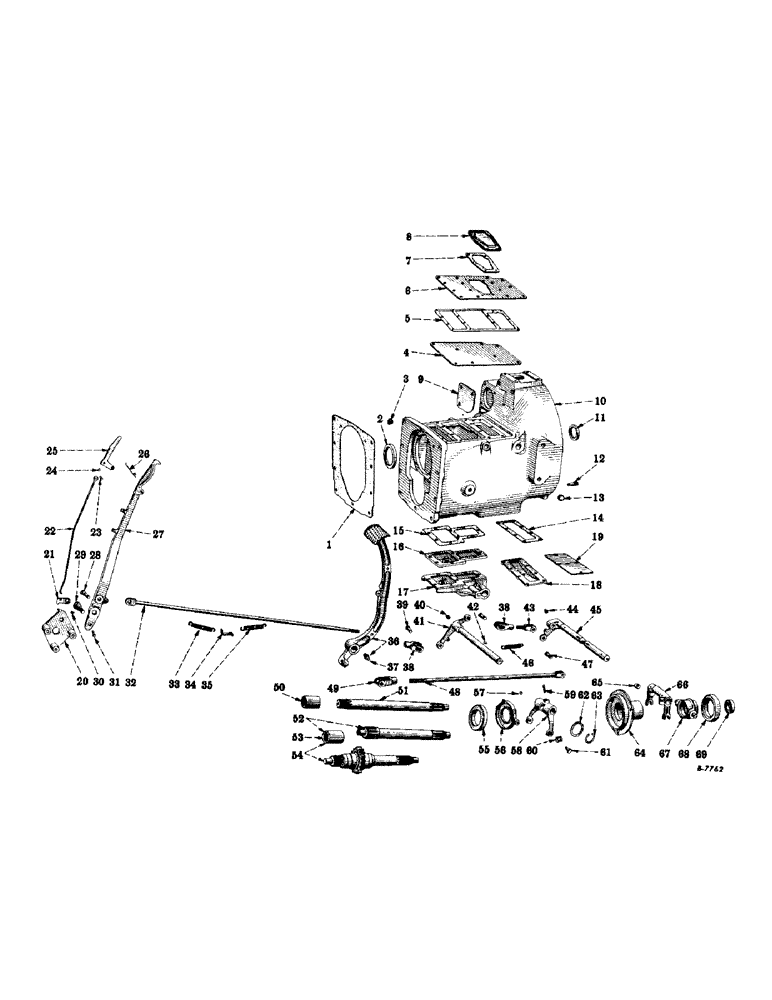

Запчасти Case IH SUPER M-TA (246) - CHASSIS, CLUTCH CONNECTIONS AND TORQUE AMPLIFIER OPERATING HANDLE, FOR TRACTORS 60001 UP (12) - CHASSIS

1

359127R1

GASKET

clutch housing

1шт.

For tractors equipped with independent power take-off or torque amplifier.

1шт.

2

361248R91

SEAL

OIL SEAL, transmission drive shaft

1шт.

For tractors equipped with independent power take-off or torque amplifier.

1шт.

3

64881D

PLUG, clutch housing dust seal

6шт.

4

359009R1

COVER, clutch housing top (not used on tractors equipped with independent power take-off or torque amplifier)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

1шт.

5

361280R4

GASKET

GASKET, clutch housing top cover

1шт.

For tractors equipped with independent power take-off or torque amplifier.

1шт.

6

361268R1

COVER, clutch housing top

1шт.

For tractors equipped with independent power take-off or torque amplifier.

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

15шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

15шт.

7

361258R1

GASKET

clutch housing top cover cap

1шт.

For tractors equipped with independent power take-off or torque amplifier.

1шт.

8

361188R1

CAP, clutch housing top cover

1шт.

For tractors equipped with independent power take-off or torque amplifier.

1шт.

181353

SCREW, cap, hex-hd., 3/8-24NF x 7/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

359716R1

COVER, cranking motor opening (for tractors not equipped with starting and lighting)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

359026R11

HOUSING, clutch, w/six plugs, 64881D and two plugs, 359011R1

1шт.

10

359125R91

HOUSING, clutch, assembly (for tractors equipped with independent power take-off) (composed of (1) bearing 359960R91, (1) housing 359026R1 (NSS), (1) oil seal 361248R91, (1) oil seal 359126R1, (6) plug 64881D, (2) plug 359011R1)

1шт.

10

359877R91

HOUSING, clutch, assembly (for tractors equipped with torque amplifier) (composed of (1) bearing 359960R91, (1) housing 359026R1 (NSS), (1) oil seal 361248R91, (1) oil seal 359126R91, (6) plug 64881D)

1шт.

179932

SCREW,Hex, 5/18" - 11 x 2 1/4"

cap, hex-hd., 5/8-11NC x 2-1/4"

8шт.

179933

SCREW, cap, hex-hd., 5/8-11NC x 2-1/2"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

9шт.

11

359126R94

SEAL

OIL SEAL, power take-off drive gear

1шт.

For tractors equipped with independent power take-off or torque amplifier.

1шт.

12

45979D

STUD

DOWEL, engine rear support

2шт.

13

359011R1

PLUG

cup (for sealing torque amplifier clutch release shaft openings)

2шт.

14

359129R1

GASKET

power take-off driven gear cover

1шт.

For tractors equipped with independent power take-off or torque amplifier.

1шт.

15

359149R1

GASKET

seasonal disconnect or bottom cover

1шт.

For tractors equipped with independent power take-off or torque amplifier.

1шт.

16

359012R1

COVER, bottom, clutch housing, rear

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

9шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

16

359148R1

COVER, seasonal disconnect (for tractors equipped with independent power take-off or torque amplifier with independent power take-off drive)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

9шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

17

359460R1

COVER, clutch housing, rear, w/seasonal disconnect hole and implement bracket (for implement attachments)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

9шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

18

359010R1

COVER, power take-off drive compartment

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

18

359128R1

COVER, power take-off driven gear

1шт.

For tractors equipped with independent power take-off or torque amplifier.

1шт.

143162

PLUG

pipe, sq-socket, 3/8"

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

19

359013R1

COVER, bottom, clutch compartment

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

359916R1

RATCHET, torque amplifier operating handle

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

21

359925R1

PAWL, torque amplifier operating handle

1шт.

22

359923R11

ROD, torque amplifier operating handle activating pawl

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

23

359922R1

PIN

torque amplifier operating handle pawl grip

2шт.

24

148147

COTTER PIN,Hairpin, 3/16"

SPRING, retainer, torque amplifier operating handle pawl grip

2шт.

25

359921R1

GRIP, torque amplifier operating handle pawl control

1шт.

26

359920R1

SPRING

torque amplifier operating handle pawl control grip

1шт.

27

359917R11

HANDLE, torque amplifier operating, assembly (composed of (1) fitting Q5141, (1) handle 359917R1 (NSS), (1) pin 141283, (1) pin 359918R1)

1шт.

28

359918R1

PIN, torque amplifier clutch control rod

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

29

359919R1

BOLT, torque amplifier operating handle pivot

1шт.

103029

NUT,9/16"-18, G5

hex., 9/16-18NF

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

13611VA

WASHER

plain, 25/32" I.D. x 1-3/8" O.D. x no. 11 ga.

1шт.

30

Q5141

FITTING

lubrication, straight, drive type, 3/16" (torque amplifier operating handle) (optional with 443566)

1шт.

30

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (torque amplifier operating handle) (optional with Q5141)

1шт.

31

141283

SUPPORT,1/2" x 1"

PIN, dowel, 1/2 x 1" (torque amplifier operating handle stop pin)

1шт.

32

359926R11

ROD, torque amplifier clutch control

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF

1шт.

33

357164R1

SPRING

return, torque amplifier operating handle

1шт.

34

359025R1

ANCHOR, return spring

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

357164R1

SPRING

clutch pedal return

1шт.

36

359023R11

PEDAL, clutch, w/fitting, 66584D

1шт.

114540

PULLEY

SCREW, set, sq-hd., 1/2-13NC x 2-1/4"

1шт.

218440

SPARE PART

NUT, jam, hex., 1/2-13NC

1шт.

37

66584D

FITTING

lubrication, straight, drive type, 3/16"

1шт.

38

359928R1

YOKE, torque amplifier clutch operating

2шт.

39

359929R1

PIN

torque amplifier release lever

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

615079R1

WASHER

plain, 33/64" I.D. x 15/16" O.D. x no. 14 ga.

4шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Torque amplifer clutch release shaft) (Optional with 119512) 1/8"-27 x .66 lg

2шт.

40

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (torque amplifier clutch release shaft) (optional with 109461)

2шт.

41

359905R11

SHAFT, torque amplifier clutch release, w/lever

1шт.

42

NLS

NO LONGER SERVICED

KEY, Woodruff no. 8, 5/32 x 3/4" (torque amplifier clutch release shaft)

2шт.

43

359930R1

CLEVIS

engine clutch to torque amplifier clutch control

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

114787

AXLE PIN

PIN, rod end, 1/2 x 1-27/64"

1шт.

44

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Clutch release shaft) (Optional with 119512) 1/8"-27 x .66 lg

2шт.

44

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (clutch release shaft) (optional with 109461)

2шт.

45

359019R11

SHAFT, clutch release, w/lever

1шт.

46

61084D

SPRING

torque amplifier clutch release shaft lever

1шт.

47

352131R1

PIN

clutch operating rod yoke

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

48

359024R11

ROD, clutch operating, w/yoke

1шт.

218442

NUT, jam, hex., 5/8-11NC

1шт.

49

6692D

YOKE, clutch operating rod adjustable (optional with 350151R1)

1шт.

49

350151R1

YOKE, clutch operating rod adjustable (optional with 6692D)

1шт.

4226S

PIN

std-hd., drilled, 1/2 x 1-15/16"

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

50

358878R1

SLEEVE

COUPLING, transmission driving shaft

1шт.

51

358877R1

SHAFT

clutch

1шт.

52

359974R11

SHAFT, clutch w/sleeve 359911R1 (for tractors equipped with torque amplifier with independent power take-off drive)

1шт.

53

359911R1

SLEEVE

clutch shaft (for tractors equipped with torque amplifier)

1шт.

54

360466R1

SHAFT, transmission and power take-off drive gear (20 teeth) w/sleeve 359911R1 (for tractors equipped with torque amplifier with transmission driven power take-off drive)

1шт.

55

359957R91

BEARING

torque amplifier clutch release (Aetna #A-893-1)

1шт.

56

359900R1

RING

SLEEVE, torque amplifier clutch release

1шт.

57

359901R1

SPRING

torque amplifier clutch release sleeve

2шт.

58

359902R1

FORK, torque amplifier clutch release

1шт.

59

359906R1

SCREW

lock, torque amplifer clutch release fork

1шт.

218438

NUT, jam, hex., 3/8-16NC

1шт.

60

359903R1

LOCK, pivot, torque amplifier clutch release sleeve

2шт.

61

359904R1

PIVOT

torque amplifier clutch release sleeve

2шт.

62

359908R1

THRUST WASHER

torque amplifier clutch release shaft

2шт.

63

359909R1

RING

RETAINER, torque amplifier clutch release shaft

2шт.

64

359021R1

CARRIER, clutch release sleeve (optional with 359441R1) (not used on tractors equipped with independent power take-off or torque amplifier)

1шт.

64

359441R1

CARRIER, clutch release sleeve (optional with 359021R1) (not used on tractors equipped with independent power take-off or torque amplifier)

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

65

18465D

WASHER

KEY, clutch release fork

2шт.

66

5800DB

FORK

clutch release

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

67

359022R1

SLEEVE

clutch release

1шт.

68

69789C91

BEARING ASSY

BEARING, ball, clutch release (Aetna A-1657-1) (Replaces 359032R91, 359032R92)

1шт.

69

ST544

BEARING, BALL,25mm ID x 52mm OD x 15mm W

BEARING, clutch pilot (IH-PPC-225)

1шт.

359461R1

PLUG, implement and seasonal disconnect cover bracket (used to plug seasonal disconnect hole in cover, 359460R1 on tractors not equipped with independent power take-off)

1шт.

219754

BACK-UP RING

jam, hex., 7/8-14NF

1шт.

138510

LOCK WASHER,Ext Tooth, 7/8"

WASHER, lock, external-tooth, 7/8"

1шт.

352024R2

O-RING,0.551" ID x 0.07" Width

RING, seal, implement and seasonal disconnect cover bracket plug (used with 359461R1 plug)

1шт.
